Mounting Brackets
Art.-No. 857-40364 | MB-FDN-PA001 |  Details

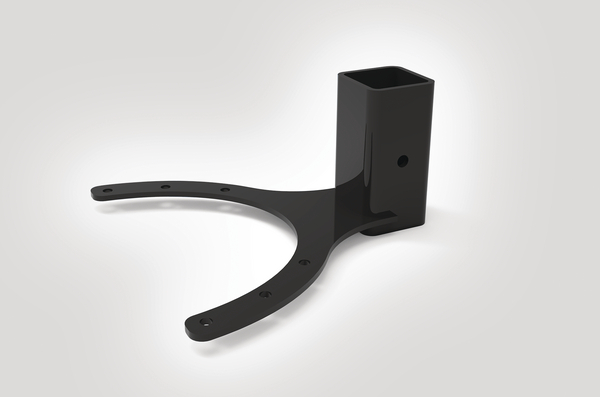

FDN Pit Bracket

    • Simple design, easy to install
    • Allows quick, easy access to the closure whilst in-situ
    • Manufactured from powder coated mild steel
    • Suitable for use with HellermannTyton 16 Port FDN closure
    Colour Black (BK)
    Description FDN Pit Arm Mounting Bracket - Long End Mounting
    Material Steel (ST)
    Package Content packed in bag
    PART DESCRIPTION MB-FDN-PA001
    Product Family Mounting Brackets
    Product Group FDN Pit Arm Mounting Brackets

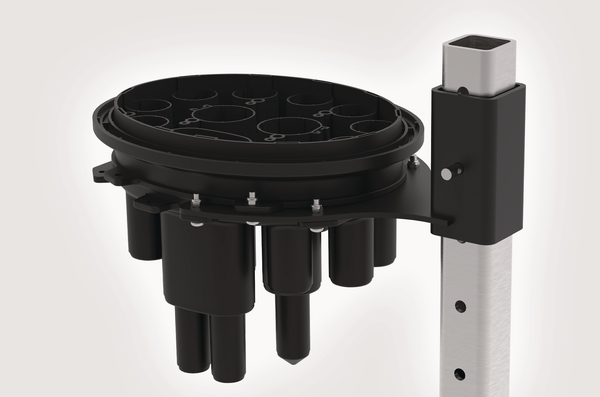

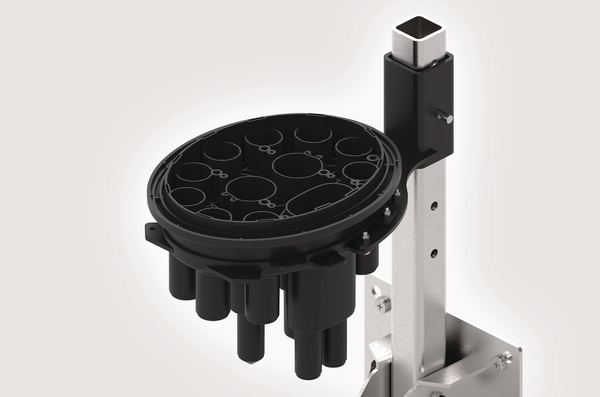

    Technical Description A mounting bracket designed to allow the FDN 16 Port Base closure to be mounted on to a mobra arm. The bracket is manufactured from black powder coated 4mm mild steel and fits over a 50mm square box section pit arm frame. The bracket is secured to the base of the FDN 16 port closure and allows the cover to be removed providing easy access to the base and trays for primary installation or remedial work to the closure.
    GTIN-13 / EAN 5022660135040
