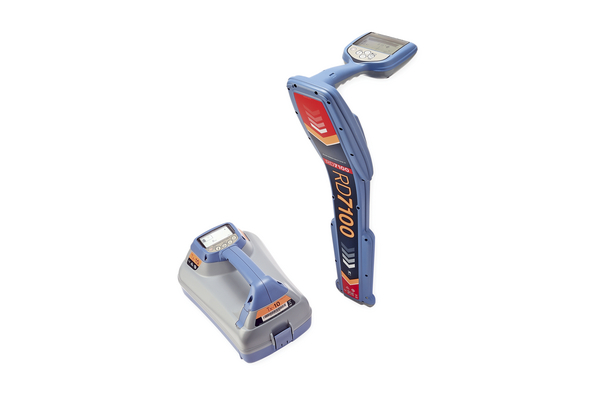

Cable & Pipe Locator With Dept
Art.-No. 911-01901 | RD7100-BU Details

  • Simultaneous depth and current readout
  • Dynamic overload protection
  • Power filters™
  • Trudepth™
  • Automatic usage-logging with GPS positioning
  • ECERT™ - Remote calibration without downtime
  • 8kHz Fault Find
  • Display: Monochrome LCD
  • Sensitivity 6E-15 Tesla,1 5μA at 1m (33kHz)
  • Dynamic range 140dB rms/√Hz
  • Selectivity 120dB/Hz
  • Depth Measurement Precision ± 3%
  • Locate Accuracy: ± 5% of depth
  • Active Locate Filter Bandwidth ± 3Hz, 0 < 1kHz, ± 10Hz, ≥ 1kHz
  • Maximum Depth Readout Cable /Pipe: 30m Sonde: 19.5m (accuracy compromised at greater depths)
  • Active Locate Frequencies 8kHz, 33kHz, 65kHz
  • Sonde Frequencies 33kHz
Show more
Application Excavation of buried utilities
Colour Blue (BU)
Content Accessories Soft carry bag
PART DESCRIPTION RD7100-BU
Part No. RD7100
Product Group Cable and Pipe Locators
Power Supply 2 x D-Cell Alkaline Batteries
IP-Rating IP65
Operating Temperature -20 °C to +50 °C
GTIN-13 / EAN 6005242404290
