A Length
Art.-No. 857-00850 | FSTTB-AXXFA11 Details

  • Maximum 12 fibre splice capacity

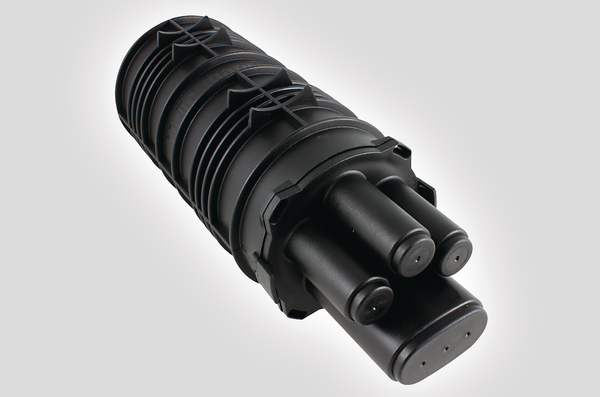

  • 3 round ports and 1 oval port
  • Supplied with 1 x Hellapon Small Trays with 3A Splice Bridges
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
Show more
Colour Black (BK)
Content FST 4 Port Base

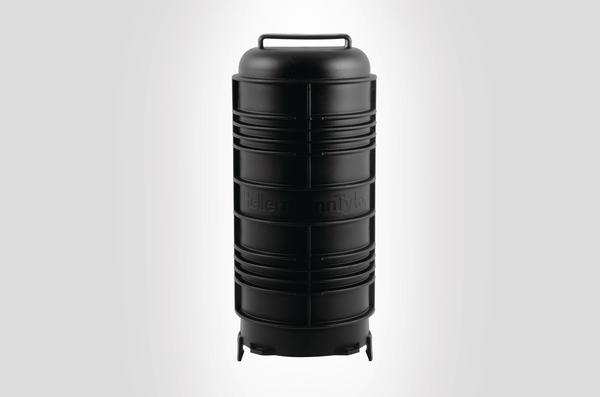

A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Tray Support Frame
1 x Hellapon Small Trays with 3A Splice Bridges
Anchor Fixing Kit
Transportation Tubing
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Material Polypropylene (PP)
Method of Sealing Cablelok
Pack Cont. 1Set
Package Content packed in kit
PART DESCRIPTION FSTTB-AXXFA11
Port LM, B
Port count 1, 3
Product Family A Length
Product Group FST 4 Port Closure
Qty Trays 1
Splice Capacity 12

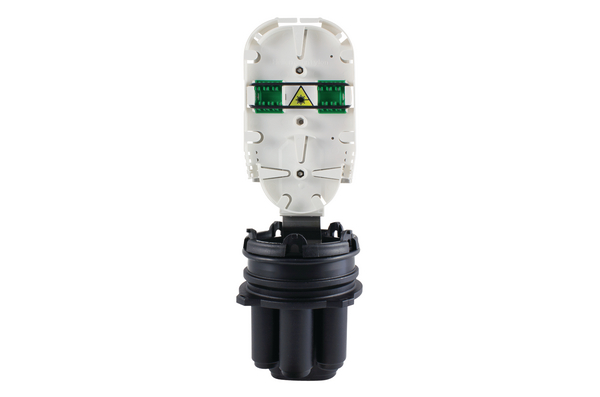

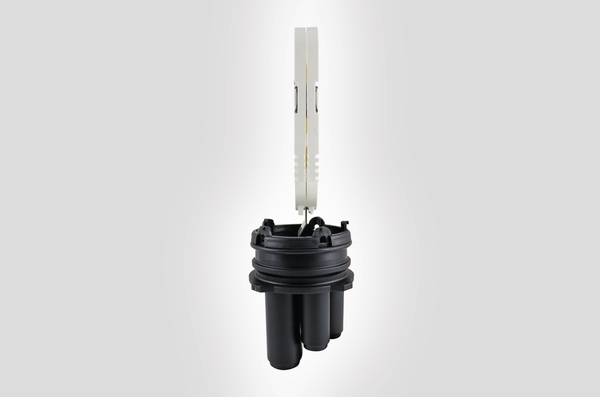

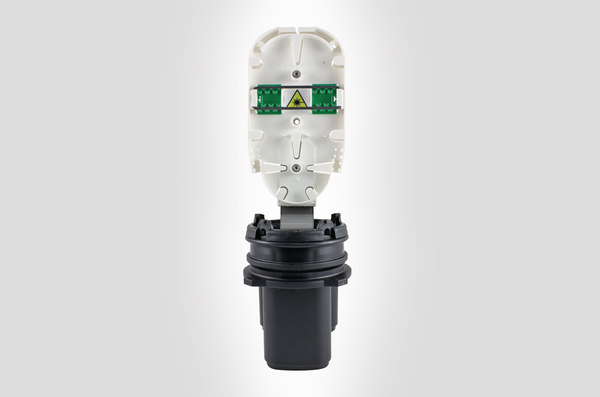

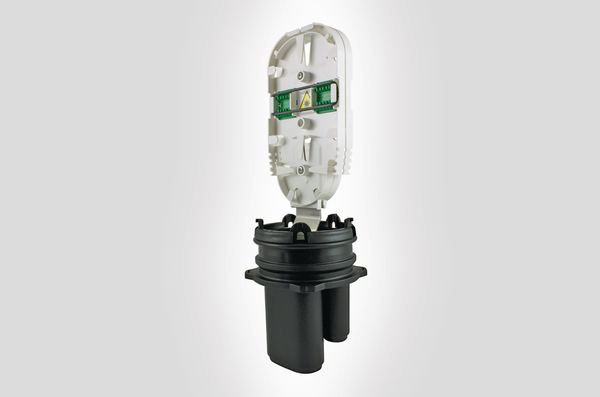

Technical Description The FST 4 Port closure is supplied with a Polypropylene base. The base configuration of 3 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 1 x Hellapon Small Tray with 3A Splice Bridges giving a maximum of 12 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small
Variant Outdoor Enclosure

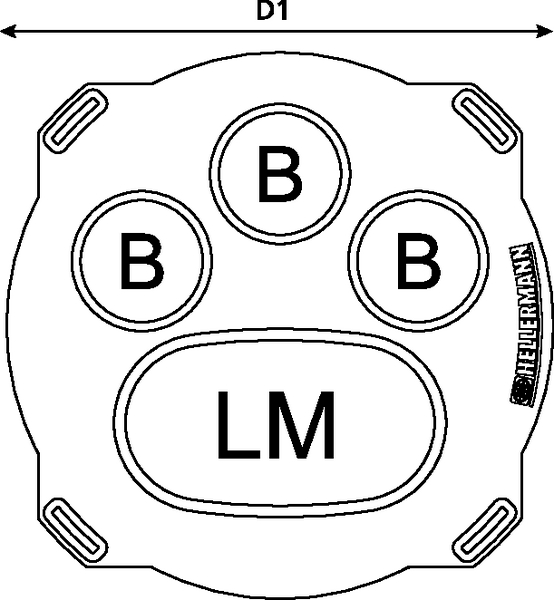

D1 110mm
D1 4.3"

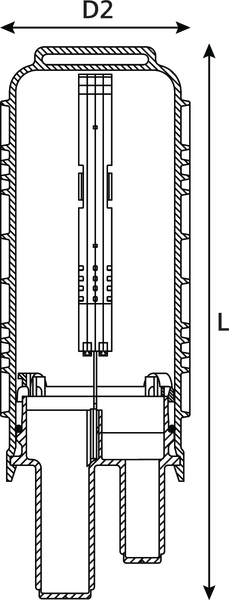

D2 110mm
D2 4.3"
Length 310mm
Hazardous Goods No
GTIN-13 / EAN 5022660138331
Packaging 1 - Weight (kg) 1.0kg
UNSPSC Key 43223338
