HSJKL (PO-X) Standard Kits
Art.-No. 911-01209 | HSJKL185300-PO-X-BK Details

  • Excellent impact and abrasion resistance
  • Excellent environmental and UV properties
  • Hot melt adhesive ensures excellent protection against moisture
  • High electrical insulation properties
  • Excellent strain relief and mechanical protection
  • Quick and easy installation

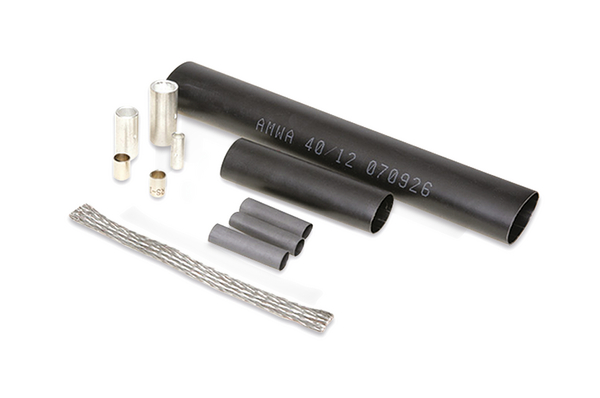

  • Kit contains inner, outer and 4 ferrule heat shrink sleeves, 2 roll springs, tinned copper braid and instruction leaflet.
Show more
Application The Standard Heat Shrink Joint Kit contains inner, outer and 4 ferrule heat shrink sleeves, 2 roll springs, tinned copper braid and an instruction leaflet. Due to variations in cable sizes, ferrules are not included.
Colour Black (BK)
Description HEAT SHRINK JOINT KIT 185-300 LOW VOLTAGE
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
PART DESCRIPTION HSJKL185300-PO-X-BK
Part No. HSJKL185300
Product Family HSJKL (PO-X) Standard Kits
Product Group Heat Shrink Joint Kits
Shrink Ratio 2:1
Wire Size Range (mm²) 185.0-300.0mm²
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
Min. Shrink Temperature - °C +120 °C
Specifications
Water Absorption 0.15%
GTIN-13 / EAN 6005242084133
