HT64

TRMS/AC+DC Multimeter

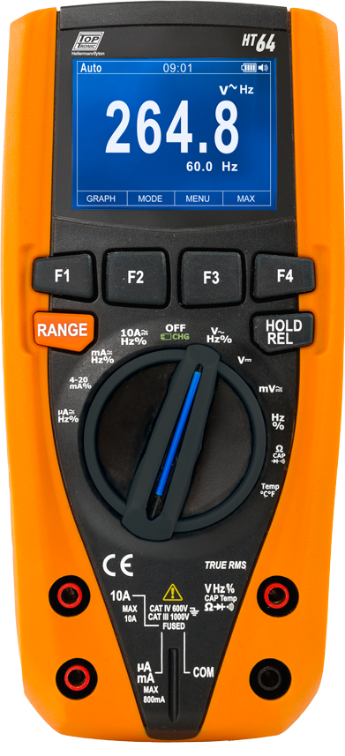

HT64 TRMS/AC+DC Multimeter

Features
• Data Logger and Graph
• Diode, Continuity and Resistance tests
• Automatic polarity indication
• “OL” overrange indication
• Colour TFT, 6000 pixels backlit display
• MAX/MIN/AVG Data Hold
• LoZ voltage measurement
• PEAK 1ms
• Double insulation



Feature

Parameter

Accuracy



DC Voltage (V)

600mV/ 6/ 60V

±0.1% + 5 Digit

600/ 1000V

±0.2% + 5 Digit



AC TRMS Voltage (V)

600mV/ 6/ 60V

±0.1% + 5 Digit

600/ 1000V

±0.2% + 5 Digit

AC+DC TRMS Voltage (V)

6/ 60/ 600/ 1000V

±3.0% + 20 Digit



DC Current (A)

600µA/ 6000µA/ 60mA

±0.9% + 5 Digit

600mA

±0.9% + 8 Digit

10A

±1.5% + 8 Digit



AC, AC+DC TRMS Current (A)

600µA/ 6000µA/ 60mA/ 600mA

±1.2% + 5 Digit

10A

±1.5% + 5 Digit



Resistance (Ω)

600Ω

±0.8% +10 Digit

6kΩ/ 60kΩ/ 600kΩ/ 6MΩ

±0.8% + 5 Digit

60MΩ

±2.5% + 10 Digit

Frequency (Hz)

60/ 600/ 6kHz/ 60kHz/ 600kHz/ 1MHz

±0.9% + 5 Digit

Temperature (°C):

-40 to +1350°C

±105% + 3°C

Capacitance (F)

60nF/ 600nF/ 6000µF/ 60µF/ 600µF/ 6mF

±1.5% + 20 Digit

Display

4½ Digits

6 000 Counts



     Model Specification

Power Source

1 x 7.2V Li-ION Rechargeable Battery

Standard Accessories

K-Type Wire Temperature Probe, Test Leads, Transport Bag

Certificates

EMC: IEC/EN61326, IEC/EN61010-1, Calibration certificate ISO 9000
