TPK80

Portable Thermal Tablet

Portable Thermal Tablet
  • Android Platform: Open Source and expandable
  • 5.5” Capacitive Touch Screen
  • 80x80 Resolution (6400 pixels)
  • Digital Camera 8 Mega Pixel HD CCD
  • Multifunction USB Connector
  • Additional Features Include-Bluetooth, Compass, Wi-Fi
  • Still & Video Recording
  • Built-in Memory

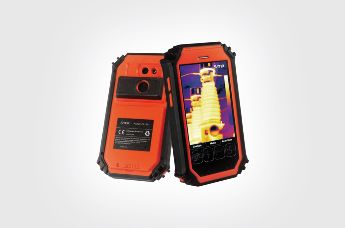

The TPK80 integrates tablet and thermal camera technologies, into an easy to use multifunctional, application device. The TPK80 can access the internet via a Wi-Fi connection or a network. Users can share thermal information with others anytime, anywhere. Individual company owned Apps can be added to the TPK80.

Technical Data

Camera name

TPK80

 Resolution

 80x80

 Thermal Sensitivity

 ≤0.10ºC @ 30ºC

 Field of view/MIn focus Field

 20º x 20º  / 0.5m

 Focus Mechanism

 Fixed Focus

Measurement



 Temperature Range

 -20 to +160ºC

 Accuracy

 ±2°C, ±2% of readings

 Measurement Tools

 1 moveable spots , Auto hot/cold spot capture,       isothermal analysis, Circle analysis Rectangular     analysis,

Environmental



 Operating temperature

 0°C~+50°C

 Encapsulation

 IP54

Physical Characteristics (Camera Body)



 Weight

 415grms

 Dimensions

 175x102x36 mm
