Fixing tie for hole (round), inside serrated, ∅5.0-34.0mm, black, 500pcs.
Art.-No. 150-55850
| T30RFT5-PA66HS/PA66HIRHS-BK
|
Details

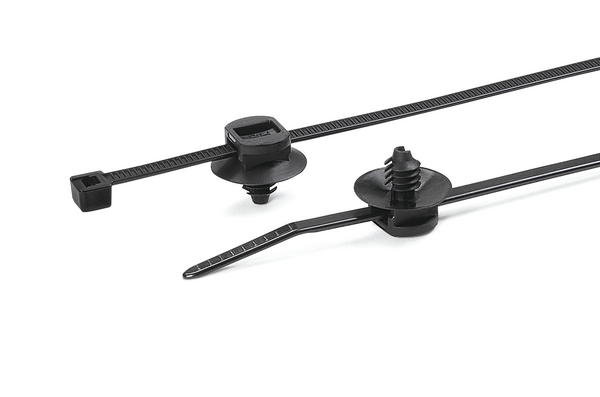

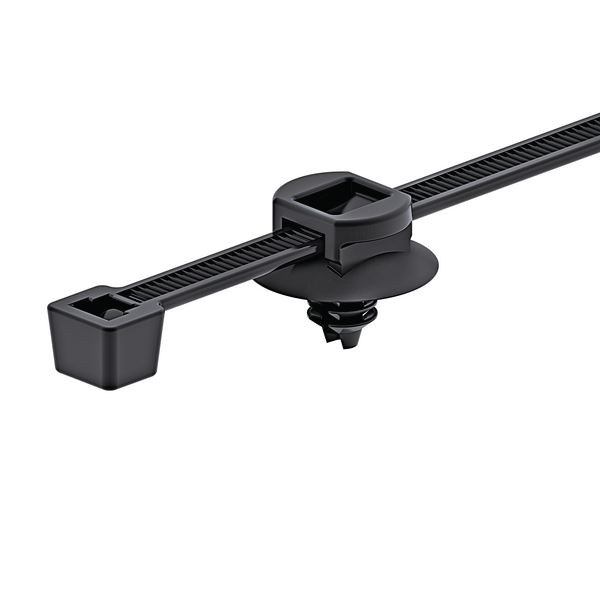

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
More products in this product group:
Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
Anti rotation (Yes / No) | NO |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK) |

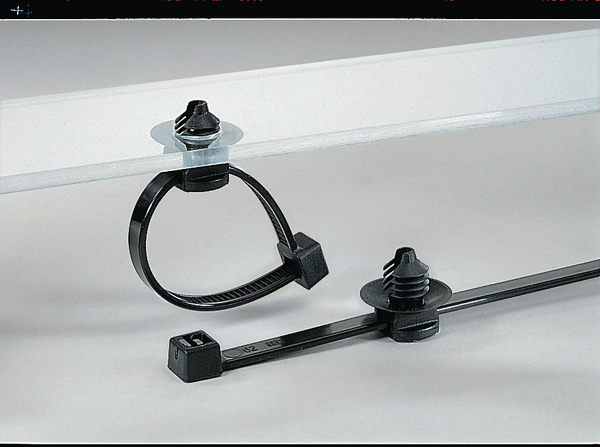

Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
Fixation Method | Fir tree for round holes |
Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | T30RFT5-PA66HS/PA66HIRHS-BK |
Pack Cont. | 500pcs. |
Package Content packed in | bag |
Part No. | T30RFT5BK |
Product Family | Fir tree parts FT5 |
Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
Tie Closure | plastic pawl |
Type | T30RFT5 |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 34.0mm |
Bundle ∅ min. | 5.0mm |
Disc ∅ | 16.0mm |
Disc ∅ | 0.63" |
Height (H) | 1.2mm |
Height (H2) | 6.9mm |

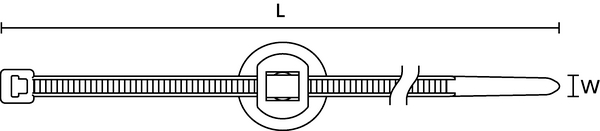

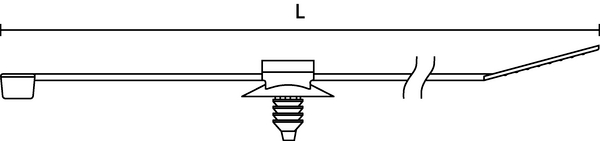

Length (L) | 150.0mm |
Length (L2) | 11.6mm |
Length (L3) | 13.2mm |
Length of Fir Tree | 6.9mm |
Min.Tensile Strength | 135N |
Panel Thickness | 0.03 - 0.12" |
Panel Thickness max. | 0.7 - 3.0mm |
Panel Thickness max. (imperial) | 0.12" |
Panel Thickness min. (imperial) | 0.03" |
Thickness (T) | 1.1mm |
Width (W) | 3.5mm |
Width (W2) | 0.4" |
Width (W2) | 9.0mm |
Width (W3) | 5.0mm |
Width (W3) | 0.2" |
for Hole ∅ (FH) | 4.5 - 5.0 mm |
for Panel Thickness min - max | 0 - 0.1 " |
for Panel Thickness min - max | 0.7 - 3 mm |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
Operating Temperature Foot Part (Metric) | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026203478 |
Packaging 1 - Height (m) | 0.06m |
Packaging 1 - Length (m) | 0.36m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00583m³ |
Packaging 1 - Weight (kg) | 0.560315kg |
Packaging 1 - Width (m) | 0.27m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 6000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 7.55578kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.249m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 72000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.199m³ |
Packaging 4 - Weight (kg) | 111.696kg |
Packaging 4 - Width (m) | 0.8m |
