Gel, Silicone (SI) transparent, 10000ml
Art.-No. 435-00755 | Religel Clear 10.000-SI-CL |  Details

Two-component silicone gel Religel.

    • Optimal visual control through transparent material
    • Crystal clear gel after curing, excellent insulating properties
    • Multiple use possible, mixing ratio 1:1
    • Excellent flow and insulating properties
    • Excellent moisture and chemical resistance
    • Soft elastic, vibration absorbing and removable residue-free
    Show more
    Downloads Datasheet

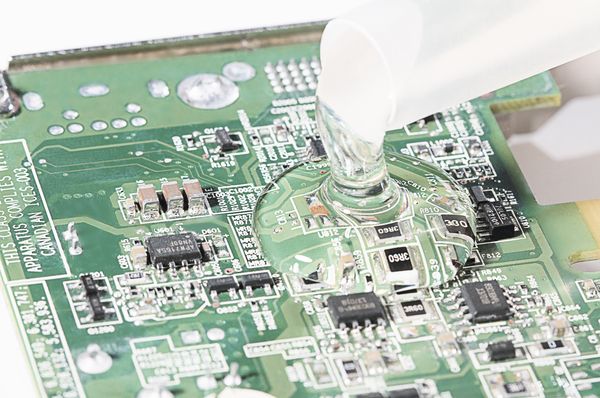

    Application RELICON Religel Clear is a transparent, soft elastic two-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. Encapsulation of printed circuit boards, Installation of electrical connections, Belowground or submerged, Model-making and hobby applications
    Colour Transparent (CL)
    Density 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2)
    Key product features vibration absorbing
    Material Silicone (SI)
    PART DESCRIPTION Religel Clear 10.000-SI-CL
    Pack Cont. 10000ml
    Package Content packed in bulk
    Pot Life 10 min. 23°C
    Product Family Religel Clear
    Product Group RELICON Religel Clear
    Type Religel Clear 10.000
    Viscosity 1000 mPa*s, 23 °C (EN ISO 2555)
    Dielectric Strength 25kV/mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -60 °C to +200 °C
    ROHS compliant Yes
    Shelf Life Unlimited
    Specifications
    Thermal Conductivity (max.) 0.15W/mK
    Thermal Conductivity (min.) 0.15W/mK
    Vibrations absorbing Yes
    GTIN-13 / EAN 4031026599694
    Packaging 1 - Height (m) 0.35m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 1
    Packaging 1 - Type pcs.
    Packaging 1 - Volume (m³) 0.0238m³
    Packaging 1 - Weight (kg) 10.75kg
    Packaging 1 - Width (m) 0.34m
    Packaging 4 - Height (m) 0.964m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 14
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.925m³
    Packaging 4 - Weight (kg) 203.38kg
    Packaging 4 - Width (m) 0.8m
    Spray content 9700g
    Storage Temperature +4 °C to +40 °C
