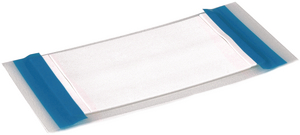

Heat shrink marker, thermal transfer print, ladder-style, 3.0mm/1.1mm, W=5.97mm, yellow, 500pcs.
Art.-No. 554-70004 | HFST3-1YE-S-PO-X-YE |  Details

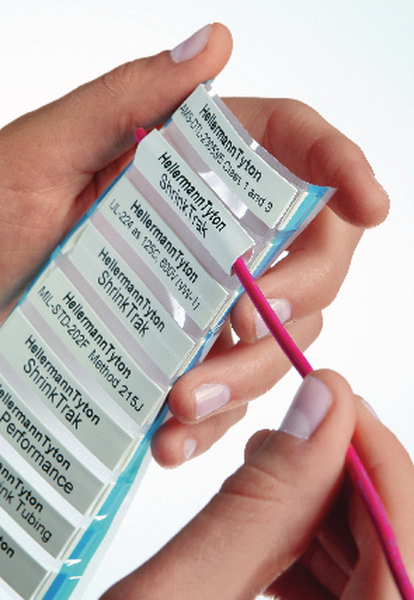

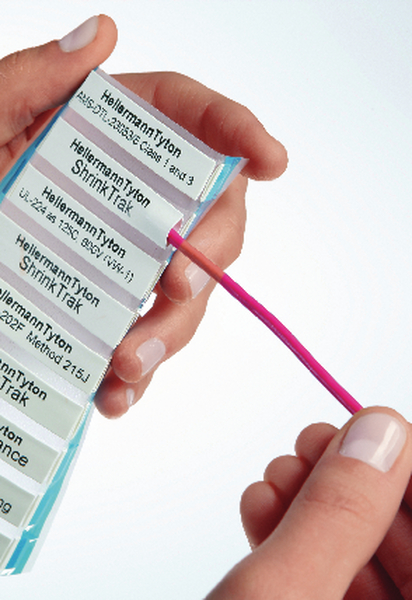

    • Slide Slit and optional center slits for easy wire insertion.
    • Smooth surface for clean and legible printing.

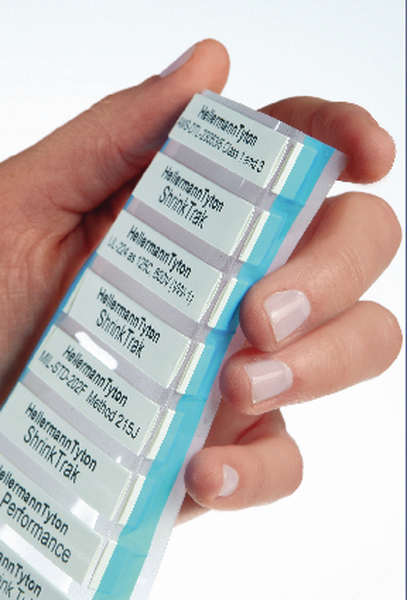

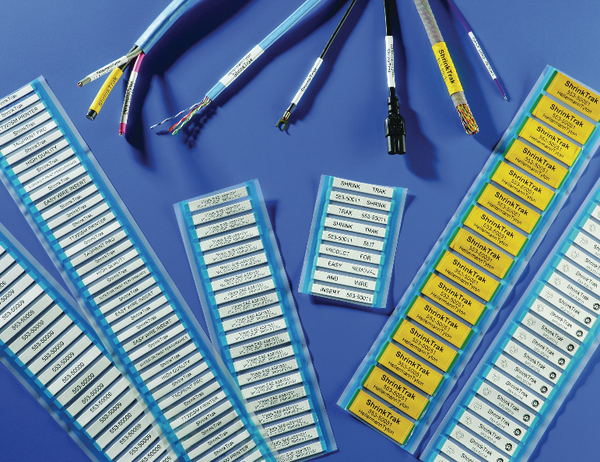

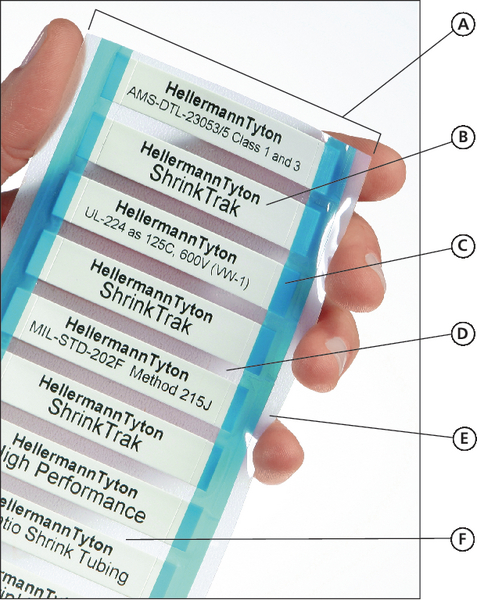

    • Supplied on a ladder style carrier so that markers can be kitted after printing.
    • A 3:1 shrink ratio means fewer skews as each marker covers a wider range of wire diameters.
    Downloads Datasheet

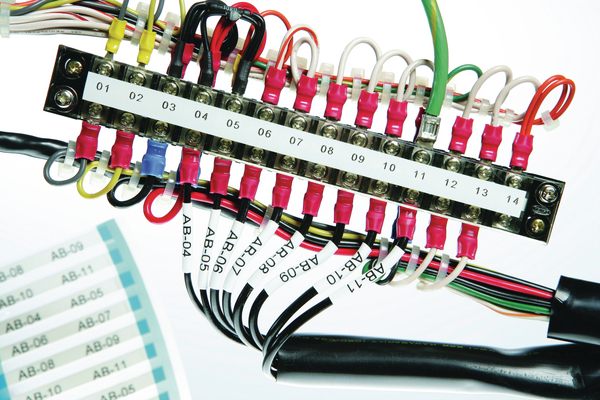

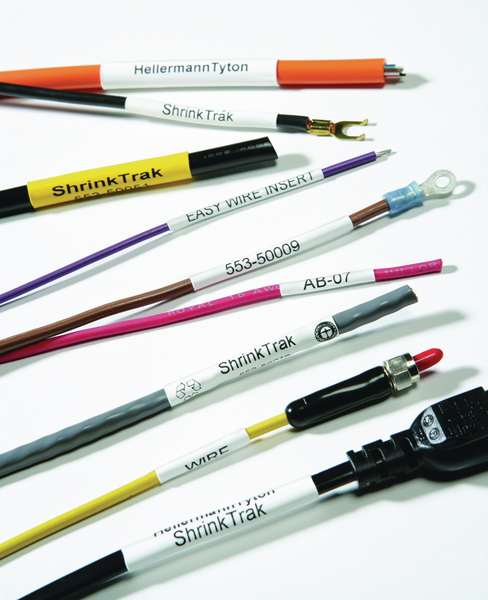

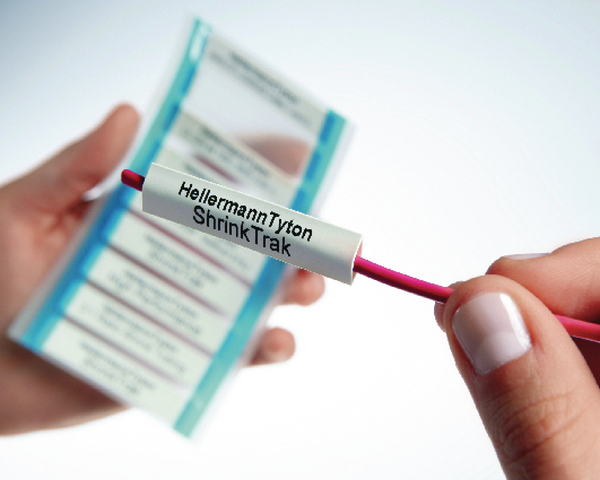

    Application Shrinkable markers by thermal transfer. Ideal for applications where dialing cannot take up space or run on the cable. HellermannTyton ShrinkTrak Markers make it easy to identify wires, cables and other components. These markers are made with cuts in the side, which make it easy to apply to the cables. All ShrinkTrak labels are homologated for military use (American Standard).
    Chem. Material Properties Resistant to solvents and chemicals when printed with the recommended HellermannTyton ribbon and printing system.
    Colour Yellow (YE)
    Material Polyolefin, cross-linked (PO-X)
    Mech. material properties Flexible, flame retardant heat shrinkable tubing with side slit for easy marker removal.
    PART DESCRIPTION HFST3-1YE-S-PO-X-YE
    Pack Cont. 500pcs.
    Package Content packed in reel
    Printable Yes
    Product Family ShrinkTrak
    Product Group Shrinkable Wire Markers: "Ladder Style", thermal transfer
    Shrink Ratio 3:1
    Type HFST3-1YE-S
    Variant Thin-Wall
    With inner glue (Yes/No) No
    Flexibility Flexible
    For AWG 18-22
    Height (H) 5.97mm
    Outside ∅ max (OD max.) 3.2mm
    Outside ∅ max. 0.125"
    Print Method thermal transfer print
    Recov. ∅ d max. 0.043"
    Recov. ∅ d max. 1.1mm
    Supplied ∅ D min. 0.118"
    Supplied ∅ D min. 3.0mm
    Thickness (T) .0762mm
    Wall (WT) 0.53mm
    Wall (WT) 0.0209"
    Width (W) 5.97mm
    Width of LIner (WL) 3.0"
    Width of Liner (WL) 76.2mm
    Width printable 24.10mm
    Wire Size Range (mm²) 0.044-1.0mm²
    ∅ D max. .125"
    Abrasion Resistance Medium
    CE Certification No
    Dielectric Strength 19.7kV/mm
    Flammability UL 224 VW-1
    Halogen-free Yes
    Min. Shrink Temperature - °C +90 °C
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Recommended Ribbon Type TTDTHOUT, TTDTHOUTSM, TT822OUT, TT822OUTSM
    Reel Variant ladder-style
    Solvent Resistance Good
    Specifications
    Specifications SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AS81531, UL 224 125 °C 600V VW-1

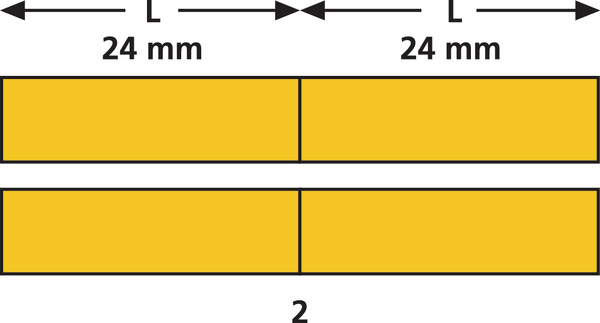

    Markers per row 2
    Packaging 1 - Weight (kg) 0.294kg
