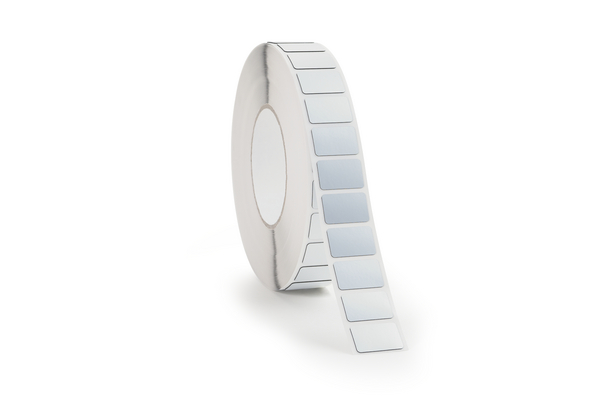

Label, silver, thermal transfer print, 30x60mm, 500pcs.
Art.-No. 596-00583 | TAG60-30TDK1-1221-SR |  Details

Helatag 1221 Series, silver panel plate labels.

    • Cost-effective replacement for engraved plastic plates, no need for additional label holder
    • High performance adhesive and compressible foam backing ensures optimal adhesion to uneven surfaces if required
    • Rounded corners ensure better long term durability of adhesion

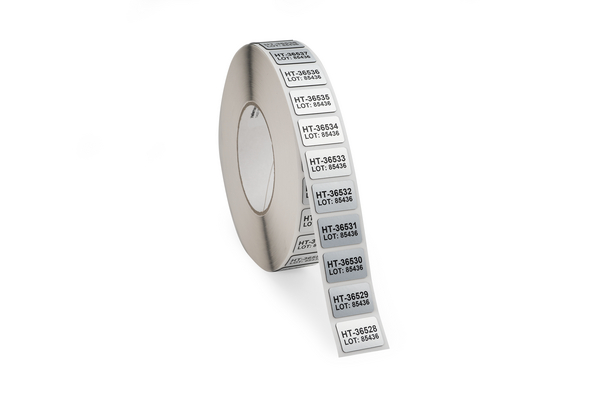

    • Print high contrast text and barcodes
    • Print ‘On Site’ not order ‘Off Site’
    • Special sizes and colours are possible on request
    • For outstanding chemical resistance use TT122OUT
    Show more
    Downloads Datasheet
    e-Learning

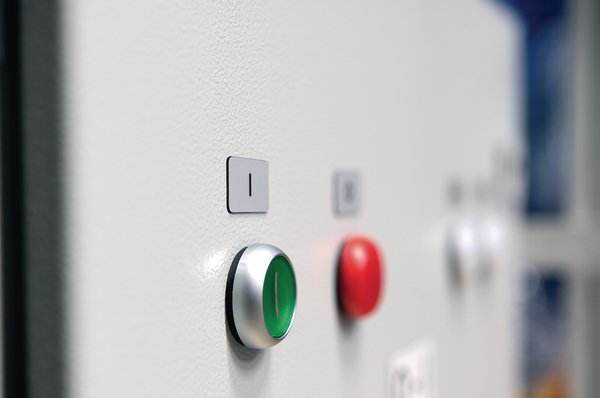

    Application Panel labels are durable adhesive labels especially made from a thick material that is designed to replace traditional engraved plastic plates. The silver colour is suited to industrial control panels, switchgear, data racks and general equipment labelling. Create crisp and clear professional looking labels by printing with HellermannTyton thermal transfer printers and ribbons. Simple label design creation is easily achieved using TagPrint Pro.
    Chem. Material Properties Excellent resistance to ageing, weathering and UV-radiation. Extensive resistance to the influence of chemicals and solvents.
    Colour Silver (SR)
    Colour Marking Field Silver (SR)
    Material Type 1221, Polyester, silver (1221)
    Mech. material properties Permanent adhesive with an elastic foam carrier.
    PART DESCRIPTION TAG60-30TDK1-1221-SR
    Pack Cont. 500pcs.
    Package Content packed in reel
    Part No. TAG6030TDK11221SL
    Product Family Helatag 1221
    Product Group Panel plate labels, thermal transfer
    Self adhesive (Yes/No) Yes
    Type TAG60-30TDK1

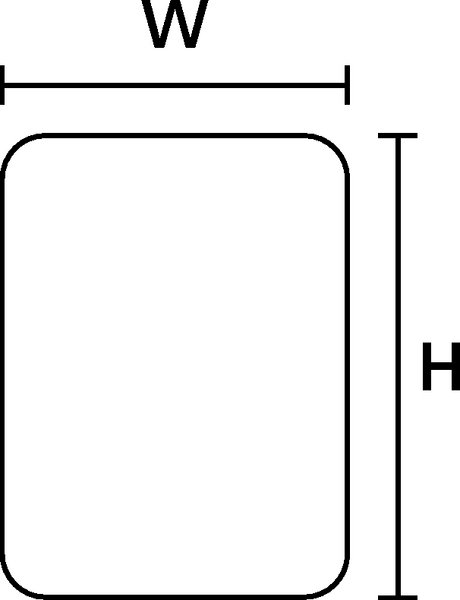

    Height (H) 30mm
    Print Method thermal transfer print
    Print Method (Alternative) laser beam print
    Thickness (T) 50µm
    Thickness of Foil 50
    Thickness of foil test method FINAT FTM 12
    VR 33mm
    Width (W) 60mm
    Width of Liner (WL) 66mm
    Adhesive Acrylic
    Curing Temperature from +10 °C
    ELV compliant (Article 4 - 2) YES
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    Peel strength 45 N/25mm
    Peel strength test method DIN EN 1939
    Pre-Printed No
    ROHS compliant Yes
    Recommended Ribbon Type TT122OUT, TT822OUT
    Shear strength test method DIN EN 1943
    Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
    Specifications
    GTIN-13 / EAN 4031026454948
    Labels per Row 1pc.
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.173m
    Packaging 1 - Qty 500
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00363m³
    Packaging 1 - Weight (kg) 0.662kg
    Packaging 1 - Width (m) 0.175m
    Storage Temperature +21 °C
    Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
    UNSPSC Key 39121702
