Introduction

End to End Fibre Network Solutions

End to End Fibre Network Solutions

HellermannTyton provides a complete end to end range of Fibre to the X (FTTX) solutions, delivering flexible fibre connectivity across every stage of the last mile network

The comprehensive range have all been designed to drive quality and high performance connectivity in both residential and commercial applications:

  • street cabinets,
  • fibre splice closures,
  • MDU enclosures (new products coming soon!),
  • customer connection points
  • and wall outlets



Products

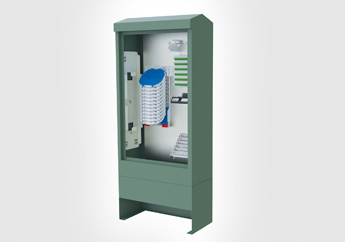

Fibre Street Cabinets

Fibre Street Cabinets

Flexible Fibre Management System

  • 48 Port Point of Connection (expandable to 96)
  • Duct support bracket for 98 drops
  • LC Simplex (UPC/APC) presentation
  • Positive fibre management throughout
  • Support for 250μm and 900μm fibre routing and management
  • Modular construction allows for build and grow network
  • Quick and easy installation of additional trays/drop patch modules
  • Fibre storage basket for loop through applications

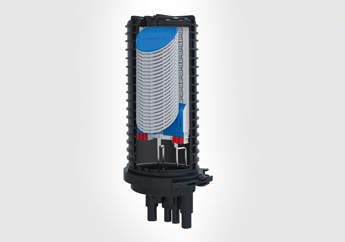

Multi-Port Fibre Splice Closures

Multi-Port Fibre Splice Closures

Up to 59 Fibre Ports

  • 58 round ports and 1 oval port
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Accommodates SC, SC-B and SE trays
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve

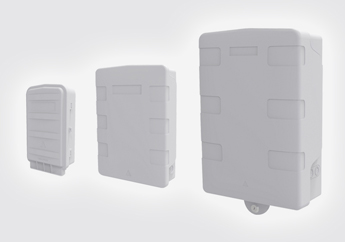

MDU Fibre Enclosures - MDU - S5, MDU - S3 and MDU - S1

MDU Fibre Enclosures - MDU - S5, MDU - S3 and MDU - S1

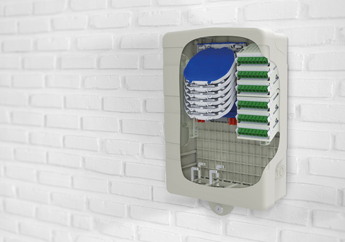

MDU - S5

Up to 432 Managed Fibre Splices

  • IP54 Rated
  • Splice Only and Connectorised versions available
  • Fibre Loop Storage basket
  • Horizontal and Vertical cable lay through
  • 3 Locking options
  • Up to 432 Fibre splices
  • 96 LC / 48 SC connections
MDU - S3

Small Enclosure with up to 96 Splices

  • Up to 96 Splices
  • IP54 Rated
  • 24 LC / 12 SC connections
  • Fibre Loop Storage basket
  • Horizontal and Vertical cable lay through
  • Built in spirit level
  • 3 Fibre splitter positions
MDU - S1

8 Customer Connection Points

  • Separation of spliced feeder cable from connectorised drop cables
  • 8 SC SX / LC SX customer connections
  • 2 inbound / 8 outbound ports
  • Positive fibre management (30mm min bend radius)
  • IP55 and IK09 rating
  • Tamper-proof
  • Pole or building facade mounting features
  • Low profile

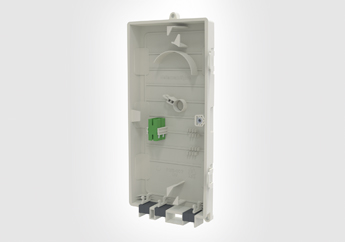

Customer Connection Enclosure (CCE)

Customer Connection Enclosure (CCE)

Up to 50m of Fibre Storage

  • 6 inbound / outgoing ports
  • Through the wall capability
  • 2 SC SX / LC DX customer connections
  • 4 3A splice connections
  • Positive fibre management (30mm minimum bend radius)
  • IP54 rating
  • Loop through facility
  • Low Profile
  • Tamper-proof option available

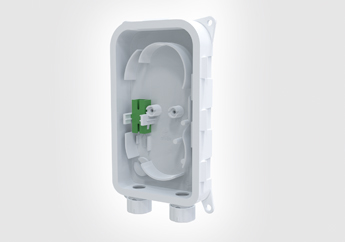

Customer Connection Point (CCP)

Customer Connection Point (CCP)

Quality Seal - IP68 Rated

  • 2 inbound/outbound ports
  • Through the wall capability
  • Positive fibre management (30mm minimum bend radius, G652D or G657 single mode fibre)
  • 2 SC SX / LC DX connections
  • Splice protector storage for 3A or ANT sleeves
  • IP68/IK08 Rated
  • Mechanical fixing for cable strength member
  • Fully detachable snap on lid

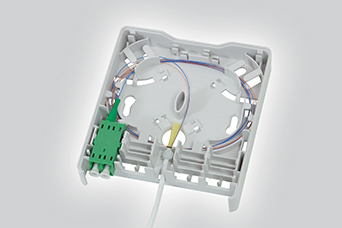

Fibre Wall Outlet (FWOA)

Fibre Wall Outlet (FWOA)

LC and SC Adaptors

  • 4 SC Simplex or LC Duplex adaptors
  • Installed directly on the wall or onto a flush-mount back box
  • Cable entry at the base of the unit or through the rear
  • Recessed base for use with adhesive
  • Cable entry at the base, sides or through the rear
  • Up to 4 splice protectors (upto 45mm)
  • Tamper-proof latches
  • 25mm minimum bend radius



Downloads and links

Downloads and links

 To download the HellermannTyton product brochures available specific to the FTTX markets, please follow the links below:

New A5 Global Fibre Connectivity Solutions Brochure (PDF, 3.1 MB)

FTTX Broadband Connectivity Brochure (PDF, 4 MB)
