Wire conduits, cable protection, sleeving and tubing for your application

Cable conduits: metallic, PVC, flexible

Cable protection systems and accessories for every demand

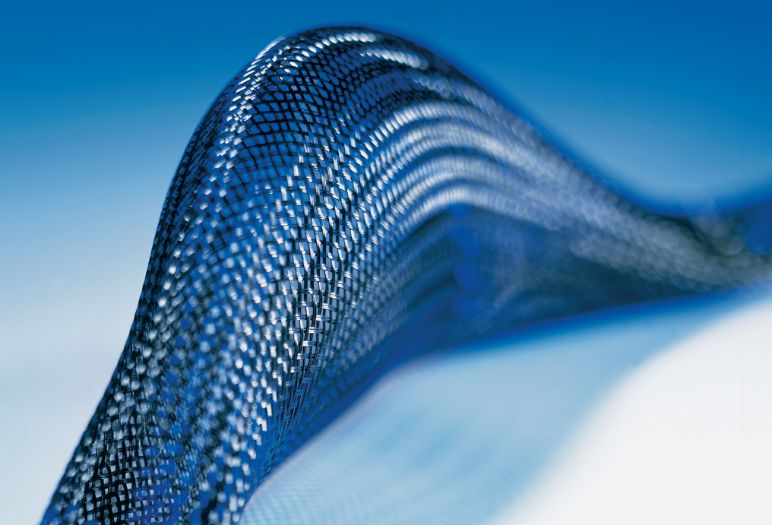

Cable protection braided sleeving Helagaine HLB

No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Wire conduits have to meet these demands and also provide protection against dirt and dampness or resistance against extreme temperature loads

From excellent flexibility, to high flame-retardant properties to exceptional mechanical protection, thick-walled or thin-walled, HellermannTyton guarantees the highest quality and safety in all cable protection areas. Wherever cable protection is needed, there are unique requirements. Whilst cable protection in plant and machinery construction requires high levels of mechanical impact resistance and abrasion resistance, a wire conduit or braided sleeving used in public buildings or in rolling-stock must meet the highest fire safety standards and needs to be halogen-free.

In addition to the outstanding material properties of the flexible cable protection conduits from HellermannTyton, customers  also benefit from  system solutions. For each metallic or non-metallic cable conduit in the HelaGuard series, there are a number of accessories available, for example:

  • Locknuts
  • Endcaps
  • Clamps
  • Sealing washers

Whether construction or retrofitting, for example with braided sleeves that can be re-opened or closed, find the right cable protection solution for your application now.

Cable protection tailored to your application!

The requirements in the field of cable protection are becoming increasingly complex. Wire conduits need a lot of features to protect cable bundles optimally under diverse conditions, e.g.:

  • Flexibility
  • High resistance to corrosion
  • High resistance against heat and coldness
  • Flame-resistant and self-extinguishing

HellermannTyton is a global manufacturer that offers high-performance market solutions that uniquely meet the needs of customers, no matter what industry they operate in. Key aspects include solving a specific requirement, saving installation and component costs and improving the quality of the end product.

The product portfolio includes following solutions:

HelaGuard flexible wire conduits and screwed connections

An comprehensive range of flexible protection conduits made of PA6, flame retardant PA6-FR, PA12 and PP, as well as the double-slit flexible conduit HG-DC suitable for retro-fitting. A complete range of IP66 and IP68/IP69k glands in a wide variety of shapes (straight, 90°, 45°, T, Y and flange), with fixed metric and PG threads, or alternatively with external or internal swivel brass threads. Fittings with strain relief and cable sealing are also available.

HelaGuard flexible metallic cable protection conduits and screwed connections

General purpose flexible conduits (galvanised steel and stainless steel SS316) with high compression, tensile and impact strength. Nickel plated brass and stainless steel (SS316) fittings (metric and PG) with fixed and external threads.

HelaGuard flexible conduits with plastic coating and fittings

Flexible metallic PVC conduits, PA6 and polyolefin (PO) covers and very strong compression, tensile and impact strength. Nickel plated brass IP54 fittings (metric and PG) as well as IP65 compression fittings (metric and PG) with excellent pull-off strength. Both versions in various shapes and with fixed or swivel threads.

HelaGuard flexible metallic cable protection conduits with liquid-tight cover (IP68, IP69k) and fittings

Flexible metallic conduits with smooth PVC and thermoplastic rubber covers and high compression, tensile and impact strength. Nickel plated brass IP68/IP69 compression fittings (metric and PG) with excellent pull-off strength. The  protective conduit systems are suitable for outdoor use.

HelaGuard PSR and PSRSC spiral-reinforced PVC conduits made and fittings

Extremely flexible PVC conduits with rigid-PVC spiral reinforcement with smooth inner bore (PSRSC conduits also with smooth outer cover). Fittings include straight and 90° PA66 fittings (IP66 and IP67), straight and 90° nickel-plated brass fittings (IP66, IP67, IP68 and IP69k) and straight and 90° stainless steel (316) fittings (IP66, IP67, IP68 and IP69k).

Accessories for HelaGuard wire conduits

A wide assortment of clips, couplings, locknuts, sealing washers, endcaps and thread converters for use with HelaGuard cable protection conduits.

FlexiGuard flexible cable protection conduits and screwed connections

Highly flexible conduits made of high-grade PVC and a plastic-coated spring steel wire. IP54 fittings with metric and PG threads or alternatively with a mounting bracket. FlexiGuard is typically used to protect wires to switching equipment and in plant construction.

Cable protection conduits for extreme conditions

CTT NSA 935805 compliant PTFE protection conduits with excellent resistance to almost all chemicals as well as to low and high temperatures, very good tensile strength and very good fatigue life. The CTT conduits made of PTFE protect wires from extreme temperatures, fire, moisture, corrosion, vibration and abrasion.

Helawrap cable protection system

The Helawrap cable protection system is the ideal solution for bundling and protecting cables and wires. The Helawrap applicator tool enables the user to bundle cables rapidly and effortlessly. Thanks to the Helawrap accessories, Helawrap tubing can be fixed on tables and cupboards.

Cable protection spiral binding

Protection spiral binding is used to organise and protect wires and hoses. HellermannTyton spiral binding is available in a wide range of diameters, colours and materials.

Wiring Ducts and accessories for cable guard in switch boards and panel controls

Cable protection wiring ducts are used in wiring panels and switching systems. HellermannTyton offers rigid protection ducts made of PVC as well as from halogen-free PC/ABS. Furthermore, accessories for fixing ducts and DIN-Rails are available.

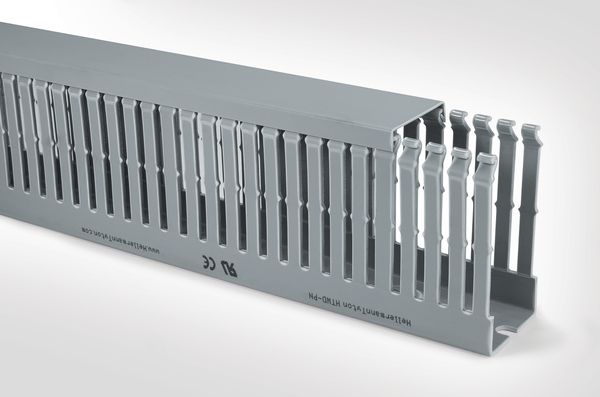

Wiring Ducts and accessories for cable protection

Rigid conduits are used in wiring panels and switching systems. HellermannTyton offers cable trays made of PVC as well as from halogen-free PC/ABS. Furthermore, accessories for fixing ducts and DIN-Rails are available.

Braided sleeving and fabric tubing

Cable protection braided sleeving  made from Polyamide 6.6 (PA66) and Polyester (PET), also combined with tin-platted copper for EMI-shielding, protects wires from abrasion. Helahook fabric protection tubing hook-and-loop seal can be retro-fitted and re-opened and closed repeatedly. The self-closing cable protection sleeve Helagaine Twist-In is ideal abrasion protection even on pre-installed components.

Edge Protection

EdgeGuard PVC edge protection strip used on straight sharp edges. Flexiform edge protection strip is made from Polyethylene (PE), Polyamide (PA) or Polytetrafluoroethylene (PTFE) and is used to protect cables routed through sharp-edged cut-out sections.

Grommets

Bend protection grommets, edge protection grommets, strain relief grommets, push-on caps and elbow grommets for a large varity of diameters and purposes.

HelaGuard wire conduits

Non-metallic cable protection conduit HG-SW PA6 standard

Non-Metallic Cable Protection Conduits HelaGuard

The corrugated pipe HG-SW provides very good resistance to abrasion, compression and impact, is highly flexible and has a long fatigue-life. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.

Preferably used in following industries:

  • Machine building
  • Plant construction
  • Control panels
  • Public buildings

Non-metallic wire conduit HG-LW PA6 light weight

Non-Metallic Cable Protection Conduit HG-LW PA6 Light Weight

The light weight HG-LW cable protection conduit is very fleixble with a small bending radius. It has a long fatigue-life and provides good resistance to abrasion, compression and impact. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.

Preferably used in following industries:

  • Machine building
  • Plant construction
  • Control panels
  • Public buildings

The ideal solution, wherever lower mechanical protection is required.

Non-metallic cable conduit HG-FR PA6 flame retardant

Non-metallic Cable Protection Conduit HG-FR PA6 Flame Retardant

The extremely flame-retardant cable protection conduit HG-FR including EN45545-2 certification has low smoke and toxicity, is very flexible and has a long fatigue-life. The protection conduit is also resistant to abrasion, compression and impact. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.

Preferably used in following industries:

  • Railway vehicles
  • Railway tunnels
  • Underground stations
  • Public buildings

The ideal solution, where high fire protection is required.

Non-metallic conduit HG-DC double slit

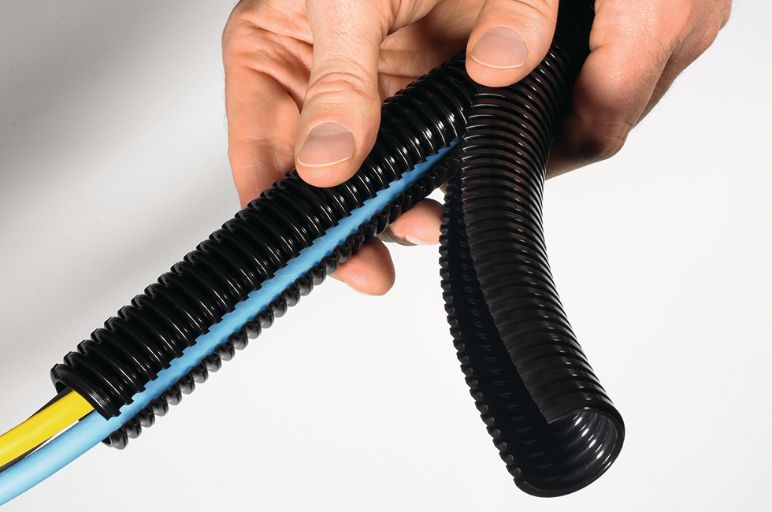

Non-Metallic Cable Protection Conduit HG-DC Double Slit

The double slit corrugated HG-DC cable pipe can be open and closed repeated and offers excellent abrasion resistance. Cables are easily inserted laterally. The conduit is resistant to abrasion, compression and impact. It is also very resistant to solvents and oils and is free of halogen, sulphur and phosphorous.

Preferably used in following industries:

  • Control panels
  • Machine building
  • Plant construction

The ideal solution, wherever retrofitting is required.

Metal conduits made of galvanized steel

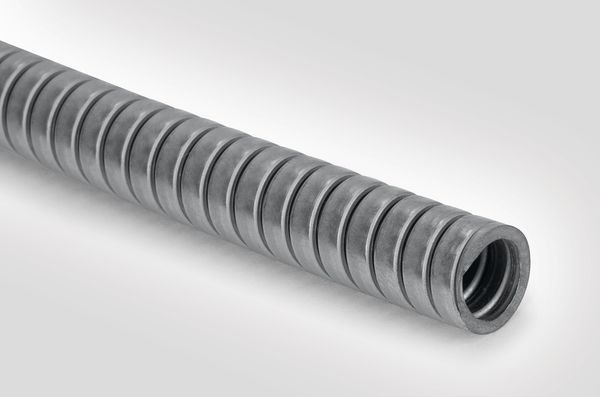

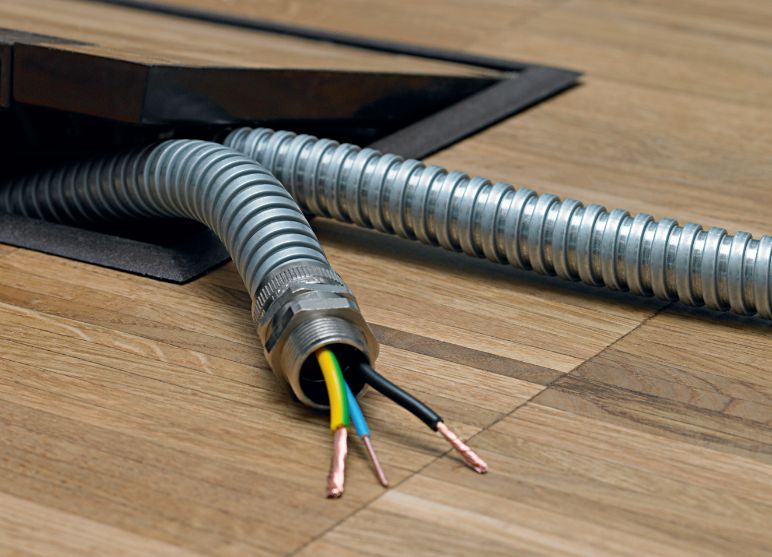

Metallic cable protection conduits  Galvanised steel cable protection conduit SC

The SC galvanized steel cable conduit offers very excellent compression, impact and tensile strength and is very flexible.

Preferably used in following areas:

  • Underfloor wiring in offices
  • Data cabling
  • Protection of hydraulic or pneumatic conduits

The ideal solution,  when strong mechanical protection is required.

Metallic wire conduits made of stainless steel

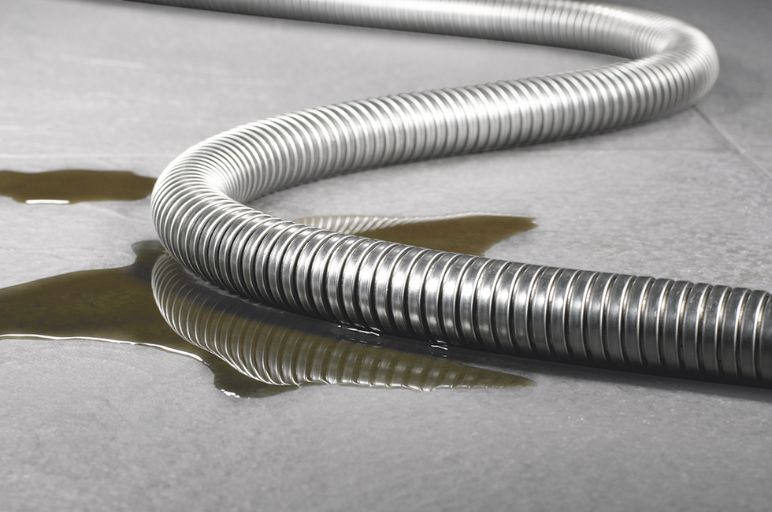

Stainless steel cable protection conduit SC

The SSC stainless steel cable conduit is very resistant to rust and corrosion, is flexible and offers very good compression, impact and tensile strength.

Preferably used in following areas:

  • Protection of sensor cables
  • Instrumentation tubing
  • Hydraulic and pneumatic conduits

Commonly used in hospitals and clinics, particularly in corrosive environments.

Metallic conduits with plastic coating – PCS galvanised steel with PVC cover

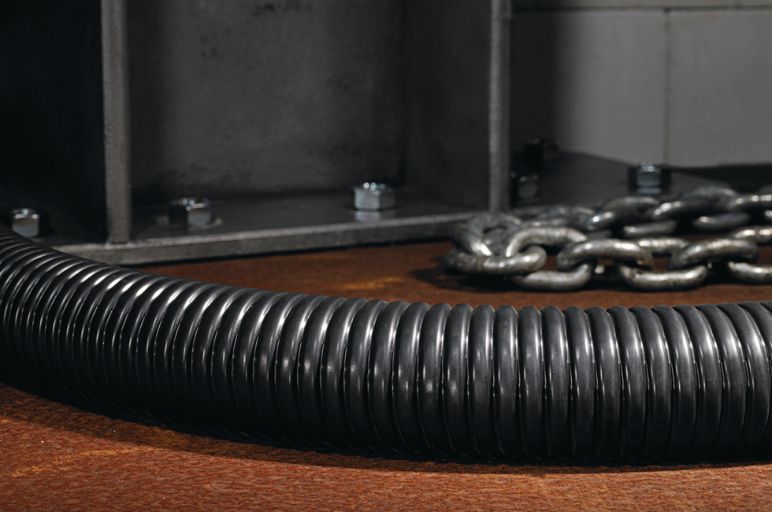

PCS galvanised steel cable protection conduit with PVC cover

The PCS galvanised steel cable conduit with PVC cover offers very good compression, impact and tensile strength, is very flexible and is resistant to alkalis, acids and chemicals.

Commonly used in machines and plants.

Metallic cable conduits with smooth, liquidtight plastic cover LTS galvanised steel cable protection conduit with PVC cover

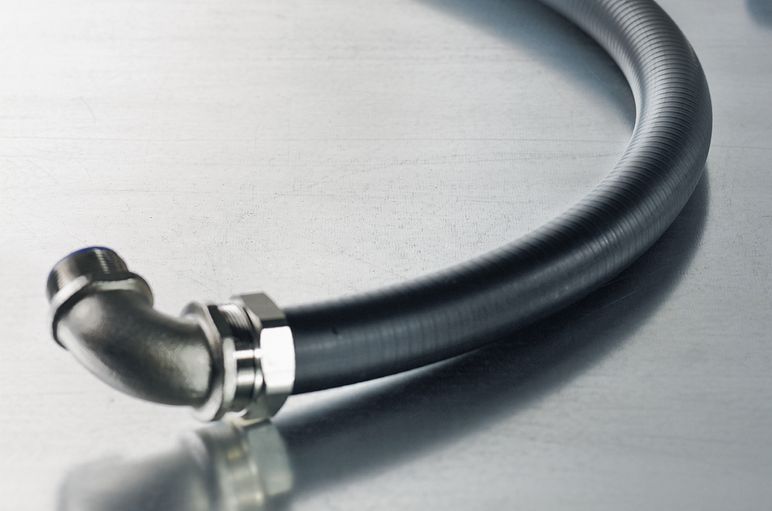

LTS galvanised steel cable protection conduit with PVC cover

The LTS galvanised steel cable conduit with smooth, liquid-tight PVC cover (IP68, IP69 with LTS fittings) offers very good compression, impact and tensile strength, good flexibility and is resistant to oils, greases, acids and chemicals. It is suitable for outdoor use.

Commonly used in machine tools or outdoor installations and wherever liquid tightness (IP68) is required.

Braided and woven sleeving

Helagaine HEGMAN and HEGMANWO cable protection braided sleeving

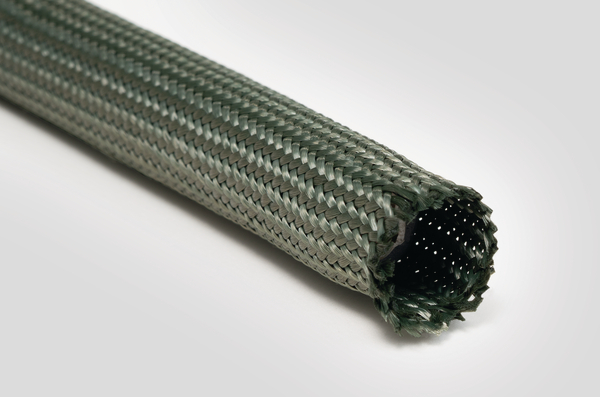

cable protection braided sleeving Helagaine

The braided sleeving HEGMAN and HEGMANWO are made of meta-aramid NOMEX®. They are flexible and their high expanision rate allows for easy installation even over long lengths and connectors.

The braided sleeving HEGMAN and HEGMANWO offer optimal mechanical protection for harnesses and can withstand the most severe environments. They protect cables and wires from abrasion, high temperatures and flames.

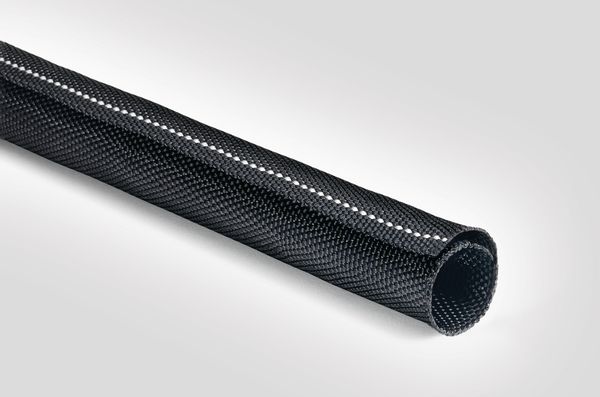

Self-closing, woven sleeve HelaGaine Twist-In

Self-closing, woven cable protection tubing HelaGaine Twist-In

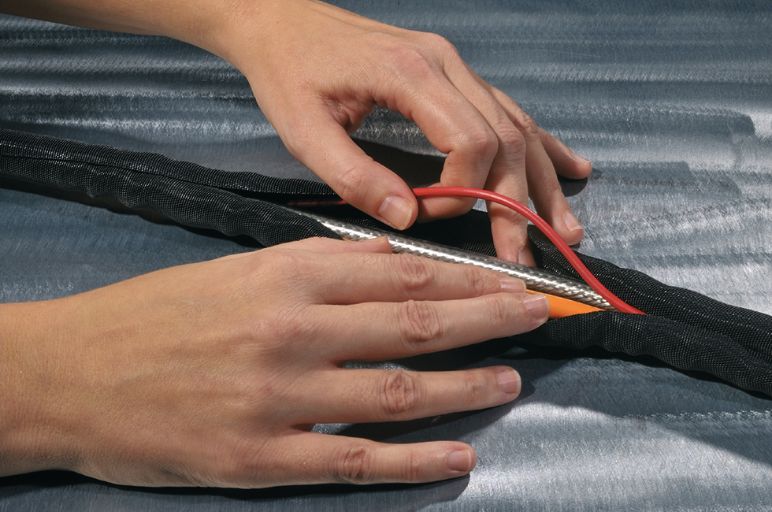

The cable protection HelaGaine Twist-In is a self-closing sleeve. The self-wrapping feature allows for easy, quick installation and removal of the sleeving even on enclosed components and wires.

HelaGaine Twist-In gives quick and easy access to hoses and wires for inspection, maintenance and assembly at any time. It covers a wide range of uses and diameters with a small range of sizes.

HelaGaine Twist-In is available in three different designs:

  • Twist-In: general purpose variant, made of sturdy polyester
  • Twist-In-FR: flame-retardant, with EN 45545-2 approval
  • Twist-In-RR: rodent repellent, made of fiberglass and polyester

Standard polyester braided sleeving HelaGaine HEGP

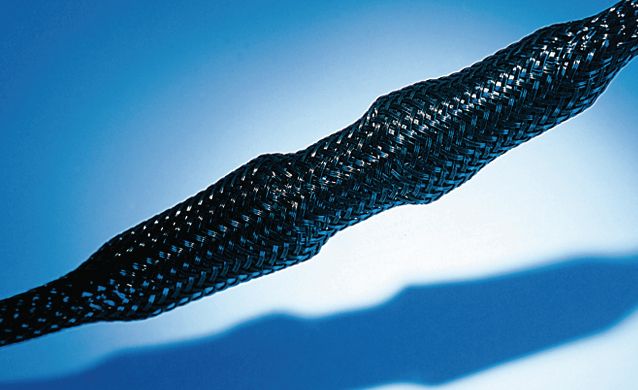

Standard polyester cable protection braided sleeving HelaGaine HEGP

Helagaine HEGP braided sleeving offers flexible cable protection, high abrasion resistance and ease of application. Helagaine braided sleeves are specially woven to expand when compressed and contract when pulled.

HEGP provides a high level of surface coverage as well as a high rate of expansion for easy slip-over application. To achieve an optimal fit, it is available in 13 different sizes for diameters from 1mm to 66mm.

Helagaine HEGP braided sleeving is used in the automotive industry and in machine construction. These tubes are also used for smaller electrical appliances to avoid pockets of high temperature.

Cable protection braided sleeving HelaGaine HEGEMIP

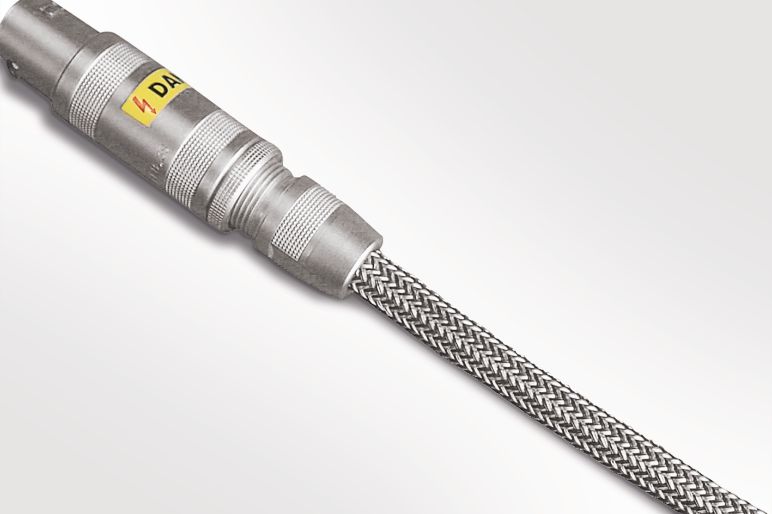

Cable protection braided sleeving HelaGaine HEGEMIPV0

Made of tin-plated copper and polyester threads, Helagaine HEGEMIP  cable protection sleeving braided sleeving offer electromagnetic (EMC) protection as well as secure cable bundling

The supporting inner tube makes insertion of wires easier and protects the sleeves from deformation during transport. Besides their excellent electromagnetic protection ratings, they are very resistant to abrasion. Both sleeves fulfil the requirements of the international EMI norm CISPR25 (10KHz to 1GHz).

Helagaine HEGEMIP electrical conduit is used to protect highly sensitive electronics in industries, such as:

  • Automotive
  • Aerospace
  • Military industries

The mix of materials makes the sleeving expandable and easy to apply. In contrast to purely copper braids, these sleeves can be bent and twisted and still return to their original form. As a result, they are particularly suitable for applications where there is movement.

Further cable conduits

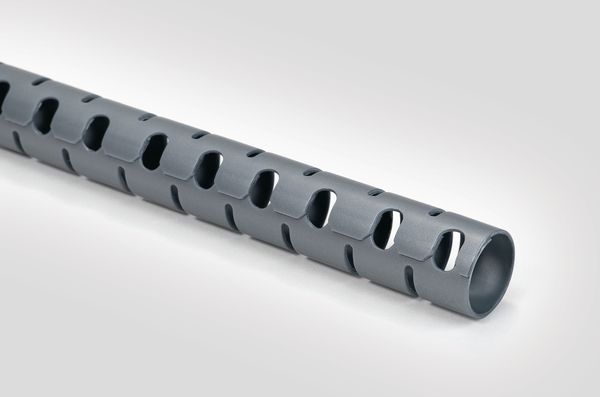

SPS-series cable protection spiral binding

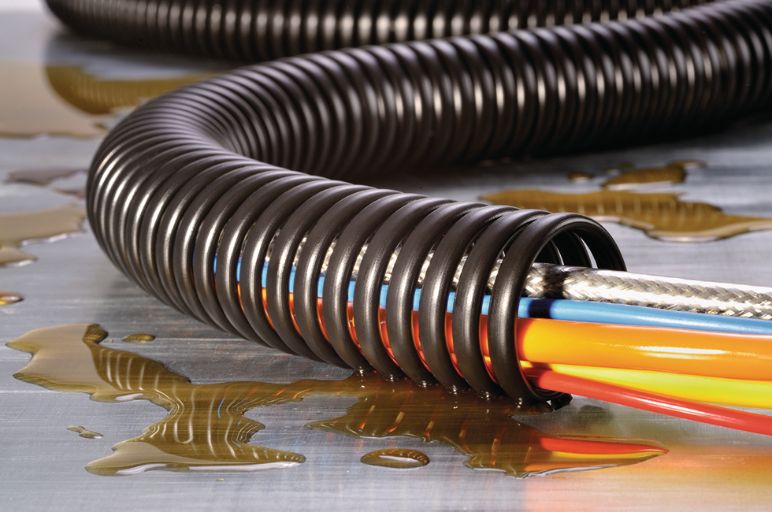

SPS-series cable protection spiral binding

SPS cable protection spiral binding is very robust and offers very good protection against mechanical stress and oils. Additionally SPS spiral binding is very abrasion resistant. It is available with much larger diameters (up to 50 mm) than other spiral binding and is ideal for larger cable bundles.

SPS spiral binding is especially suitable for  use in areas where high abrasion resistance and much larger cable diameters are needed, for example:

  • Automobile industry
  • Petrochemical industries
  • Heavy plant construction

Edge protection for sharp-edged cut-out sections

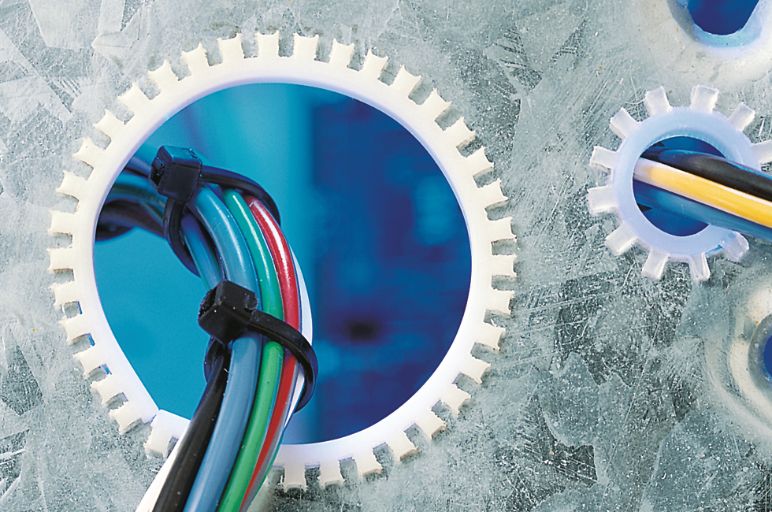

Edge protection for sharp-edged cut-out sections

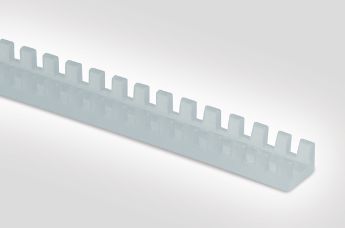

Flexiform edge protection is applied to the panel edge and is easily installed without the need for adhesives. The close-fitting profile protects cables effectively by preventing chafing.

Flexiform edge protection is used to protect cables routed through sharp-edged cut-out sections.

Flexible Cable Support, Heladuct Flex

Flexible Cable Support, Heladuct Flex

The Heladuct Flex flexible cable supports are a space-saving wiring system which holds the routed cable clearly open to view. Cables can be routed in or out over the whole length of the support. The supports can be rapidly mounted either with screws or an adhesive strip.

The premium foam bonding layer smooths over irregularities in the underlying surface and works particularly well on powder-coated surfaces. Due to their flexibility, it is possible to install the supports at angles of 90° and higher.

Heladuct Flex is commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.
