ANT Splice Protector Holder Crimp
Art.-No. 857-40300 | BRIDGE-CRIMP |

Copied
ANT Splice Bridges
ANT Splice Bridges
ANT Splice Protector Holder
ANT Splice Protector Holder
ANT Splice Protector Holder

    • Manages 12 x ANT/CRIMP Splice Protectors
    • Maximum splice protector length 60mm
    • Compatible with HellermannTyton Single Element and Hellamass Large Splice Trays
    Downloads
    Colour Yellow (YE)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BRIDGE-CRIMP
    Package Content packed in bag
    Product Family Fibre Splice Tray Accessories
    Product Group ANT Splice Protector Holder Crimp
    Splice Capacity 12
    Technical Description The HellermannTyton ANT/CRIMP splice protector holder (splice bridge) is suitable for use in the HellermannTyton single element and Hellamass Large splice trays. The splice prtotector holder manages a maximum of 12 x ANT/CRIMP splice protectors. All HellermannTyton single element splice trays accept 2 x splice protector holders excluding the Hellamass Large which holds a maximum of 24.
    Type BRIDGE-CRIMP

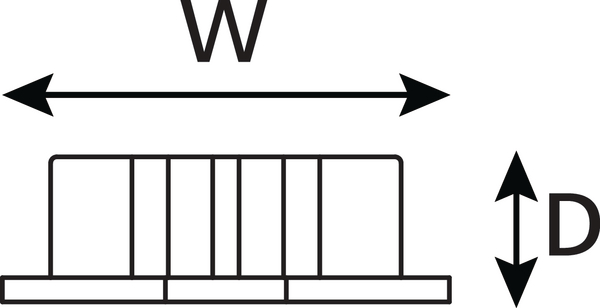

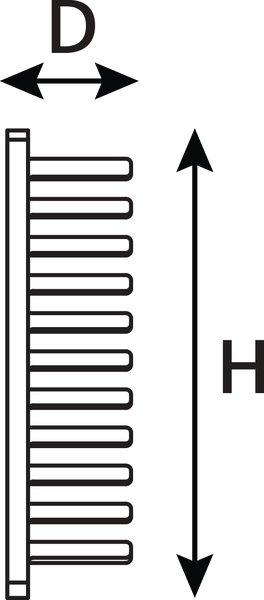

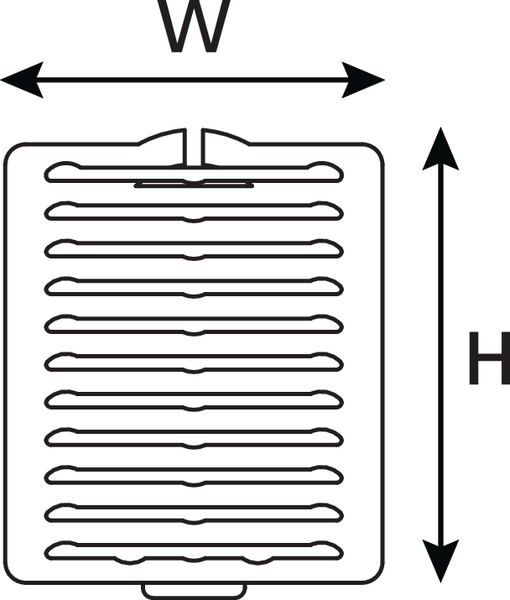

    Depth (D) 6mm
    Height (H) 22.9mm
    Width (W) 18.5mm
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660114816
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.01kg
    Packaging 1 - Width (m) 0.02m
