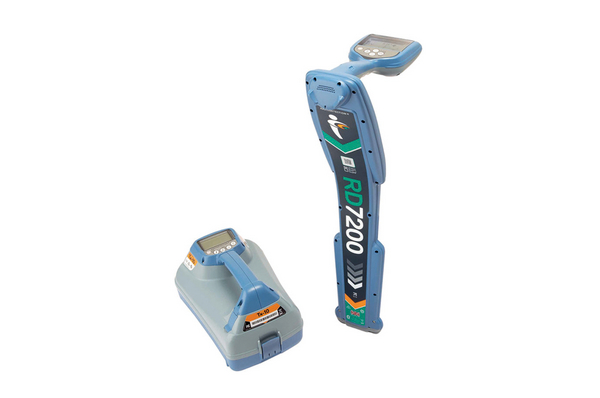

Cable Route Tracer
Art.-No. 911-02300 | RD7200-BU |

Copied

    • Sun light readable display
    • Low pitch and high pitch audio options with vibration alerts
    • Sensitive and accurate signal processing for reliable results
    • Compass Orientation
    • Power filters
    • Self-calibration check
    • Haptic swing feedback
    • Strike-Alert, warns of the presence of shallow cables
    • True-Depth and current readout
    Downloads
    Application Locating the position / path of buried pipes and cables, detecting and pinpointing insulation faults on buried pipes and cables
    Colour Blue (BU)
    Description Cable and pipe locator
    PART DESCRIPTION RD7200-BU
    Package Content packed in bag
    Part No. RD7200
    Power Supply 2 × D-Cell Alkaline Batteries
    Product Group Cable Route Tracer
    Type RD7200
    Height (H) 125mm
    Length (L) 648mm
    Width (W) 286mm
    IP-Rating IP65
    Operating Temperature -20 °C to +50 °C
    ROHS compliant Yes
    Shelf Life 24 months
    Specifications
    GTIN-13 / EAN 6005243027917
    Minimum Order Quantity 1
    Packaging 1 - Height (m) 0.33m
    Packaging 1 - Length (m) 0.7m
    Packaging 1 - Qty 1
    Packaging 1 - Volume (m³) 0.06006m³
    Packaging 1 - Width (m) 0.26m
