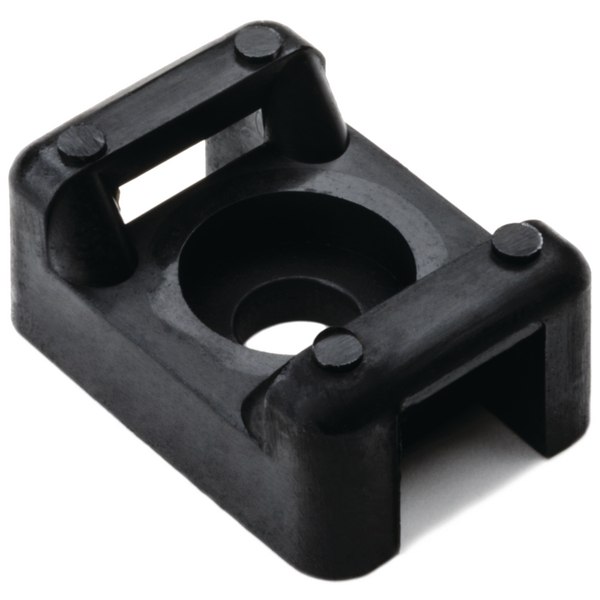

Cable tie mount for screw fixation, Ø5.1 mm, #10 (M5) Screw, black, 100pcs.
Art.-No. 151-30600 | CTM3-PA66-BK Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials

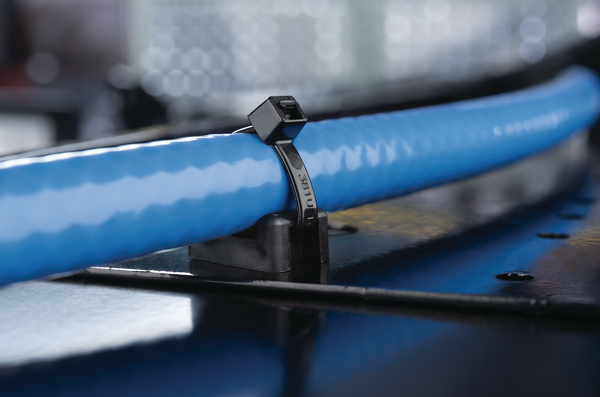

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
Colour Black (BK)
Fixation Method Screw Mount
For Ties T18 - T120
Material Polyamide 6.6 (PA66)
Mounting Screw Type #10 (M5) Screw
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION CTM3-PA66-BK
Product Family CTM with curved design for big bundle diameters
Product Group Screw fixing mounts
for Hole ∅ (FH) 5.1 mm

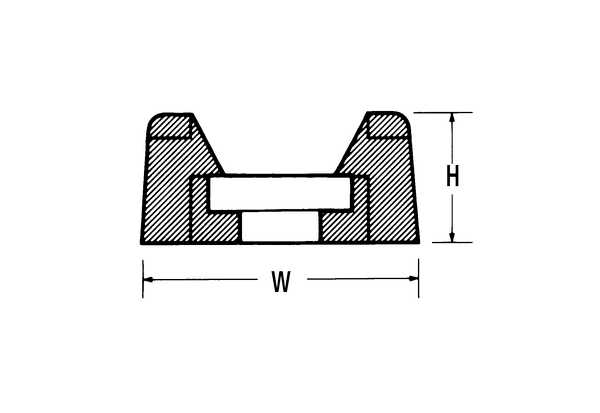

Height (H) 9.40mm

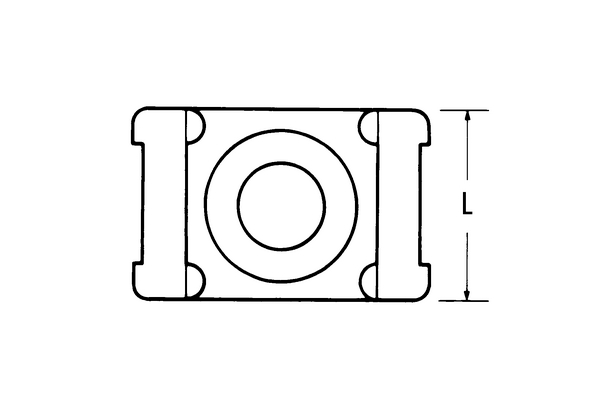

Length (L) 21.8mm

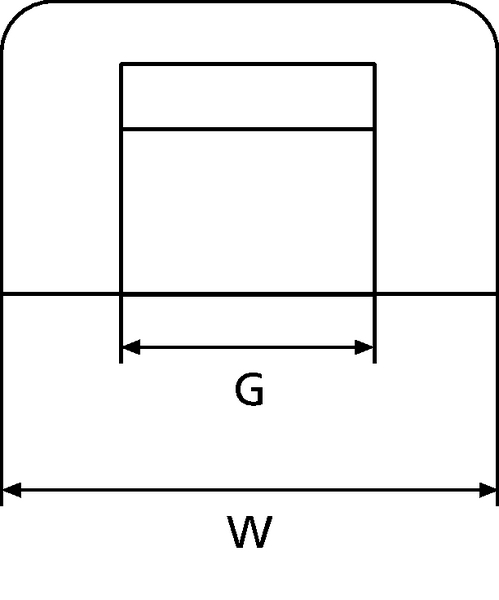

Strap Width max. (G) 7.9mm
Strap Width max. (G) 0.31"

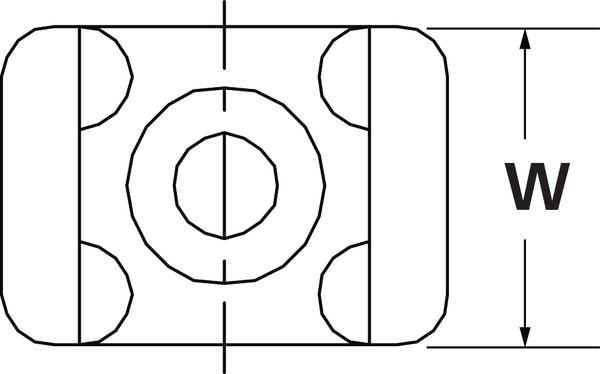

Width (W) 15.5mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
GTIN-13 / EAN 4031026276311
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00094
Packaging 1 - Weight (kg) 0.167001kg
Packaging 1 - Width (m) 0.125m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.511m
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0318
Packaging 3 - Width (m) 0.311m
UNSPSC Key 39121717
