Cable tie mount for screw fixation, Wmax=4.0mm, ⌀2.2 mm, natural, 100pcs.
Art.-No. 151-01685 | TY3G1-PA66-NA |

Copied
Cable Tie Mount TY3G1(S).
TY-Series mounts with rectangle design.

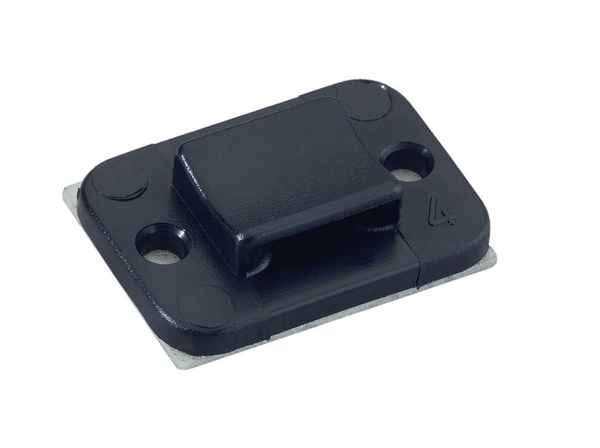

TY3 G1 TY3G1S Black Fixing Cable Tie Screw Mount

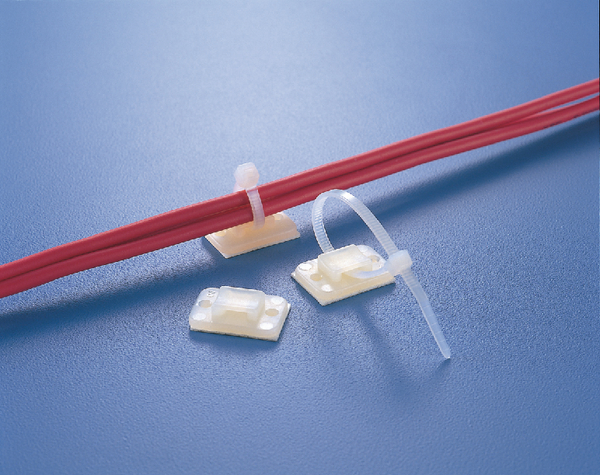

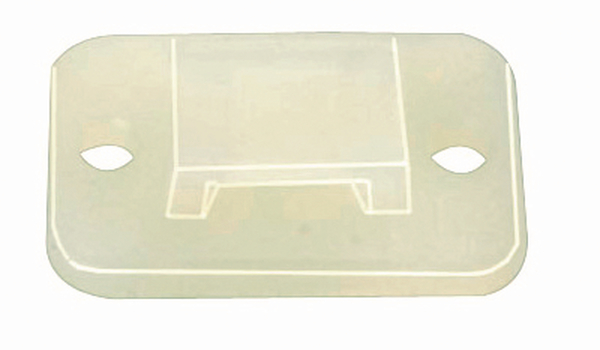

TY3G1 TY3G1S Natural Screw Fixing Cable Tie Mount

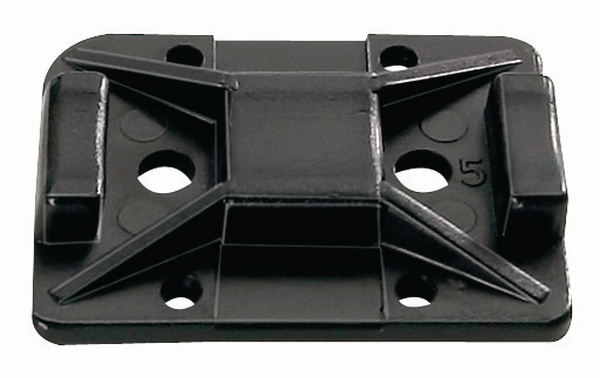

TY8G1 TY8G1S Black Screw Fixing Cable Tie Mount

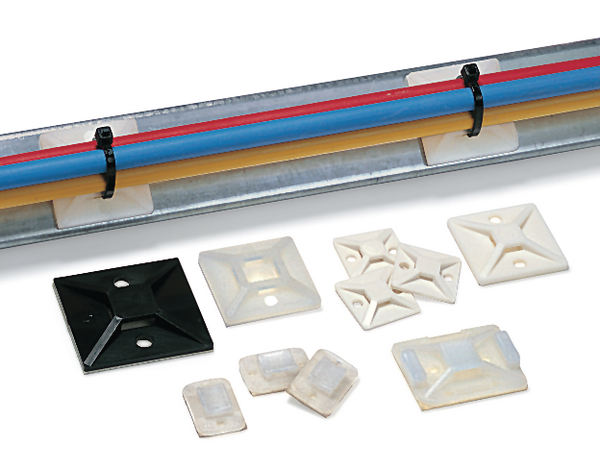

Cable Tie Mounts MB and TY.

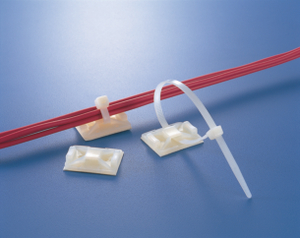

TY-Series Mounts with rectangle design, self-adhesive.

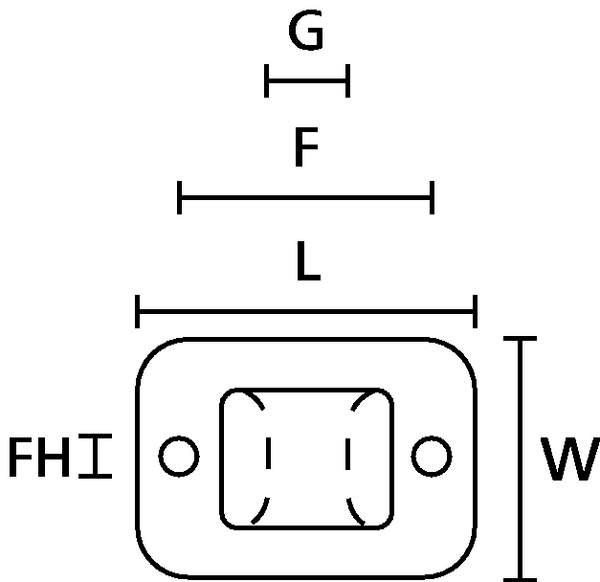

TY3G1, TY3G1S (plan view)

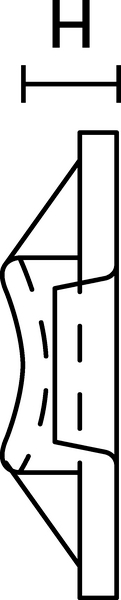

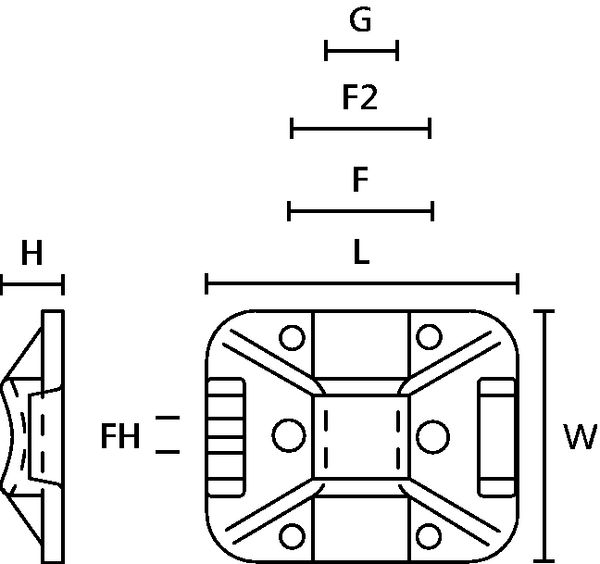

TY8G1 (side view)

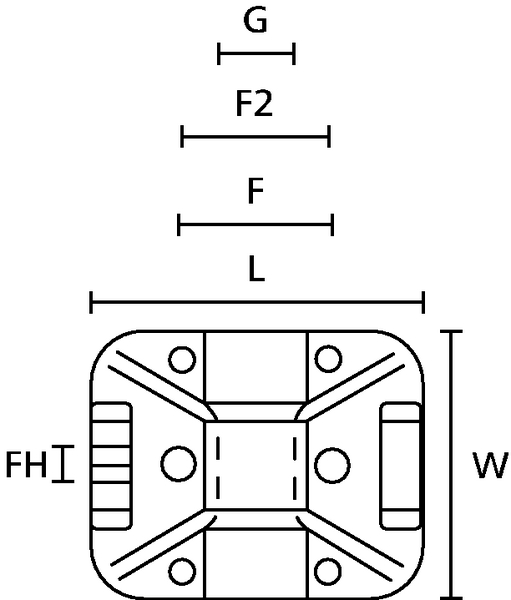

TY8G1, TY8G1S (plan view)

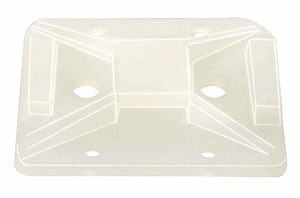

Cable Tie Mounts TY8G1 (S)

    • Screwable or self-adhesive versions
    • Concave design to support larger diameter cables and bundles
    • 2-way mounting base for safe guiding of cables and conduits
    • Suitable for applications with minimal space
    • Mounted before cable installation
    • Usable with standard cable ties
    Downloads
    Application These products are designed for simple yet robust installation in a wide variety of applications. TY-Series mounts with a rectangular design are commonly used in telecoms equipment, switchgear and control cabinets. With its small and compact design TY3G1 offers an easy and rapid assembly for many different applications.
    Colour Natural (NA)
    Description CRADLE SELF ADHESIVE BLACK
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TY3G1-PA66-NA
    Package Content 100pcs.
    Package Content packed in bag
    Part No. TY3BKNA
    Product Family TY-Series longish design
    Product Group Screw Fixing Cable Tie Mounts
    Type TY3G1
    Fixing Hole Centres (F) 15.0mm
    Height (H) 3.7mm
    Length (L) 20.0mm
    Strap Width max. (G) 4.0mm
    Width (W) 14.0mm
    for Hole ⌀ (FH) 2.2 mm
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242010989
    UNSPSC Key 31162305
