Glands A27

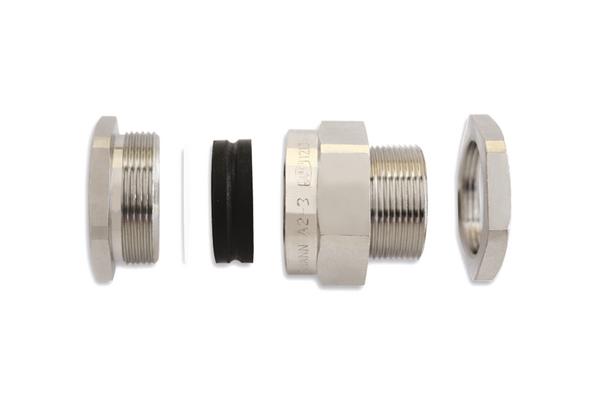

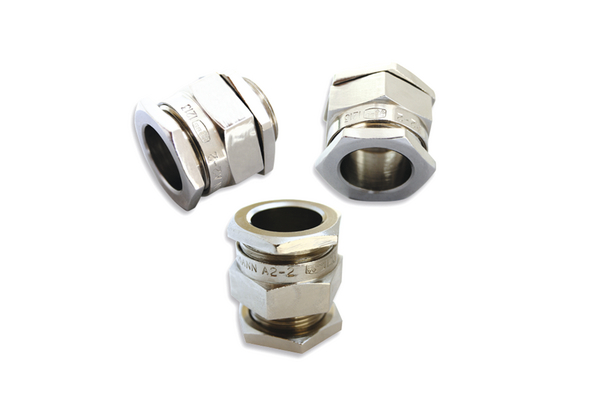

A2 Compression Glands, Article number: 911-01150

Features

  • Easy to install
  • Displacement seal concept ensures effective seal to the outer sheath
  • Novel seal design accommodates wide cable range
  • High quality nickel plating

Application

Nickel-plated brass gland for use with all types of ‘unarmoured’ cable. May be used both indoors and outdoors.

Cable ∅ max 69.0mm
Cable ∅ min 57.0mm
Colour Metal (ML)
Description CABLE GLANDS No 7 A2 COMPRESSION
GLOBAL PART DESCRIPTION A27-NPB-ML
Part No. A27
Product Family A2 Compression Glands
Product Group Glands
Nominal ∅ 75mm
Material Nickel Plated Brass (NPB)
Material NPB
EAN / GTIN 6005242040306
