27/10/2025

Cable tie inside serrated, 535x13.2mm, ⌀12.0-150mm, red, 50pcs.
Art.-No. 111-02177 | LK5-PA66-RD |

Copied
LK-Series.
LK-Series – in-between size to T-Series.
LK-Series – in-between size to T-Series.
LK-Series

    This product is not available anymore.
    • Inside serrated cable ties for a strong hold around bundles
    • Various materials and sizes are available
    • High tensile strength with very low insertion force
    • Easy application either manually or with an application tool
    Downloads e-Learning
    Application For bundling and securing cables, pipes, hoses and other elements. These cable ties can be used for a countless number of applications. The LK-Series is similar to T-Series but offers in-between sizes to fit individual customer needs.
    Colour Red (RD)
    Description LK5 RD C/TIE MARKED
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 1115N
    PART DESCRIPTION LK5-PA66-RD
    Package Content 50pcs.
    Package Content packed in bag
    Part No. LK5RDM
    Product Family LK-Series
    Product Group Cable ties in-between size to T-Series
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type LK5
    Variant Inside Serrated

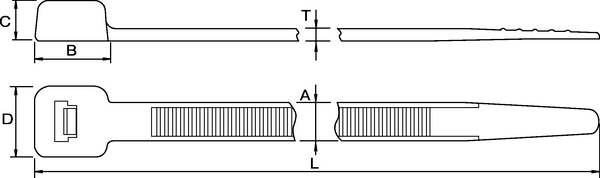

    Bundle ⌀ max. 150mm
    Bundle ⌀ min. 12.0mm
    Length (L) 535mm
    Thickness (T) 1.8mm
    Width (W) 13.2mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242024986
    UNSPSC Key 39121703
