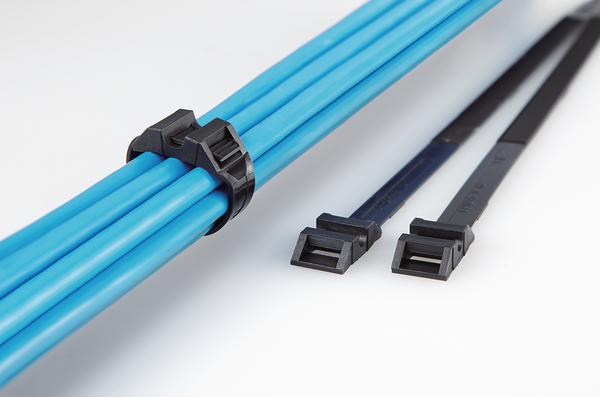

Cable tie outside serrated for narrow space, 355x9mm, Ø25.0-92.0mm, black, 100pcs.
Art.-No. 112-00401 | LPH350-PA66HIR(S)-BK Details

  • High impact modifed cable ties are also available
  • Good tensile strength with a single – or a double bridged head
  • Outside serration allows for a smooth surface to the bundle
  • Design protects against damage to cable insulation
  • Low profile head for optimised use especially in restricted spaces
  • Strap is threaded parallel through the low profile head
Show more
Application LPH cable ties are made of Polyamide 6.6 materials. The design with its serration on the outside provides a smooth surface to the bundle. Any damage to the insulation can be avoided. The flat head is ideal in areas with restricted space. They are mainly used within the electrical industry but the tough design is perfectly suited to a variety of indoor and outdoor applications.
Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK10-SB, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Fixation Method Others
Identification Plate Position none
Key product features for narrow space
Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION LPH350-PA66HIR(S)-BK
Part No. LPH350
Product Family LPH-Series
Product Group Cable ties with low profile head
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Outside Serrated

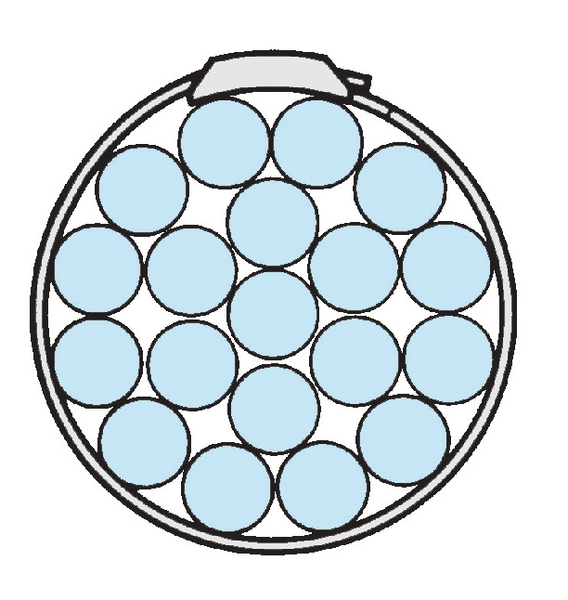

Bundle Diameter max (metric) 92.0mm
Bundle ∅ min. 25.0mm
Cable Tie Head Height (metric) 6mm
Cable Tie Head Length (metric) 23mm
Cable Tie Head Width (metric) 13mm
Length (L) 355mm
Min.Tensile Strength 480N
Thickness (T) 1.7mm
Width (W) 9mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications IEC 60092 series
GTIN-13 / EAN 5022660097164
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.508m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00309
Packaging 1 - Weight (kg) 0.440001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 9.602kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 213.04kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
