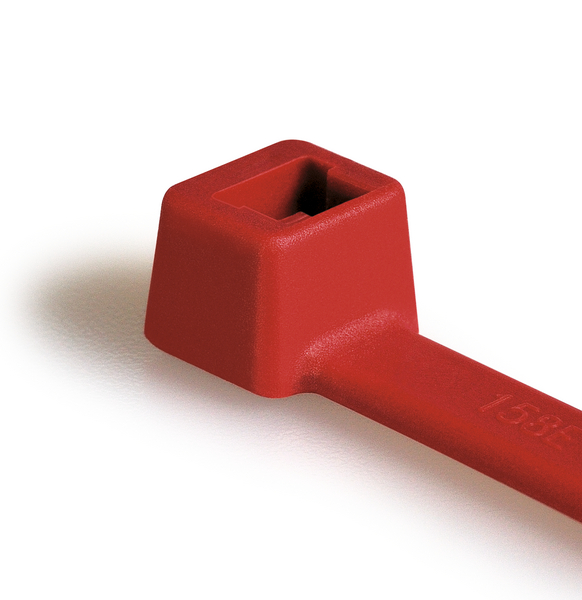

Cable tie inside serrated, 225x7.6mm, ⌀5.0-55.0mm, red, 100pcs.

Art.-No. 111-02148

| T120S-PA66-RD

|

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles.

T-Series cable ties available in different materials, sizes and colours.

T-Series cable ties – ideally suited for colour coding.

Available in a wide range of materials and sizes
High tensile strength with very low insertion force
Only high quality plastic is used meeting recycling targets
Inside serrated cable ties for a strong hold onto bundles
Ergonomic bent tail offers quick and simple installation
Easy application either manually or with an application tool

Downloads e-Learning

More products in this product group:

Cable Ties Polyamide 6.6 standard

Base Data

Application	T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Colour	Red (RD)
Description	CABLE TIES INSULOK 278 x 7.8mm RED
Identification Plate Position	none
Material	Polyamide 6.6 (PA66)
Min.Tensile Strength	535N
PART DESCRIPTION	T120S-PA66-RD
Package Content	100pcs.
Package Content packed in	bag
Part No.	T120SRD
Product Group	Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T120S
UV-Stabilised	No
Variant	Inside Serrated

Product Dimensions


Bundle ⌀ max.	55.0mm
Bundle ⌀ min.	5.0mm
Cable Tie Head Length (metric)	10.0mm
Cable Tie Head Width (metric)	13.15mm
Height (H)	7.7mm
Length (L)	225mm
Strap Width max. (G)	0.52"
Thickness (T)	1.6mm
Width (W)	7.6mm

Specifications

Flammability	UL 94 V2
Halogen-free	Yes
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Accessories

EVO9 110-80000
Manual tensioning tool plastic housing

MK10-SB 110-10001
Manual tensioning tool for cable ties with low profile head
