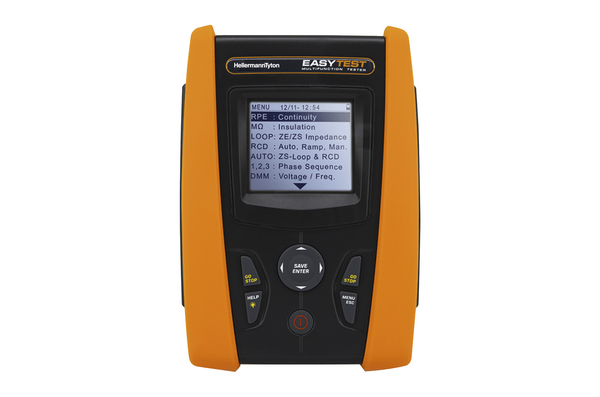

Multifunctional Installation Compliance Tester
Art.-No. 911-02006
| EASYTEST-BK/OG
|
Copied
- Polarity test
- AUTO sequence
- Insulation resistance
- Phase Sequence
- Wiring polarity checker
Show more
Show less
More products in this product group:
| Application | To verify the safety and compliance of residential and industrial electrical installations. |
| CAT-Rating | CATIV 300V |
| Colour | Orange (OG), Black (BK) |
| Content Accessories | Calibration report, Universalkitcombi, C2006 + downloadable Software, C2033X, Borsa75 |
| Description | Mulltifunction Installation |
| PART DESCRIPTION | EASYTEST-BK/OG |
| Package Content packed in | box |
| Part No. | EASYTEST |
| Power Supply | 6 x 1.5V AA Batteries |
| Product Family | EASYTEST |
| Product Group | Multifunction Installation Compliance Tester |
| Type | EASYTEST |
| Typical Application | To verify the safety and compliance of residential and industrial electrical installations. |
| Height (H) | 75mm |
| Length (L) | 225mm |
| Width (W) | 165mm |
Feature
[AC Voltage (V)]
Parameter
[50/ 100/ 250/ 500/ 1000 V]
Accuracy
[±3.0% + 2 Digit(s)]
Feature
[DC Current (A)]
Parameter
[6mA/10mA/ 30mA/ 100mA/ 300mA/ 500mA/ 650mA/ 1000 mA]
Accuracy
[±5.0% + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[50/ 100/ 250/ 500/ 1000 V]
Accuracy
[±5.0% + 2 Digit(s)]
Feature
[Frequency (Hz)]
Parameter
[50/60 Hz]
Feature
[Resistance (Ω)]
Parameter
[0.05MΩ/ 0.10MΩ/ 0.23MΩ/ 0.25MΩ/ 0.50MΩ/ 1.00MΩ/ 100 MΩ]
Accuracy
[±5.0% + 3 Digit]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
50/ 100/ 250/ 500/ 1000 V |
±3.0% + 2 Digit(s) |
|
DC Current (A) |
6mA/10mA/ 30mA/ 100mA/ 300mA/ 500mA/ 650mA/ 1000 mA |
±5.0% + 3 Digit(s) |
|
DC Voltage (V) |
50/ 100/ 250/ 500/ 1000 V |
±5.0% + 2 Digit(s) |
|
Frequency (Hz) |
50/60 Hz |
|
|
Resistance (Ω) |
0.05MΩ/ 0.10MΩ/ 0.23MΩ/ 0.25MΩ/ 0.50MΩ/ 1.00MΩ/ 100 MΩ |
±5.0% + 3 Digit |
