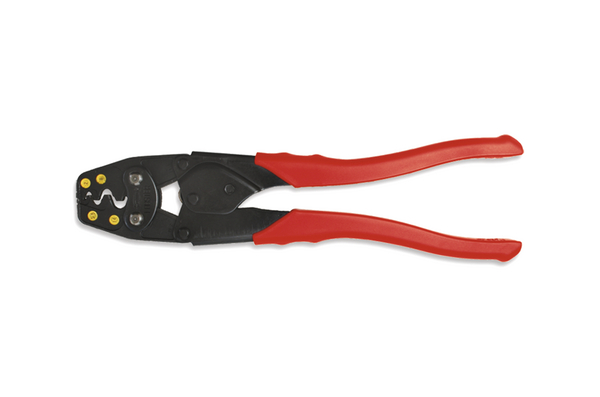

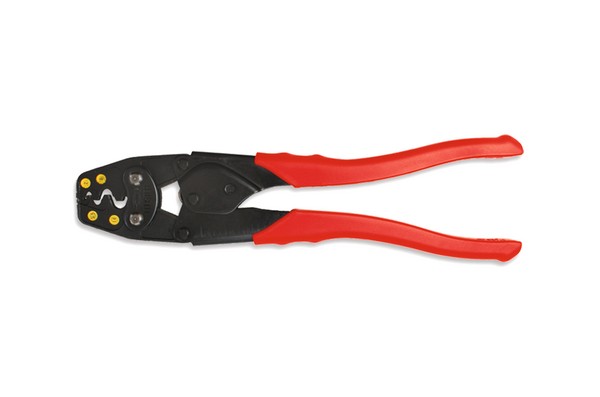

Uninsulated Crimp Tool
Art.-No. 911-00241
| AK19-MET/PL-BK/RD
|
Copied
- Designed for crimping uninsulated electrical terminals.
- Lobster-style hand crimper designed for controlled terminal compression.
- Incorporates a ratchet release mechanism for controlled operation.
- Features a control-cycle mechanism to support consistent crimping.
More products in this product group:
| Colour | Red (RD), Black (BK) |
| Description | CRIMPER UNINSULATED TERM LOBSTER 2-14mm |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | AK19-MET/PL-BK/RD |
| Part No. | AK19 |
| Product Family | AK19 |
| Product Group | Uninsulated Crimp Tool |
| Type | AK19 |
| Typical Application |
Light‑duty crimp tools feature Fixed, color‑coded crimp cavities Single‑stage compression Light‑duty crimp tools are intended for low‑volume production, maintenance, repair, and field wiring. Common insulation color codes: Red: 0.5 – 1.5 mm² (22–16 AWG) Blue: 1.5 – 2.5 mm² (16–14 AWG) Yellow: 4.0 – 6.0 mm² (12–10 AWG) |
