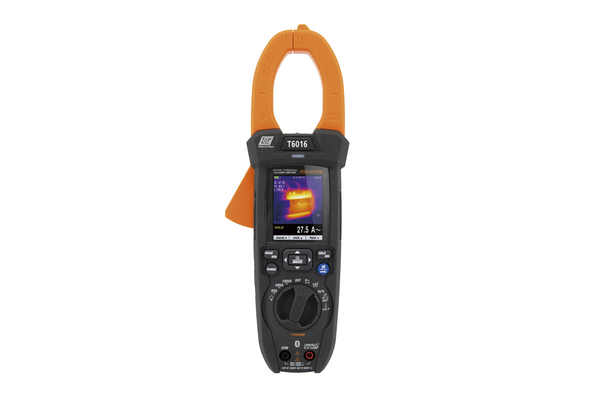

TRMS Thermal Clamp Meter 1500V DC
Art.-No. 911-01971
| ECLIPSE-MET/PL-GY/OG
|
Copied
- Jaw size: 40mm
- Detects AC voltage without contact
- Data logger and graph
- Diode test
- Bluetooth connectivity with HTMercury APP
- Laser pointer
- White LED illuminator
Show more
Show less
More products in this product group:
| Application | A clamp meter for measuring power/harmonics with Wi-Fi connection. To measure AC, DC, AC+DC current up to 1000A as well as DC voltage up to 1500V, AC, AC+DC voltage up to 1000V. |
| CAT-Rating | CATIII 1000V, CATIV 600V |
| Colour | Grey (GY), Orange (OG) |
| Content Accessories | Test Leads, Micro SD card (8GB card), K-Type Temperature Probe, Pouch |
| Description | Clamp Meter Digital 1000AC/DC |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | ECLIPSE-MET/PL-GY/OG |
| Package Content | 1 |
| Package Content packed in | box |
| Part No. | ECLIPSE |
| Power Supply | 1 x 7.2 Li-ION Rechargeable Battery (1200mAh) |
| Product Group | TRMS Thermal Clamp Meter 1500V DC |
| Type | ECLIPSE |
| Height (H) | 55mm |
| Length (L) | 190mm |
| Temperature Measuring Range (+Accuracy) | -40 to + 1000°C (±1.5% + 3°C) |
| Width (W) | 75mm |
Feature
[AC Voltage (V)]
Parameter
[6/ 60/ 600/ 1000 V]
Accuracy
[±2.5% + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 6000µF/60mF/ 100mF]
Accuracy
[±3.0% + 8 Digit(s)]
Feature
[DC Current (A)]
Parameter
[60/ 600/ 1000 A]
Accuracy
[±2.0 % + 8 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[600m V/ 6/ 60/ 600/ 1500 V]
Accuracy
[±0.8% + 5 Digit(s)]
Feature
[Display]
Parameter
[6 000 dots]
Feature
[Resistance (Ω)]
Parameter
[600/ 6kΩ/ 60kΩ/ 6MΩ/ 60 MΩ]
Accuracy
[±1.0% + 10 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
6/ 60/ 600/ 1000 V |
±2.5% + 5 Digit(s) |
|
Capacitance (F) |
60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 6000µF/60mF/ 100mF |
±3.0% + 8 Digit(s) |
|
DC Current (A) |
60/ 600/ 1000 A |
±2.0 % + 8 Digit(s) |
|
DC Voltage (V) |
600m V/ 6/ 60/ 600/ 1500 V |
±0.8% + 5 Digit(s) |
|
Display |
6 000 dots |
|
|
Resistance (Ω) |
600/ 6kΩ/ 60kΩ/ 6MΩ/ 60 MΩ |
±1.0% + 10 Digit(s) |
