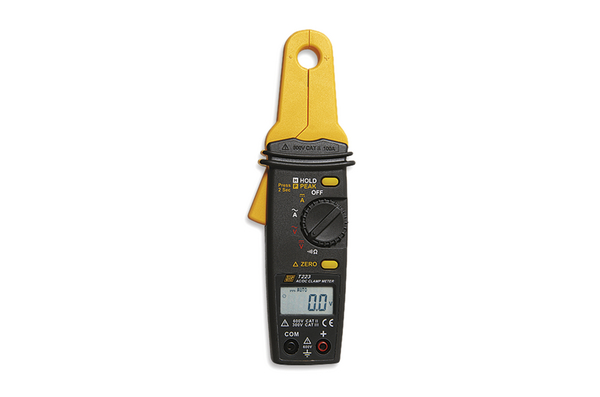

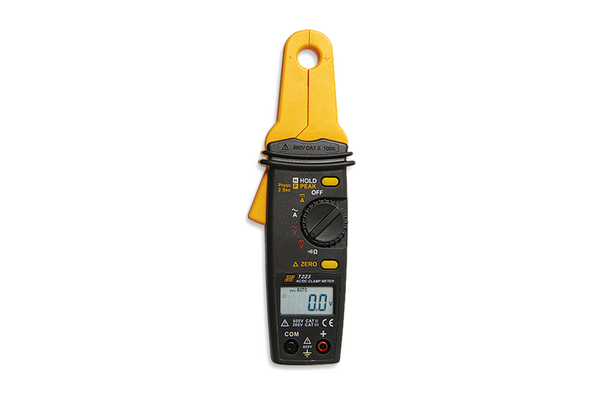

Digital Clamp Meters
Art.-No. 911-00038 | T223-MET/PL-BK/YE |

Copied

    • Jaw size 12.5 mm
    • Concurrent reading
    • Resistance
    • Continuity
    Downloads
    Application A high-resolution AC/DC digital clamp meter used by electricians, technicians and researchers to measure current safely and efficiently without interrupting the circuit
    CAT-Rating CATIII 300V
    Colour Black (BK), Yellow (YE)
    Content Accessories Carry Pouch
    Description Clamp Meter Digital AC/DC 100A High Resolution
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION T223-MET/PL-BK/YE
    Package Content 1pc.
    Package Content packed in box
    Part No. T223
    Power Supply 2 x 1.5 V AA Batteries
    Product Family T223 100 A AC/DC Automotive
    Product Group Digital Clamp Meters
    Type T223
    AC Current (+Accuracy) 1 mA (±2.0 % + 10 Digit), 10 mA (±2.0 % + 10 Digit), 10 A (±2.0 % + 10 Digit), 100 A (±2.0 % + 10 Digit))
    AC Voltage (+Accuracy) 0.1 V (±1.5 % + 5 Digit), 600 V(±1.5 % + 5 Digit)
    DC Current (+Accuracy) 1 mA (±2.0 % + 10 Digit), 10 mA (±2.0 % + 10 Digit), 10 A (±2.0 % + 10 Digit), 100 A (±2.0 % + 10 Digit))
    DC Voltage (+Accuracy) 0.1 V (±1.5 % + 5 Digit), 600 V(±1.5 % + 5 Digit)
    Height (H) 34mm
    Length (L) 202mm
    Resistance (+Accuracy) 1.10kΩ (±1% + 3 Digit)
    Width (W) 70mm
    Feature
    [AC Current (A)]
    Parameter
    [1 mA, 10 mA, 10 A, 100 A]
    Accuracy
    [±2 % + 10 Digit(s)]
    Feature
    [AC Voltage (V)]
    Parameter
    [100 mV, 600 V]
    Accuracy
    [±2.0 % + 3 Digit(s)]
    Feature
    [DC Current (A)]
    Parameter
    [1 mA, 10 mA, 10 A, 100 A]
    Accuracy
    [±2 % + 10 Digit(s)]
    Feature
    [DC Voltage (V)]
    Parameter
    [100 mV, 600 V]
    Accuracy
    [± 0.08 % + 2 Digit(s)]
    Feature
    [Resistance (Ω)]
    Parameter
    [1.10 kΩ]
    Accuracy
    [±1 % + 3 Digit(s)]
    Feature Parameter Accuracy
    AC Current (A)
    		 1 mA, 10 mA, 10 A, 100 A
    		 ±2 % + 10 Digit(s)
    AC Voltage (V)
    		 100 mV, 600 V
    		 ±2.0 % + 3 Digit(s)
    DC Current (A)
    		 1 mA, 10 mA, 10 A, 100 A
    		 ±2 % + 10 Digit(s)
    DC Voltage (V)
    		 100 mV, 600 V
    		 ± 0.08 % + 2 Digit(s)
    Resistance (Ω)
    		 1.10 kΩ
    		 ±1 % + 3 Digit(s)
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005242054099
