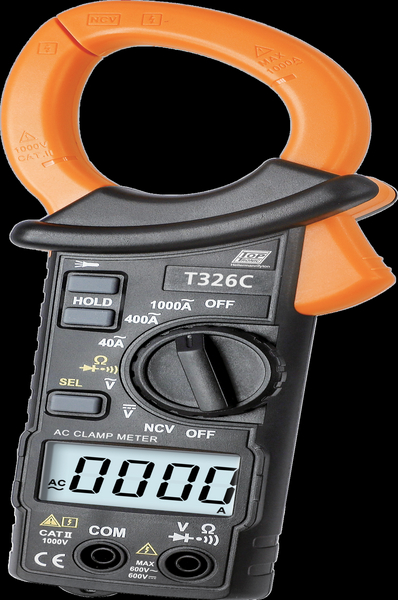

High precision digital clamp meter
Art.-No. 911-02409
| T326C-GY
|
Copied
- Jaw size : 45mm
- Backlit LCD discplay
- 3 times/second measurement rate
- Diode, Non-Contact EF Detection (NCV)
- Data Hold
- On/Of buzzing
- Auto Power off
- Continuity
Show more
Show less
More products in this product group:
| CAT-Rating | CATII 1000V |
| Colour | Grey (GY) |
| Content Accessories | Manual,Test Leads, Pouch, Temprature Probe, 1.5V AAA Battery x 2 |
| Description | CLAMP METER DIGITAL 1000A AC 600V DC |
| PART DESCRIPTION | T326C-GY |
| Package Content packed in | box |
| Part No. | T326C |
| Power Supply | 1.5V AAA Battery |
| Product Family | T326C |
| Product Group | Digital Clamp Meters |
| Type | T326C |
| Typical Application | A clamp meter is an electrical testing tool used to measure current in a conductor without making physical contact or interrupting the circuit. It operates by clamping around the conductor and using electromagnetic induction to detect the current flow, making it ideal for measuring high currents and troubleshooting electrical systems safely and efficiently |
| Height (H) | 35mm |
| Length (L) | 222mm |
| Temperature Measuring Range (+Accuracy) | -20°C to 1000°C (±1.2% + 5 Digit) |
| Width (W) | 90mm |
Feature
[AC Current (A)]
Parameter
[60A/ 1000 A]
Accuracy
[±2.5% + 100 Digit ]
Feature
[AC Voltage (V)]
Parameter
[6V/ 60V/ 600 V]
Accuracy
[±1.2% + 10 DIGITS]
Feature
[Capacitance (F)]
Parameter
[6mF / 60mF]
Accuracy
[±3.0 % + 30 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[6V/ 60V/ 600 V]
Accuracy
[±1.0% + 2 Digit(s)]
Feature
[Display]
Accuracy
[4000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10Hz - 1Kl-lz]
Accuracy
[±1.2 % + 3 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[6MΩ/ 60 MΩ]
Accuracy
[±1.2 % + 3 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60A/ 1000 A |
±2.5% + 100 Digit |
|
AC Voltage (V) |
6V/ 60V/ 600 V |
±1.2% + 10 DIGITS |
|
Capacitance (F) |
6mF / 60mF |
±3.0 % + 30 Digit(s) |
|
DC Voltage (V) |
6V/ 60V/ 600 V |
±1.0% + 2 Digit(s) |
|
Display |
4000 Counts |
|
|
Frequency (Hz) |
10Hz - 1Kl-lz |
±1.2 % + 3 Digit(s) |
|
Resistance (Ω) |
6MΩ/ 60 MΩ |
±1.2 % + 3 Digit(s) |
