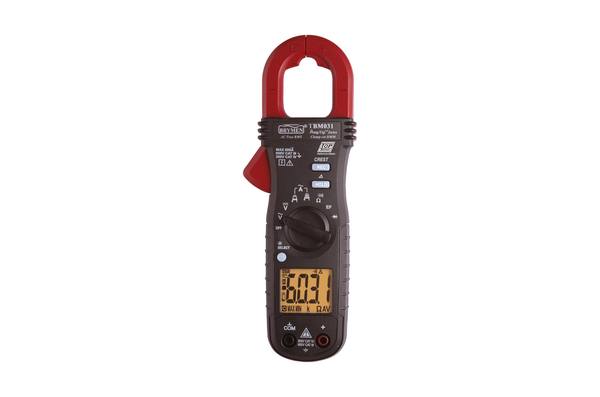

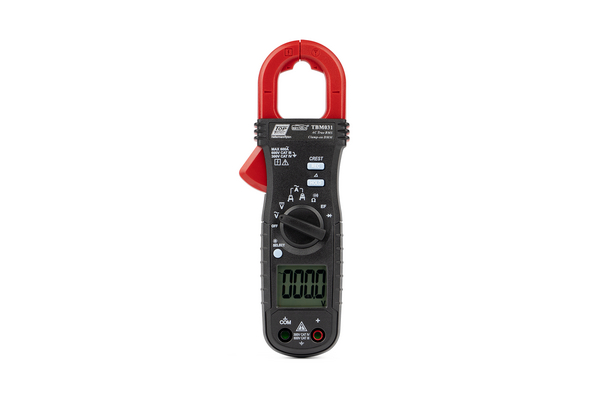

TBM031-MET/PL-BK/RD
Art.-No. 911-01962
| TBM031-MET/PL-BK/RD
|
Copied
- Jaw size: 30mm
- AmpTipTM
- BeepLitTM
- Continuity and Diode tests
- Non-contact EF detection (NCV)
- Crest MAX/MIN (PEAK Hold)
- In-rush currents (5ms)
- 3 5/6 Digits 6 000 Counts
More products in this product group:
| Application | TBM031 Clamp Meter is a compact, versatile tool for electricians, used for non-invasive AC current measurement (up to 600A, voltage and continuity ideal for troubleshooting live systems in tight spaces like residential/commercial panels. ?Its key application is measuring load/leakage current by clamping around a single conductor without breaking the circuit ensuring safety and accuracy. |
| CAT-Rating | CATIII 600V, CATIV 300V |
| Colour | Black (BK), Red (RD) |

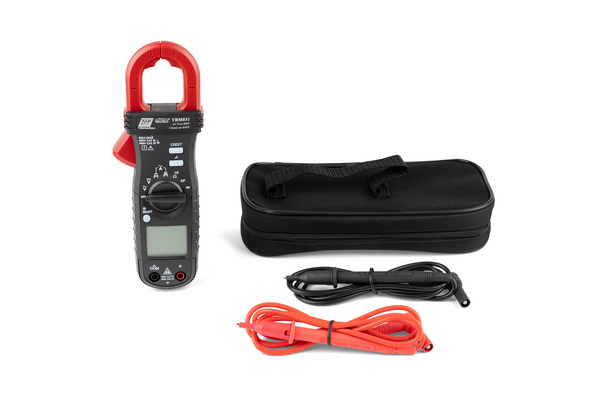

| Content Accessories | Test leads, carry pouch |
| Description | Clamp meter Digital TRMS 600A AC |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM031-MET/PL-BK/RD |
| Package Content packed in | bag |
| Part No. | TBM031 |
| Power Supply | 2X 1.5V AAA Batteries |
| Product Family | TBM031 |
| Product Group | Digital Clamp Meter |
| Type | TBM031 |
| AC Current (+Accuracy) | 60 – 600A (±1.0% + 5 Digit) |
| AC Voltage (+Accuracy) | 600V (±1.5% + 5 Digit) |
| DC Voltage (+Accuracy) | 600V (±1.0% + 5 Digit) |
| Height (H) | 32mm |
| Length (L) | 188mm |
| Resistance (+Accuracy) | 600Ω, 6KΩ (±1.0% + 5 Digit) |
| Width (W) | 66mm |
Feature
[AC Current (A)]
Parameter
[60/ 600 A]
Accuracy
[±1.0 % + 5 DIGIT]
Feature
[AC Voltage (V)]
Parameter
[600 V]
Accuracy
[± 1.5 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600 A]
Accuracy
[±1.5 % + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[600 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Resistance (Ω)]
Parameter
[600Ω, 6KΩ]
Accuracy
[± 1.0 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60/ 600 A |
±1.0 % + 5 DIGIT |
|
AC Voltage (V) |
600 V |
± 1.5 % + 5 Digit(s) |
|
DC Current (A) |
600 A |
±1.5 % + 5 Digit(s) |
|
DC Voltage (V) |
600 V |
±1.0 % + 5 Digit(s) |
|
Display |
3 Digit(s) |
6 000 Counts |
|
Resistance (Ω) |
600Ω, 6KΩ |
± 1.0 % + 5 Digit(s) |
