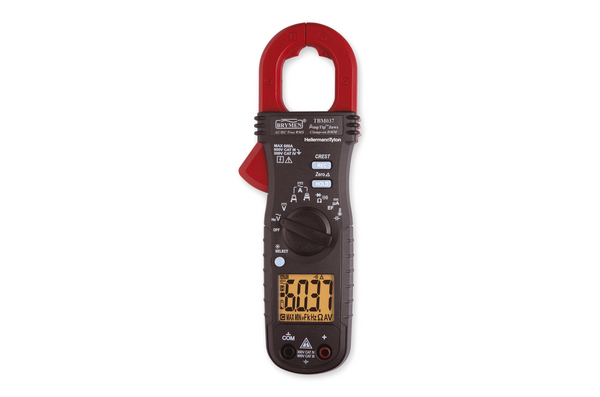

TBM037-TRMS 600A AC/DC
Art.-No. 911-01968
| TBM037-MET/PL-BK/RD
Copied
- BeepLit
- Jaw size 26mm Hall-effect
- Non-contact EF detection
- Crest max/min (peak hold)
- In-rush currents (5ms)
- DCµA for HVAC flame sensors
More products in this product group:
| Application | The TBM037 is designed for high-accuracy, non-invasive electrical testing in industrial, mining and construction environments. it features TRUE RMS measurment, 600V AC/DC, and specialized functions line in-rush current measurement and AmpTip for small conductor accuracy |
| CAT-Rating | CATIII 600V, CATIV 300V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Soft carrying pouch |
| Description | Digital Clamp Meter 600A AC/DC |
| Digits in display | 6000 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM037-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | bag |
| Part No. | TBM037 |
| Power Supply | 2 x 1.5V AAA batteries |
| Product Family | TBM037 |
| Product Group | Digital Clamp Meter |
| Type | TBM037 |
| AC Current (+Accuracy) | 60A (1.0% + 5 Digit) |
| AC Voltage (+Accuracy) | 600V (1.6% + 5 Digit) |
| Capacitance (+Accuracy) | 200.0μF, 2500μF (2.0% + 4 Digit) |
| DC Current (+Accuracy) | 200μA, 2000μA (1.0% + 5 Digit) |
| DC Voltage (+Accuracy) | 600V (1.0% + 5 Digit) |
| Height (H) | 32mm |
| Length (L) | 188mm |
| Resistance (+Accuracy) | 600Ω, 60kΩ, 600kΩ, 6000kΩ (1.0% + 5 Digit) |
| Temperature Measuring Range (+Accuracy) | -40.0°C to 400°C (1.0% + 1.0°C) |
| Width (W) | 66mm |
Feature
[AC Current (A)]
Parameter
[60 - 600 A]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[600 V]
Accuracy
[±1.5% + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[200µF/ 2500 µF]
Accuracy
[±2.0% + 4 Digit(s)]
Feature
[DC Current (A)]
Parameter
[200µA/ 2000 µA]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[60/ 600 A]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[600 V]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6000 Digit(s)]
Feature
[Frequency (Hz)]
Parameter
[5Hz - 999.9 Hz]
Accuracy
[Line-level AC V]
Feature
[Resistance (Ω)]
Parameter
[600/ 6kΩ/ 600kΩ/6000 kΩ]
Accuracy
[±1.0% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60 - 600 A |
±1.0% + 5 Digit(s) |
|
AC Voltage (V) |
600 V |
±1.5% + 5 Digit(s) |
|
Capacitance (F) |
200µF/ 2500 µF |
±2.0% + 4 Digit(s) |
|
DC Current (A) |
200µA/ 2000 µA |
±1.0% + 5 Digit(s) |
|
DC Current (A) |
60/ 600 A |
±1.0% + 5 Digit(s) |
|
DC Voltage (V) |
600 V |
±1.0% + 5 Digit(s) |
|
Display |
3 Digit(s) |
6000 Digit(s) |
|
Frequency (Hz) |
5Hz - 999.9 Hz |
Line-level AC V |
|
Resistance (Ω) |
600/ 6kΩ/ 600kΩ/6000 kΩ |
±1.0% + 5 Digit(s) |
