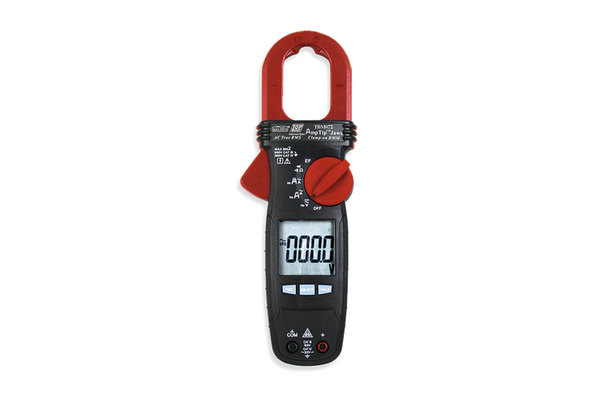

Digital clamp meter 600A AC
Art.-No. 911-00027
| TBM072-MET/PL-BK/RD
|
Copied
| Application | TBM072 is a digital clamp meter designed for electrical, industrial, and HVAC applications. |
| CAT-Rating | CATIII 600V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Carry Pouch |
| Description | Clamp Meter Digital 600A AC |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM072-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | TBM072 |
| Power Supply | 2 x 1.5 V AAA Batteries |
| Product Family | TBM072 600 A AC AmpTip™ Jaws |
| Product Group | TBM072 |
| Type | TBM072 |
| Height (H) | 37mm |
| Length (L) | 233mm |
| Width (W) | 76mm |
Feature
[AC Current (A)]
Parameter
[40/ 600 Hz]
Accuracy
[±1.8 % + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[4/ 40/ 400/ 600 V]
Accuracy
[4/ 40/ 400V ±1.5% + 5 Digits, 600V ±1.2% + 7 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400mV/ 4/ 40/ 400/ 600 V]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5 Hz - 100 kHz]
Accuracy
[±0.5% + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6 kΩ/ 60 kΩ]
Accuracy
[±1.0% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
40/ 600 Hz |
±1.8 % + 5 Digit(s) |
|
AC Voltage (V) |
4/ 40/ 400/ 600 V |
4/ 40/ 400V ±1.5% + 5 Digits, 600V ±1.2% + 7 Digit(s) |
|
DC Voltage (V) |
400mV/ 4/ 40/ 400/ 600 V |
±1.0% + 5 Digit(s) |
|
Display |
3 Digit(s) |
6 000 Counts |
|
Frequency (Hz) |
5 Hz - 100 kHz |
±0.5% + 4 Digit(s) |
|
Resistance (Ω) |
600/ 6 kΩ/ 60 kΩ |
±1.0% + 5 Digit(s) |
