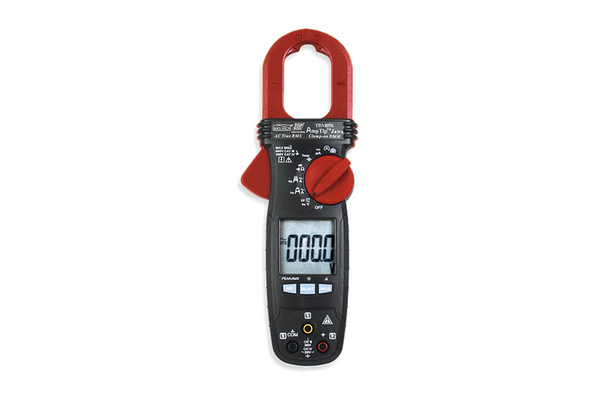

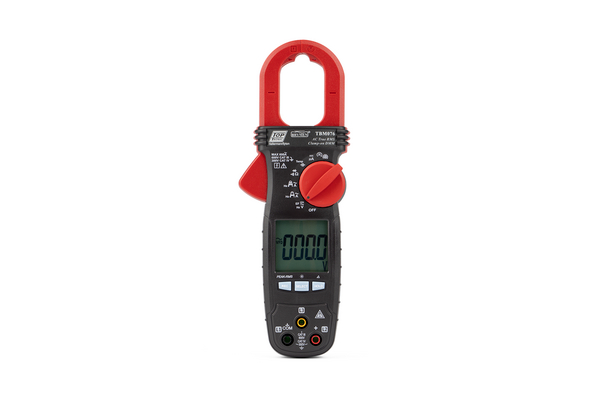

Digital Clamp Meters 600A AC
Art.-No. 911-00028
| TBM076-MET/PL-BK/RD
|
Copied
| Application | TBM076 is a versatile electrical testing tool used by electricians and technicians to safely measure current (AC/DC) in live circuits without breaking them, by clamping around a conductor. it also measures voltage, resistance, continuity, temperature, and features like 3-phase rotation detection, a large backlit display, and non-contact EF (Electric Field) detection, making it ideal for troubleshooting and maintenance in residential, commercial, and industrial electrical systems. |
| CAT-Rating | CATIV 300V |
| Colour | Black (BK), Red (RD) |

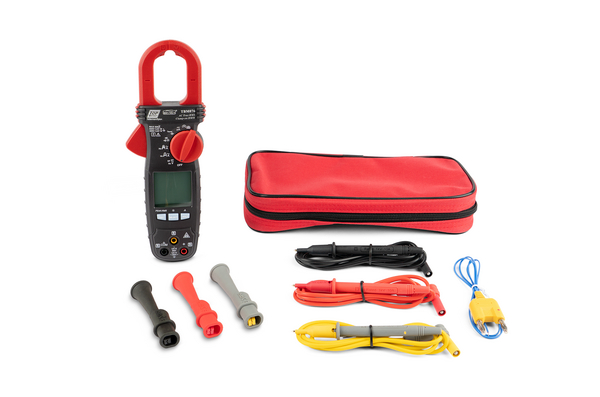

| Content Accessories | Carry Pouch, Temp Probe |
| Description | Clamp Meter Digital 600A AC |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM076-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | TBM076 |
| Power Supply | 2 x 1.5 V AAA Batteries |
| Product Family | TBM076 600A AC AmpTip™ Jaws |
| Product Group | TBM076 |
| Type | TBM076 |
| AC Current (+Accuracy) | 40 A (±1.8 % + 5 Digit) , 600 A (±1.8 % + 5 Digit) |
| AC Voltage (+Accuracy) | 4 V (±1.5 % + 5 Digit), 40 V (±1.5 % + 5 Digit), 400 V (±1.5 % + 5 Digit), 600 V (±1.2 % + 7 Digit) |
| Capacitance (+Accuracy) | 200 μF, 2000 μF |
| DC Voltage (+Accuracy) | 400 mV (±1.0 % + 5 Digit), 4 V (±1.0 % + 5 Digit), 40 V (±1.0 % + 5 Digit), 400 V (±1.0 % + 5 Digit), 600 V (±1.0 % + 5 Digit) |
| Frequency (+Accuracy) | 5 Hz - 100 KHz (±0.5 % + 4 Digit) |
| Height (H) | 37mm |
| Length (L) | 233mm |
| Temperature Measuring Range (+Accuracy) | - 40 °C - 400 °C |
| Width (W) | 233mm |
Feature
[AC Current (A)]
Parameter
[40/ 600 A]
Accuracy
[±1.8% + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[4/ 40/ 400/ 600 V]
Accuracy
[440/ 400V ±1.5 % + 5 Digit(s), 600V ±1.2% + 7 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[200µF/ 2500 µF]
Accuracy
[±2.0% + 4 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 400/ 600 V]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5 Hz - 100 kHz]
Accuracy
[±0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6 kΩ/ 60 kΩ]
Accuracy
[±1.0% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
40/ 600 A |
±1.8% + 5 Digit(s) |
|
AC Voltage (V) |
4/ 40/ 400/ 600 V |
440/ 400V ±1.5 % + 5 Digit(s), 600V ±1.2% + 7 Digit(s) |
|
Capacitance (F) |
200µF/ 2500 µF |
±2.0% + 4 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 400/ 600 V |
±1.0% + 5 Digit(s) |
|
Display |
3 Digit(s) |
6 000 Counts |
|
Frequency (Hz) |
5 Hz - 100 kHz |
±0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
600/ 6 kΩ/ 60 kΩ |
±1.0% + 5 Digit(s) |
