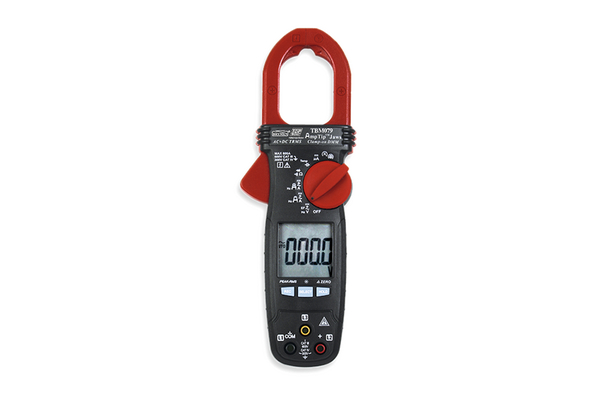

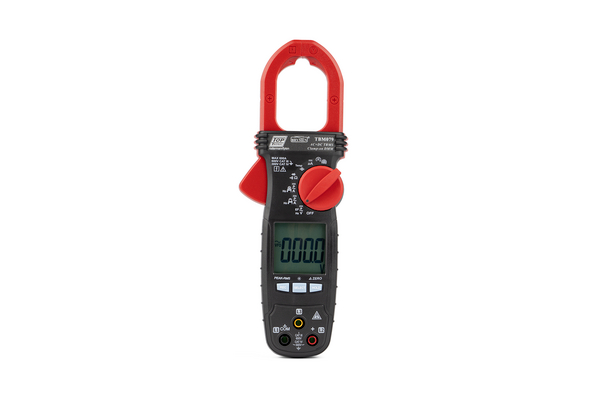

Digital Clamp Meter 600A AC/DC
Art.-No. 911-00041 | TBM079-MET/PL-BK/RD |

Jaw size 35mm
Amptip™ low current range
Large LCD display
Backlit
3 Phase rotation for mains
3 Phase rotation for motors
Temperature
EF Detection
Rotary selector switch
Continuity
Data hold

More products in this product group:

Base Data

Application	TBM079 is a versatile digital electrical tester used to safely measure current (AC/DC) in love wires without breaking the circuit, alongside functions for voltage, resistance
CAT-Rating	CATIII 600V
Colour	Black (BK), Red (RD)

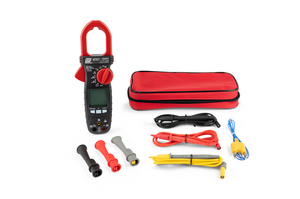

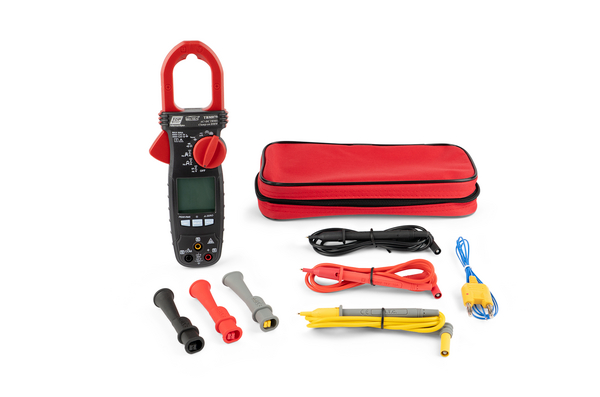

Content Accessories	Carry Pouch, Temp Probe
Description	Clamp meters digital 600A AC/DC
Digits in display	3
Material	Metal (MET), Plastic (PL)
PART DESCRIPTION	TBM079-MET/PL-BK/RD
Package Content	1pc.
Package Content packed in	box
Part No.	TBM079
Power Supply	2 x 1.5 V AAA Batteries
Product Family	TBM079 600 A AC/DC AmpTip™ Jaws
Product Group	TBM079
Type	TBM079

Product Dimensions

AC Current (+Accuracy)	40 A (±1.8 % + 5 Digit), 600 A (±1.8 % + 5 Digit)
AC Voltage (+Accuracy)	4 V (±1.5 % + 5 Digit), 40 V (±1.5 % + 5 Digit), 400 V (±1.5 % + 5 Digit), 600 V (±1.2 % + 7 Digit)
Capacitance (+Accuracy)	200 μF, 2500 μF
DC Current (+Accuracy)	40 A - 600 A (±1.8 % + 5 Digit)
DC Voltage (+Accuracy)	400 mV (±1.0 % + 5 Digit), 4 V (±1.0 % + 5 Digit), 40 V (±1.0 % + 5 Digit), 600 V (±1.0 % + 5 Digit)
Frequency (+Accuracy)	50 Hz - 400 Hz (±0.5 % + 4 Digit)
Height (H)	37mm
Length (L)	223mm
Temperature Measuring Range (+Accuracy)	- 40 °C - 400 °C
Width (W)	76mm

Feature

[AC Current (A)]

Parameter

[40/ 600 A]

Accuracy

[±1.8% + 5 Digit(s)]

Feature

[AC Voltage (V)]

Parameter

[4/ 40/ 400/ 600 V]

Accuracy

[4/ 40/ 400/V ±1.5% + 5 Digit(s), 6000v ±1.2% + 7 Digit(s)]

Feature

[Capacitance (F)]

Parameter

[200µF/ 2500 µF]

Accuracy

[2.0% + 4 Digit(s)]

Feature

[DC Current (A)]

Parameter

[60/ 600 A]

Accuracy

[±2.0 % + 5 Digit(s)]

Feature

[DC Voltage (V)]

Parameter

[400 mV/ 4/ 40/ 400/ 600 V]

Accuracy

[±1.0% + 5 Digit(s)]

Feature

[Display]

Parameter

[3 Digit(s)]

Accuracy

[6 000 Counts]

Feature

[Frequency (Hz)]

Parameter

[50Hz - 400 Hz]

Accuracy

[±2.0% + 4 Digit(s)]

Feature

[Resistance (Ω)]

Parameter

[600/ 6kΩ/ 60 kΩ]

Accuracy

[±0.6 - 2.0 % + 4 Digit]

Feature	Parameter	Accuracy
AC Current (A)	40/ 600 A	±1.8% + 5 Digit(s)
AC Voltage (V)	4/ 40/ 400/ 600 V	4/ 40/ 400/V ±1.5% + 5 Digit(s), 6000v ±1.2% + 7 Digit(s)
Capacitance (F)	200µF/ 2500 µF	2.0% + 4 Digit(s)
DC Current (A)	60/ 600 A	±2.0 % + 5 Digit(s)
DC Voltage (V)	400 mV/ 4/ 40/ 400/ 600 V	±1.0% + 5 Digit(s)
Display	3 Digit(s)	6 000 Counts
Frequency (Hz)	50Hz - 400 Hz	±2.0% + 4 Digit(s)
Resistance (Ω)	600/ 6kΩ/ 60 kΩ	±0.6 - 2.0 % + 4 Digit
