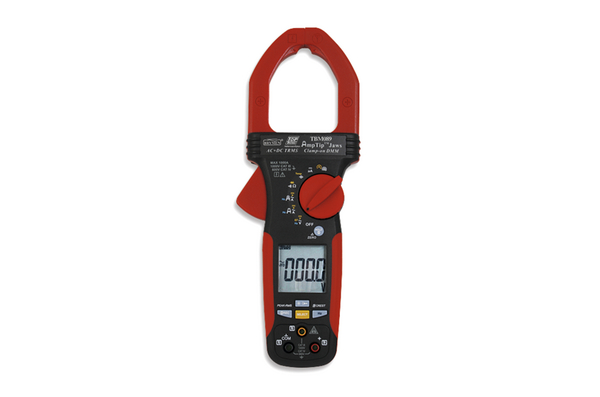

TBM089 - 1000A AC/DC
Art.-No. 911-00046
| TBM089-MET/PL-BK/RD
|
Copied
- Jaw size 51 mm
- Amptip™ low current range
- Large LCD display
- Backlit
- 3 Phase rotation for mains
- 3 Phase rotation for motors
- Temperature
- EF Detection
- Rotary selector switch
- Continuity
- Data hold
- Clamp light for dim areas
- Peak RMS 80 ms in-rush current
Show more
Show less
More products in this product group:
| Application | The TBM089 is a digital clamp meter designed for high-precision electrical testing, maintenance and troubleshootomg in demanding industrial, mining and electrical environments. |
| CAT-Rating | CATIV 1000V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Carry Pouch, Temp Probe |
| Description | Clamp Meter Digital 1000A |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM089-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | TBM089 |
| Power Supply | 2 x 1.5 V AA Batteries |
| Product Family | TBM089 1000 A AC/DC AmpTip™ Jaws |
| Product Group | TBM089 |
| Type | TBM089 |
| Height (H) | 44mm |
| Length (L) | 258mm |
| Temperature Measuring Range (+Accuracy) | - 40 °C - 400 °C |
| Width (W) | 94mm |
Feature
[AC Current (A)]
Parameter
[60/ 600/ 1000 A]
Accuracy
[±1.8% + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[600/ 1000 V]
Accuracy
[±1.2% + 7 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[2500 µF]
Accuracy
[±2.0% + 4 Digit(s)]
Feature
[DC Current (A)]
Parameter
[60/ 600/ 1000 A]
Accuracy
[±1.8% + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[600/ 1000V ]
Accuracy
[±1.0% + 5 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5Hz + 400 kHz]
Accuracy
[±0.5% + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6kΩ/ 60kΩ ]
Accuracy
[±1.0% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60/ 600/ 1000 A |
±1.8% + 5 Digit(s) |
|
AC Voltage (V) |
600/ 1000 V |
±1.2% + 7 Digit(s) |
|
Capacitance (F) |
2500 µF |
±2.0% + 4 Digit(s) |
|
DC Current (A) |
60/ 600/ 1000 A |
±1.8% + 5 Digit(s) |
|
DC Voltage (V) |
600/ 1000V |
±1.0% + 5 Digit(s) |
|
Display |
3 Digit(s) |
6 000 Counts |
|
Frequency (Hz) |
5Hz + 400 kHz |
±0.5% + 4 Digit(s) |
|
Resistance (Ω) |
600/ 6kΩ/ 60kΩ |
±1.0% + 5 Digit(s) |
