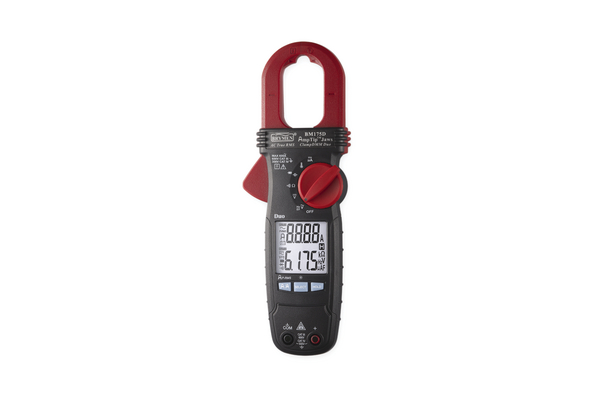

TBN175D - 600A AC
Art.-No. 911-01925
| TBM175D-MET/PL
|
Copied
| Application | TBM175D is a digital true RMS clamp meter it is used to measure electrical parameters - including current, voltage and continuity - without having to break the circuit. |
| CAT-Rating | CATIII 600V, CATIV 300V |
| Content Accessories | Carry Puch, test leads |
| Description | Clamp meter Digital 600A AC |
| Digits in display | 4 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM175D-MET/PL |
| Package Content packed in | box |
| Part No. | TBM175D |
| Power Supply | 2 X 1.5 AAA Batteries |
| Product Family | Instruments, Digital Clamp meter |
| Product Group | TBM175D |
| Type | TBM175D |
| AC Current (+Accuracy) | 60-600A (±1.5 %+5 Digit) |
| AC Voltage (+Accuracy) | 4/ 40/ 400/ 600V (±1.0 % + 5 Digit) |
| Capacitance (+Accuracy) | 5200µF/ 2500µF (2.0 % + 4 Digit) |
| DC Current (+Accuracy) | 200mA, 2MA (±1.0 % + 5 Digit) |
| DC Voltage (+Accuracy) | 400mV/ 4/ 40/ 400/ 600V (±1.0% + 5 Digit) |
| Frequency (+Accuracy) | 10Hz - 1000kHz (0.5 % + 4 Digit) |
| Resistance (+Accuracy) | 600kΩ/ 6kΩ/ 60kΩ (±1.0% + 5 Digit), 600kΩ/ 60MΩ (±1.5% + 5 Digit) |
| Temperature Measuring Range (+Accuracy) | -40 to 400°C (±1.0 + 1°C) |
Feature
[AC Current (A)]
Parameter
[60 - 600 A]
Accuracy
[±1.5 % + 5 Digit]
Feature
[AC Voltage (V)]
Parameter
[4/ 40/ 400/ 600 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[5200µF/ 2500 µF]
Accuracy
[2.0 % + 4 Digit(s)]
Feature
[DC Current (A)]
Parameter
[200 mA, 2 mA]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 400/ 600 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[Display]
Parameter
[4 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz - 1000 kHz]
Accuracy
[0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600 MΩ/ 6 kΩ/ 60 kΩ, 600 kΩ/ 60 MΩ]
Accuracy
[±1.0 % + 5 Digit(s), ±1.5 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60 - 600 A |
±1.5 % + 5 Digit |
|
AC Voltage (V) |
4/ 40/ 400/ 600 V |
±1.0 % + 5 Digit(s) |
|
Capacitance (F) |
5200µF/ 2500 µF |
2.0 % + 4 Digit(s) |
|
DC Current (A) |
200 mA, 2 mA |
±1.0 % + 5 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 400/ 600 V |
±1.0 % + 5 Digit(s) |
|
Display |
4 Digit(s) |
6 000 Counts |
|
Frequency (Hz) |
10 Hz - 1000 kHz |
0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
600 MΩ/ 6 kΩ/ 60 kΩ 600 kΩ/ 60 MΩ |
±1.0 % + 5 Digit(s) ±1.5 % + 5 Digit(s) |
