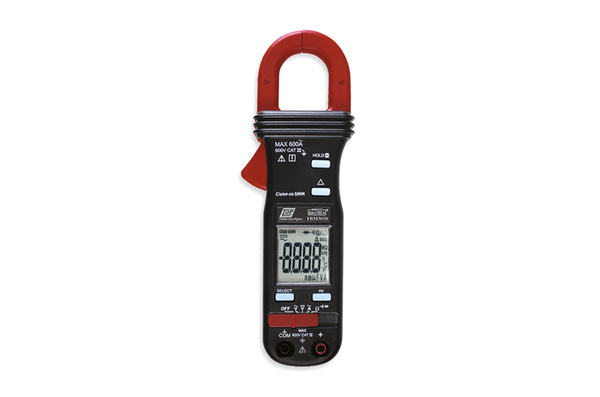

TBM3030 - 600A AC
Art.-No. 911-00031
| TBM3030-MET/PL-BK/RD
|
Copied
| Application | TBM3030 used by electricians and engineers to measure electrical parameters safely and accurately. |
| CAT-Rating | CATIII 600V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Carry Pouch, Test Leads |
| Description | Clamp Meter Digital 600A AC |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM3030-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | TBM3030 |
| Power Supply | 1X 3 V CR2032 Battery |
| Product Family | Instruments, Digital Clamp |
| Product Group | TBM3030 |
| Type | TBM3030 |
| AC Current (+Accuracy) | 40 A (±1.9 % + 8 Digit), 600 A (±1.9 % + 8 Digit) |
| AC Voltage (+Accuracy) | 4 V (±1.5 % + 5 Digit), 40 V (±1.5 % + 5 Digit), 400 V (±1.5 % + 5 Digit), 600 V (±2.0 % + 5 Digit) |
| Capacitance (+Accuracy) | 500µF/ 5µF/ 50µF/ 500µF/ 3000µF (±3.5% + 6 Digit) |
| DC Voltage (+Accuracy) | 400 mV (±1.0 % + 4 Digit), 4 V (±1.0 % + 4 Digit), 40 V (±1.0 % + 4 Digit), 400 V (±1.0 % + 4 Digit), 600 V (±1.0 % + 4 Digit) |
| Frequency (+Accuracy) | 5 Hz - 100 KHz (±0.5 % + 4 Digit) |
| Height (H) | 32mm |
| Length (L) | 190mm |
| Resistance (+Accuracy) | 400/ 4kΩ/ 40kΩ/ 400kΩ/ 4MΩ/ 40MΩ (4k/ 40k/ 400kΩ ±0.6% + Digit,4MΩ ±1.0 % + 4 Digit, 40MΩ ±2.0%, + 4 Digit |
| Temperature Measuring Range (+Accuracy) | - 20 °C - 300 °C |
| Width (W) | 63mm |
Feature
[AC Current (A)]
Parameter
[40/ 400/ 600 A]
Accuracy
[±1.5 % + 8 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[4/ 40/ 400/ 600 V]
Accuracy
[4/ 40/ 400V ±1.5 % + 5 Digit(s), 600V ±2.0 % + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[500µF/ 5µF/ 50µF/ 300 µF]
Accuracy
[±3.5 % + 6 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400 mV/ 4/ 40/ 400/ 600 V]
Accuracy
[±1.0 % + 4 Digit]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[4 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz - 100 kHz]
Accuracy
[±0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[400/ 4 kΩ/ 40 kΩ/ 400 kΩ/ 4 MΩ/ 40 MΩ, 40 Ω]
Accuracy
[4k/ 40k/ 400kΩ ±0.6 % + 4 Digit(s), 4MΩ ±1.0 %, + 4 Digit(s), 40MΩ ±2.0 % + 4 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
40/ 400/ 600 A |
±1.5 % + 8 Digit(s) |
|
AC Voltage (V) |
4/ 40/ 400/ 600 V |
4/ 40/ 400V ±1.5 % + 5 Digit(s), 600V ±2.0 % + 5 Digit(s) |
|
Capacitance (F) |
500µF/ 5µF/ 50µF/ 300 µF |
±3.5 % + 6 Digit(s) |
|
DC Voltage (V) |
400 mV/ 4/ 40/ 400/ 600 V |
±1.0 % + 4 Digit |
|
Display |
3 Digit(s) |
4 000 Counts |
|
Frequency (Hz) |
10 Hz - 100 kHz |
±0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
400/ 4 kΩ/ 40 kΩ/ 400 kΩ/ 4 MΩ/ 40 MΩ 40 Ω |
4k/ 40k/ 400kΩ ±0.6 % + 4 Digit(s), 4MΩ ±1.0 % + 4 Digit(s), 40MΩ ±2.0 % + 4 Digit(s) |
