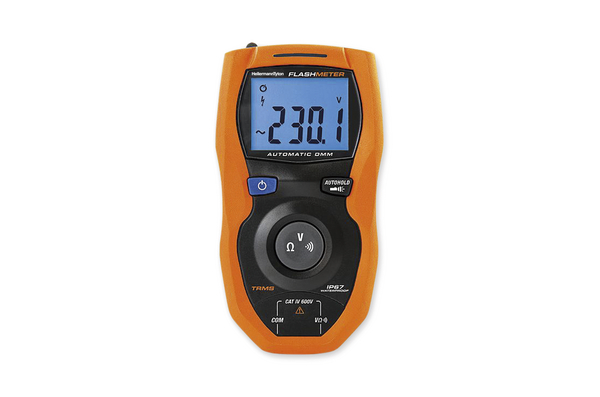

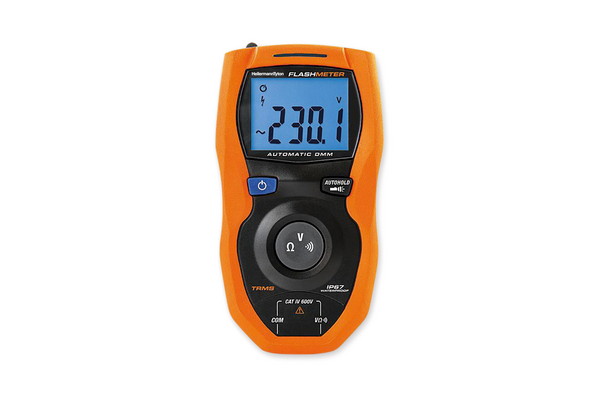

Flashmeter - Unbreakable and water resistant
Art.-No. 911-01961
| FLASHMETER-MET/PL-BK/OG
Copied
- LCD display, 4 dgt, 4000 counts
- Automatic detection of measurement functions (DC/AC Voltage, Resistance)
- Detection AC Voltage without contact (NCV)
- Automatic polarity indication
- “OL” overrange indication
- Auto HOLD
- Frequency rate: 3 times/s
- Working temperature: 0°C - 50°C
- Working humidity:
75%RH - Battery life: approx 80h (with backlight), approx 400h(without backlight)
- Auto Power OFF after 15 min of idleness
- Backlight
More products in this product group:
| Application | for quick and automatic electrical measurements in industrial and residential environments. highly durable, featuring an ip67 waterproof rating |
| CAT-Rating | CATIV 600V |
| Colour | Orange (OG), Black (BK) |
| Content Accessories | Test leads, Transport bag |
| Description | The Flashmeter is an IP67 water resistant with double insulation protection multimeter. It includes a probe to detect AC voltage without contact. |
| Digits in display | 4 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | FLASHMETER-MET/PL-BK/OG |
| Package Content | 1 |
| Part No. | FLASHMETER |
| Power Supply | 2 x 1.5V (AAA) batteries |
| Product Family | Flashmeter |
| Product Group | Digital multimeters |
| Type | FLASHMETER |
| AC Voltage (+Accuracy) | 400V (±1%+5 Digit), 600V (±1%+5 Digit) |
| DC Voltage (+Accuracy) | 400V ±(1%+5dgt), 600V ±(1%+5dgt) |
| Height (H) | 40mm |
| Length (L) | 140mm |
| Resistance (+Accuracy) | 40.0Ω ±(2%+18dgt), 400.0Ω ±(2%+10dgt), 4.000kΩ ±(2%+10dgt), 40.00kΩ ±(2%+10dgt), 400.0kΩ ±(2%+10dgt) |
| Width (W) | 75mm |
Feature
[AC Voltage (V)]
Parameter
[400/ 600 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[400/ 600 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[Display]
Parameter
[4 Digit(s)]
Accuracy
[4 000 Counts]
Feature
[Resistance (Ω)]
Parameter
[40/ 400 Ω]
Accuracy
[±2.0 % + 18 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
400/ 600 V |
±1.0 % + 5 Digit(s) |
|
DC Voltage (V) |
400/ 600 V |
±1.0 % + 5 Digit(s) |
|
Display |
4 Digit(s) |
4 000 Counts |
|
Resistance (Ω) |
40/ 400 Ω |
±2.0 % + 18 Digit(s) |
