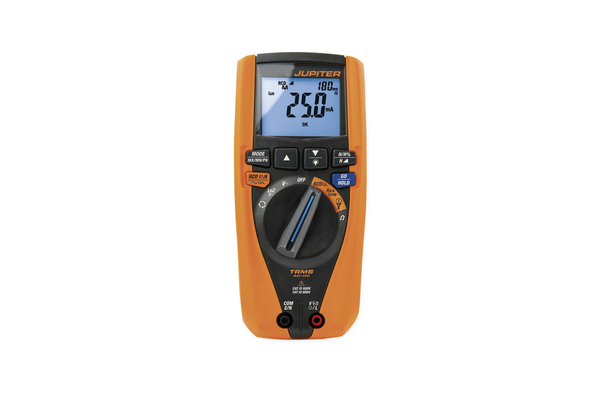

Jupiter - Loop and RCD Tester
Art.-No. 911-01944 | JUPITER-MET/PL-BK/OG

Copied

    • RCD test
    • Bar graph
    • Phase sequence rotation with 1-wire method
    • Automatic polarity indication
    • Automatic detection of AC/DC signals
    • Continuity check200mA
    • MAX/MIN/PEAK/HOLD.
    • Dynamic inrush
    • Harmonics analyser up to 25th harmonic and THD%
    Downloads
    Application designed for testing electrical installation safety.
    CAT-Rating CATIV 600V, CATIII 690V
    Colour Orange (OG), Black (BK)
    Content Accessories ISO9000 Calibration Certificate, Batteries and user manual, Quick Start Guide, YABRS0002HT0, C2065, 4324-2
    Description Multifunction Multimeter for safe electrical testing
    Digits in display 4
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION JUPITER-MET/PL-BK/OG
    Package Content 1
    Package Content packed in box
    Part No. JUPITER
    Power Supply 4 x 1.5V AAA Batteries
    Product Family CATIV600V TRMS
    Product Group Multifunction Multimeter
    Type JUPITER
    AC Current (+Accuracy) 3000A (±0.5%+ 2digits)
    AC Voltage (+Accuracy) 690V (0.5% + 2digits)
    DC Current (+Accuracy) 3000A (±0.5%+ 2digits)
    DC Voltage (+Accuracy) 690V (0.5% + 2digits)
    Frequency (+Accuracy) 32Hz - 1kHz
    Height (H) 55mm
    Length (L) 175mm
    Resistance (+Accuracy) 1999Ω (±1.0% + 5digits)
    Width (W) 85mm
    Feature
    [AC Current (A)]
    Parameter
    [1 - 1000 A]
    Accuracy
    [±0.5 % + 2 Digit(s)]
    Feature
    [AC Voltage (V)]
    Parameter
    [0.5 - 690 V]
    Accuracy
    [±0.5 % + 2 Digit(s)]
    Feature
    [DC Voltage (V)]
    Parameter
    [0 - 690 V]
    Accuracy
    [±0.5% + 2 Digit(s)]
    Feature
    [Display]
    Parameter
    [4 Digit(s)]
    Accuracy
    [9 999 Counts]
    Feature Parameter Accuracy
    AC Current (A)
    		 1 - 1000 A
    		 ±0.5 % + 2 Digit(s)
    AC Voltage (V)
    		 0.5 - 690 V
    		 ±0.5 % + 2 Digit(s)
    DC Voltage (V)
    		 0 - 690 V
    		 ±0.5% + 2 Digit(s)
    Display
    		 4 Digit(s)
    		 9 999 Counts
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005243009623
    Storage Temperature -20 °C to +60 °C
