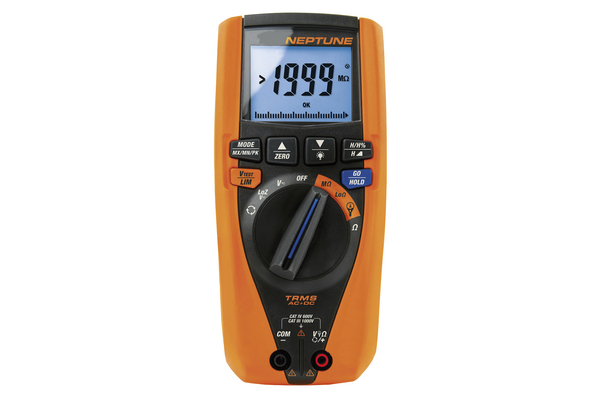

All in one handheld tester that combines a digital TRMS multimeter, an electrical safety tester, and a harmonics analyzer into a single device.
Art.-No. 911-01945
| NEPTUNE-MET/PL-OG
|
Copied
- Autorange function and automatic detection of AC, DC for all measurements.
- DC, AC TRMS, AC+DC TRMS voltage up to 1000V.
- Low-impedance LoZ input to exclude measurements of “stray voltages”.
- DC, AC TRMS, AC+DC TRMS current by means of an optional external clamp transducer.
- Measurement of voltage or current frequency.
- Resistance and continuity with buzzer.
- MAX/MIN/PEAK/HOLD functions.
Show more
Show less
More products in this product group:
| Application | It is primarily applied by electricians and field technicians for electrical safety compliance and maintenance tasks. |
| CAT-Rating | CATIII 1000V, CATIV 600V |
| Colour | Orange (OG) |
| Content Accessories | Standard: Test leads and Pouch. Optional: Flexible Clamp (F3000U), 400A Clamp HT4006 |
| Description | Multifunction DMM Insulation |
| Digits in display | 4 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | NEPTUNE-MET/PL-OG |
| Package Content | 1 |
| Package Content packed in | EA |
| Part No. | NEPTUNE |
| Power Supply | 4 x 1.5V AAA batteries |
| Product Family | Neptune |
| Product Group | Digital Multimeters |
| Type | NEPTUNE |
| AC Current (+Accuracy) | 1A - 3000A (±0.5% + 2 Digits) |
| AC Voltage (+Accuracy) | 1mV - 1000mV |
| DC Voltage (+Accuracy) | 0 - 999V (±0.5% reading + 2 Digits) |
| Frequency (+Accuracy) | 42.5Hz - 69Hz (± 5.0% + 10 Digits) |
| Height (H) | 55mm |
| Length (L) | 175mm |
| Resistance (+Accuracy) | 0.0Ω - 1999Ω (± 1.0% reading + 5 Digits) |
| Width (W) | 85mm |
Feature
[AC Current (A)]
Parameter
[1A - 3000 A]
Accuracy
[(±0.5% + 2 Digits)]
Feature
[AC Voltage (V)]
Parameter
[1mV - 1000 mV]
Feature
[DC Voltage (V)]
Parameter
[0 - 999.9 V]
Accuracy
[±0.5% + 2 Digit(s)]
Feature
[Display]
Parameter
[4 Digit(s)]
Accuracy
[9 999 Counts]
Feature
[Frequency (Hz)]
Parameter
[42.5Hz - 69 Hz]
Accuracy
[±0.1% + 1 Digit]
Feature
[Resistance (Ω)]
Parameter
[0.0Ω - 1999 Ω]
Accuracy
[±1.0% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
1A - 3000 A |
(±0.5% + 2 Digits) |
|
AC Voltage (V) |
1mV - 1000 mV |
|
|
DC Voltage (V) |
0 - 999.9 V |
±0.5% + 2 Digit(s) |
|
Display |
4 Digit(s) |
9 999 Counts |
|
Frequency (Hz) |
42.5Hz - 69 Hz |
±0.1% + 1 Digit |
|
Resistance (Ω) |
0.0Ω - 1999 Ω |
±1.0% + 5 Digit(s) |
