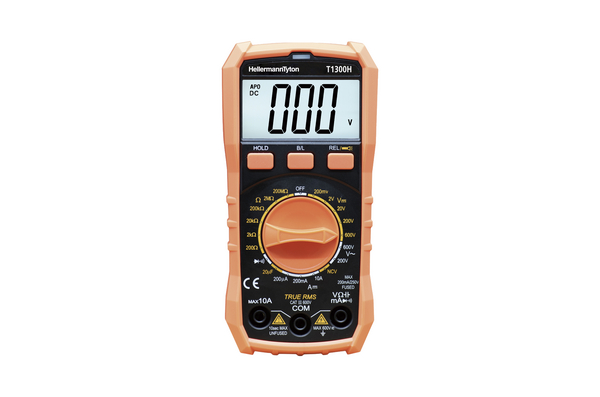

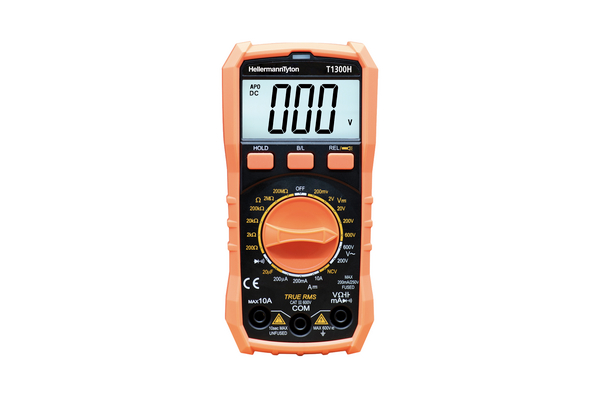

T1300H
Art.-No. 911-00000
| T1300H-MET/PL-GY/OG
|
Copied
- Diode test
- Continuity test
- Data Hold
- Backlight
- Capacitance test
- Auto power off
- Non-contact voltage EF detection (NCV)
- Torch
More products in this product group:
| Application | DIY |
| CAT-Rating | CATIII 600V |
| Colour | Dark Grey (DKGY), Orange (OG) |
| Content Accessories | Test Leads |
| Description | Multimeter digital 600V |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T1300H-MET/PL-GY/OG |
| Package Content packed in | pack |
| Part No. | T1300H |
| Power Supply | 1 x 9V Battery |
| Product Family | DIY Digital Multimeters |
| Product Group | T1300H |
| Type | T1300H |
| AC Current (+Accuracy) | 200mA/ 10A (±3.0% + 10 Digit) |
| AC Voltage (+Accuracy) | 200/ 600V (±1.2 % + 10 Digit) |
| Capacitance (+Accuracy) | 20nF/ 200nF/ 2μF/ 20μF/ 200μF/ 2000μF (±5.0% + 10 Digit) |
| DC Current (+Accuracy) | 20mA/ 200mA/ 10A (±1.0% + 2 Digit) |
| DC Voltage (+Accuracy) | 200mV/ 2/ 20/ 200/ 600V (±0.5% + 3 Digit) |
| Frequency (+Accuracy) | 10/ 100Hz/ 1kHz / 10kHz/ 100kHz/ 2mHz (±1.0% + 10 Digit) |
| Height (H) | 35mm |
| Length (L) | 150mm |
| Resistance (+Accuracy) | 200/ 20kΩ/ 200kΩ/ 2MΩ (±2.5% + 5 Digit) |
| Width (W) | 73mm |
Feature
[AC Current (A)]
Parameter
[200 mA/ 10 A]
Accuracy
[±3.0 % + 10 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[200/ 600 V]
Accuracy
[±1.2 % + 10 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[20nF/ 200nF/ 2µF/ 200µF/ 2000 µF]
Accuracy
[±5.0 % + 10 Digit(s)]
Feature
[DC Current (A)]
Parameter
[20 mA/ 200 mA/ 10 A]
Accuracy
[±1.0 % + 2 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[200 mV/ 2/ 20/ 200/ 600 V]
Accuracy
[±0.5 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[1 999 Counts]
Feature
[Frequency (Hz)]
Parameter
[10/ 100 Hz/ 1 kHz/ 10 kHz/ 100 kHz/ 2 mHz]
Accuracy
[±1.0 % + 10 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[200/ 20 kΩ/ 200 kΩ/ 2 MΩ]
Accuracy
[±2.5 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
200 mA/ 10 A |
±3.0 % + 10 Digit(s) |
|
AC Voltage (V) |
200/ 600 V |
±1.2 % + 10 Digit(s) |
|
Capacitance (F) |
20nF/ 200nF/ 2µF/ 200µF/ 2000 µF |
±5.0 % + 10 Digit(s) |
|
DC Current (A) |
20 mA/ 200 mA/ 10 A |
±1.0 % + 2 Digit(s) |
|
DC Voltage (V) |
200 mV/ 2/ 20/ 200/ 600 V |
±0.5 % + 3 Digit(s) |
|
Display |
3 Digit(s) |
1 999 Counts |
|
Frequency (Hz) |
10/ 100 Hz/ 1 kHz/ 10 kHz/ 100 kHz/ 2 mHz |
±1.0 % + 10 Digit(s) |
|
Resistance (Ω) |
200/ 20 kΩ/ 200 kΩ/ 2 MΩ |
±2.5 % + 5 Digit(s) |
