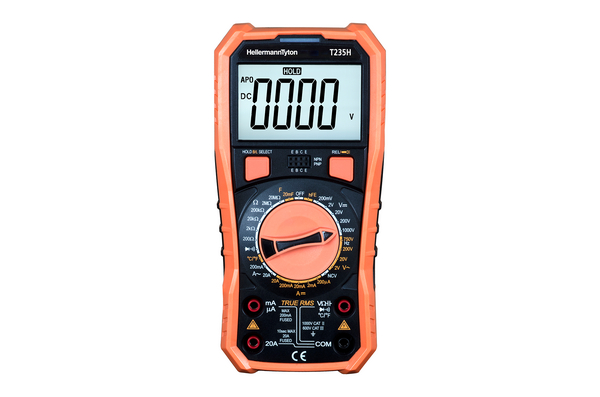

T235H Digital multimeter
Art.-No. 911-00002
| T235H-MET/PL-GY/OG
|
Copied
| CAT-Rating | CATIV 600V |
| Colour | Dark Grey (DKGY), Orange (OG) |
| Content Accessories | Temp Probe TBMTEMPPROBE, Test Leads, Instruction Manual |
| Description | Multimeter Digital Low Cost |
| Key product features | True Root Mean Square (TRMS) |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T235H-MET/PL-GY/OG |
| Package Content packed in | pack |
| Part No. | T235H |
| Power Supply | 1x 9V Batteries |
| Product Family | Multimeter Digital Low Cost |
| Product Group | T235H |
| Type | T235H |
| Typical Application | It's widely used on measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, diode, transistor, continuity test, temperature auto power off/on and LCD back-light. The meter takes integrated circuit as the core. It's an ideal tool for lab, and factory. |
| Height (H) | 27mm |
| Length (L) | 190mm |
| Temperature Measuring Range (+Accuracy) | -20°C to 1000°C (±0.8 % + 4 Digit) |
| Width (W) | 88mm |
Feature
[AC Current (A)]
Parameter
[200 mA, 20 A]
Accuracy
[±2.0 % + 5 Digits, ±3.0% + 10 Digits]
Feature
[AC Voltage (V)]
Parameter
[2V/ 20V/ 200 V, 750 V]
Accuracy
[±0.8 % + 5 Digits, ±1.2% + 10 Digits]
Feature
[Capacitance (F)]
Parameter
[6 nF, 60nF/ 600nF/ 6uF/ 60uF, 600uF/ 6mF/ 20mF]
Accuracy
[±5.0 % + 40 Digits, ±3.5% + 20 Digits, ±5.0% + 10 Digits]
Feature
[DC Current (A)]
Parameter
[200µA/ 2mA/ 20 mA, 200 mA, 20 A]
Accuracy
[±0.8 % + 10 Digit(s), ±1.2% + 8 Digits, ±2.0% + 5 Digits]
Feature
[DC Voltage (V)]
Parameter
[200mV/ 2V/ 20V/ 200 V, 1000 V]
Accuracy
[±0.5 % + 3 Digits, ±0.8% + 10 Digits]
Feature
[Display]
Parameter
[3½ Digits]
Accuracy
[1 999 Counts]
Feature
[Resistance (Ω)]
Parameter
[200 Ω, 2kΩ/ 20kΩ/ 200kΩ/ 2 MΩ, 20 MΩ]
Accuracy
[±0.8% + 5 Digits, ±0.8% + 3 Digits, ±1.0% + 25 Digits]
Feature
[Temperature (°C)]
Parameter
[-20 - 1000 °C, -4 - 1832°F]
Accuracy
[
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
200 mA 20 A |
±2.0 % + 5 Digits ±3.0% + 10 Digits |
|
AC Voltage (V) |
2V/ 20V/ 200 V 750 V |
±0.8 % + 5 Digits ±1.2% + 10 Digits |
|
Capacitance (F) |
6 nF 60nF/ 600nF/ 6uF/ 60uF 600uF/ 6mF/ 20mF |
±5.0 % + 40 Digits ±3.5% + 20 Digits ±5.0% + 10 Digits |
|
DC Current (A) |
200µA/ 2mA/ 20 mA 200 mA 20 A |
±0.8 % + 10 Digit(s) ±1.2% + 8 Digits ±2.0% + 5 Digits |
|
DC Voltage (V) |
200mV/ 2V/ 20V/ 200 V 1000 V |
±0.5 % + 3 Digits ±0.8% + 10 Digits |
|
Display |
3½ Digits |
1 999 Counts |
|
Resistance (Ω) |
200 Ω 2kΩ/ 20kΩ/ 200kΩ/ 2 MΩ 20 MΩ |
±0.8% + 5 Digits ±0.8% + 3 Digits ±1.0% + 25 Digits |
|
Temperature (°C) |
-20 - 1000 °C -4 - 1832°F |
|
