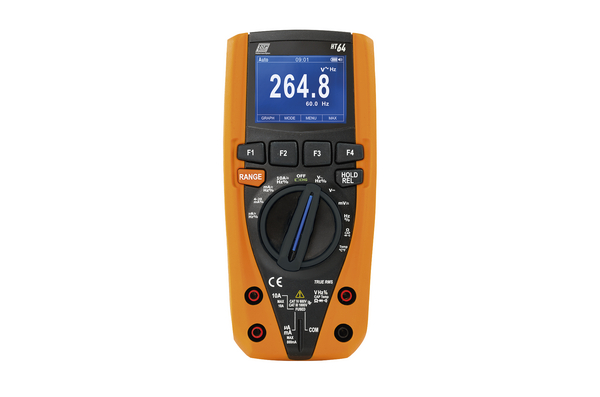

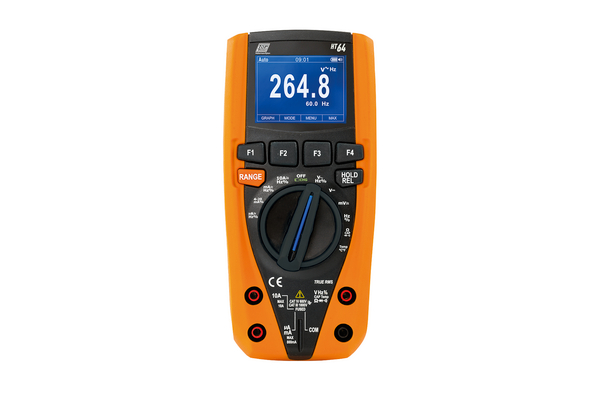

T64 TRMS/AC+DC with Data Logger (Colour Display)
Art.-No. 911-01976
| T64-MET/PL-OG
Copied
- Data Logger and Graph
- Diode, Continuity and Resistance tests
- Automatic polarity indication
- “OL” overrange indication
- Colour TFT, 6000 pixels backlit display
- MAX/MIN/AVG Data Hold
- LoZ voltage measurement
- PEAK 1ms
- Double insulation
More products in this product group:
| Application | A versatile handheld tool designed for electrical maintenance, troubleshooting, and testing in industrial and commercial environments. performing voltage, current, resistance, and diode tests. |
| CAT-Rating | CATIV 600V, CATIII 1500V |
| Colour | Orange (OG) |
| Content Accessories | K-Type Wire Temperature Probe, Test Leads, Transport Bag |
| Description | Digital Multimeter Data Logger |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T64-MET/PL-OG |
| Package Content | 1 |
| Package Content packed in | box |
| Part No. | T64 |
| Power Supply | 1 x 7.2V Li-ION Rechargeable Battery |
| Product Family | TRMS AC/DC with Data Logger (Colour Display) |
| Product Group | T64 |
| Type | T64 |
| Height (H) | 48mm |
| Length (L) | 190mm |
| Temperature Measuring Range (+Accuracy) | -40 to +1350°C (±105% + 3°C) |
| Width (W) | 94mm |
Feature
[AC Voltage (V)]
Parameter
[600 mV/ 6/ 60 V, 600/ 1000 V]
Accuracy
[±0.1 % + 5 Digit(s), ±0.2% + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[600nF/ 600nF/ 6000µF/ 60µF/ 600µF/ 6mF]
Accuracy
[±1.5 % + 20 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600µA/ 6000µA/ 60 A, 600 mA, 10 A]
Accuracy
[±0.9 % + 5 Digit(s), ±0.9 % + 8 Digit(s), ±1.5 % + 8 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[600 mV/ 6/ 60 V, 600/ 1000 V]
Accuracy
[±0.1 % + 5 Digit(s), ±0.2 % + 5 Digit(s)]
Feature
[Display]
Parameter
[4 Digit(s)]
Accuracy
[6 000 Counts]
Feature
[Resistance (Ω)]
Parameter
[600Ω , 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ, 60 MΩ]
Accuracy
[±0.8 % + 10 Digit(s), ±0.8 % + 5 Digit(s), ±2.5 % + 10 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
600 mV/ 6/ 60 V 600/ 1000 V |
±0.1 % + 5 Digit(s) ±0.2% + 5 Digit(s) |
|
Capacitance (F) |
600nF/ 600nF/ 6000µF/ 60µF/ 600µF/ 6mF |
±1.5 % + 20 Digit(s) |
|
DC Current (A) |
600µA/ 6000µA/ 60 A 600 mA 10 A |
±0.9 % + 5 Digit(s) ±0.9 % + 8 Digit(s) ±1.5 % + 8 Digit(s) |
|
DC Voltage (V) |
600 mV/ 6/ 60 V 600/ 1000 V |
±0.1 % + 5 Digit(s) ±0.2 % + 5 Digit(s) |
|
Display |
4 Digit(s) |
6 000 Counts |
|
Resistance (Ω) |
600Ω 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ 60 MΩ |
±0.8 % + 10 Digit(s) ±0.8 % + 5 Digit(s) ±2.5 % + 10 Digit(s) |
