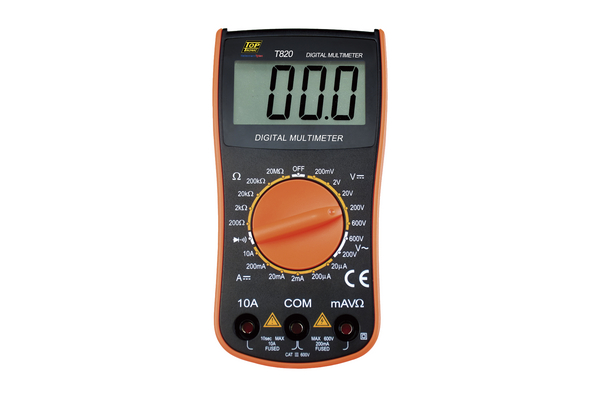

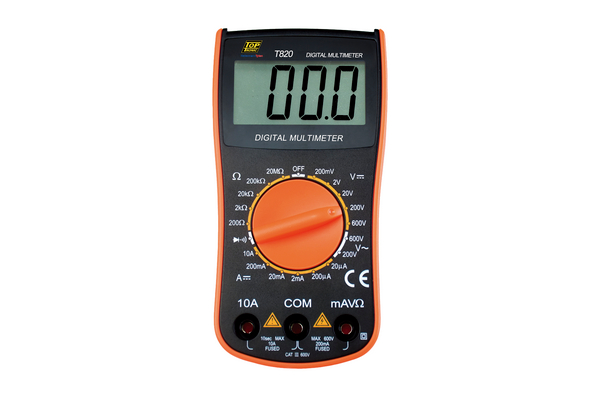

T820 Multimeter Digital
Art.-No. 911-00005
| T820-MET/PL-GY/OG
|
Copied
- Low cost
- Large LCD display
- Continuity
- Diode
- DIY
- Counts 3 - 1/2 Digits (Accuracy = 1999 Counts)
Show more
Show less
More products in this product group:
| Application | Used for measuring up to 600V AC/DC, DC current and resistance. It is ideal for hobbyists, laboratories and household electrical troubleshooting, featuring continuity testing, diode testing and a large LCD screen. |
| CAT-Rating | CATIII 600V |
| Colour | Dark Grey (DKGY), Orange (OG) |
| Content Accessories | Test Leads |
| Description | Digital Multimeter 600V AC/DC |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T820-MET/PL-GY/OG |
| Package Content packed in | pack |
| Part No. | T820 |
| Power Supply | 1 x 9V Battery |
| Product Family | Digital Multimeter (DIY) |
| Product Group | T820 |
| Type | T820 |
| Height (H) | 35mm |
| Length (L) | 138mm |
| Width (W) | 72mm |
Feature
[AC Voltage (V)]
Parameter
[200/ 600 V]
Accuracy
[±1.2 % + 10 Digit(s)]
Feature
[DC Current (A)]
Parameter
[20µa/ 200µA/ 2mA/ 20mA/ 10 A]
Accuracy
[±1.5% + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[200 mV/ 2/ 20/ 200/ 600 V]
Accuracy
[±0.5 % + 4 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[1 999 Counts]
Feature
[Resistance (Ω)]
Parameter
[200/ 2kΩ/ 20kΩ/ 200kΩ/ 20 MΩ]
Accuracy
[±0.8% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
200/ 600 V |
±1.2 % + 10 Digit(s) |
|
DC Current (A) |
20µa/ 200µA/ 2mA/ 20mA/ 10 A |
±1.5% + 3 Digit(s) |
|
DC Voltage (V) |
200 mV/ 2/ 20/ 200/ 600 V |
±0.5 % + 4 Digit(s) |
|
Display |
3 Digit(s) |
1 999 Counts |
|
Resistance (Ω) |
200/ 2kΩ/ 20kΩ/ 200kΩ/ 20 MΩ |
±0.8% + 5 Digit(s) |
