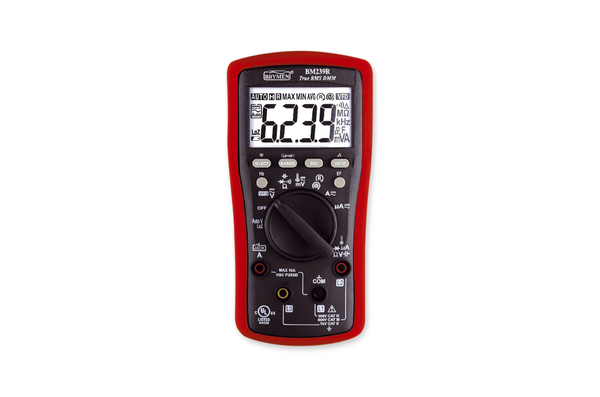

Phase rotation DMM
Art.-No. 911-01943
| TBM239R-MET/PL-BK/RD
|
Copied
| CAT-Rating | CATIV 300V |
| Colour | Red (RD), Black (BK) |
| Content Accessories | Temp probe, TBMTEMPPROBE, Test Leads, crocodile clips |
| Description | Phase Rotation DMM |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM239R-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM239R |
| Power Supply | 2X 1.5V AAA BATTERIES |
| Product Family | TBM239R |
| Product Group | Digital Multimeters |
| Type | TBM239R |
| AC Current (+Accuracy) | 200µA/ 2000µA/ 6A/ 10A (1.0% + 3 Digit) |
| AC Voltage (+Accuracy) | 6V/ 60V/ 600V/ 1000V (0.7% + 3Digit) |
| Capacitance (+Accuracy) | 2000µF/ 20µF/ 200µF/ 2000µF (1.5% + 2 Digit) |
| DC Current (+Accuracy) | 200µA/ 2000µA/ 6A/ 10A (0.7% + 3 Digit) |
| DC Voltage (+Accuracy) | 60mV/ 600mV/ 6 /60/ 600/ 1000V (0.03% + 2 Digit) |
| Frequency (+Accuracy) | 10Hz - 50kHz (0.03% + 2 Digit) |
| Height (H) | 50mm |
| Length (L) | 161mm |
| Resistance (+Accuracy) | 600Ω/ 60MΩ (0.3% + 3 Digit) |
| Temperature Measuring Range (+Accuracy) | -40 to +400°C (1.0% + 1°C) |
| Width (W) | 80mm |
Feature
[AC Current (A)]
Parameter
[200µA/ 2000µA/ 6A/ 10 A]
Accuracy
[1.0 % + 3 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[6 V/ 60 V/ 600 V/ 1000 V]
Accuracy
[0.7 % + 3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[2000nF/ 20µf/ 200µF/ 2000 µF]
Accuracy
[1.5 % + 2 Digit(s)]
Feature
[DC Current (A)]
Parameter
[200µA/ 2000µA/ 6A/ 10 A]
Accuracy
[0.7 % + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V]
Accuracy
[0.03 % + 2 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz - 50 kHz]
Accuracy
[0.03 % + 2 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600Ω/ 60 MΩ]
Accuracy
[0.3 % + 3 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
200µA/ 2000µA/ 6A/ 10 A |
1.0 % + 3 Digit(s) |
|
AC Voltage (V) |
6 V/ 60 V/ 600 V/ 1000 V |
0.7 % + 3 Digit(s) |
|
Capacitance (F) |
2000nF/ 20µf/ 200µF/ 2000 µF |
1.5 % + 2 Digit(s) |
|
DC Current (A) |
200µA/ 2000µA/ 6A/ 10 A |
0.7 % + 3 Digit(s) |
|
DC Voltage (V) |
60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V |
0.03 % + 2 Digit(s) |
|
Display |
3 Digit(s) |
6000 Counts |
|
Frequency (Hz) |
10 Hz - 50 kHz |
0.03 % + 2 Digit(s) |
|
Resistance (Ω) |
600Ω/ 60 MΩ |
0.3 % + 3 Digit(s) |
