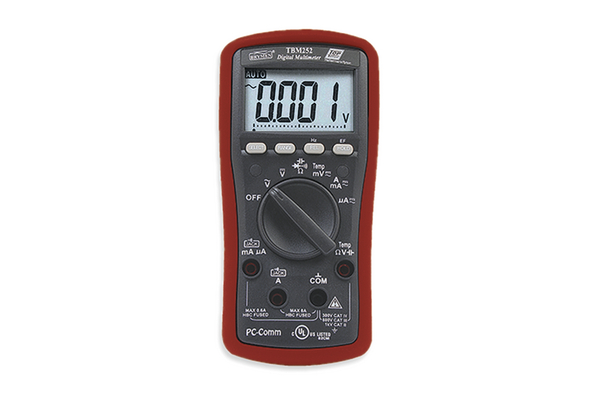

Digital multimeter
Art.-No. 911-00008
| TBM252-MET/PL-BK/RD
Copied
- Bar graph, Beep guard, USB Interface, Rugged construction, Separate battery, compartment, Auto Range. Measures up to 1000V AC/DC voltage, 8A AC/DC current and high value resistance up to 60MΩ. The meter displays "Auto" when it is ready.
More products in this product group:
| Application | To measure various electrical parameters in field or workshop environments. the True RMS digital multimeter designed for industrial and residential electrical troubleshooting. It measures AC/DC voltage, current, resistance, capacitance, frequency and temperature. |
| CAT-Rating | CATII 1000V, CATIII 600V, CATIV 300V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Temp probe, TBMTEMPPROBE, test leads |
| Description | Multimeter Digital 6000 count |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM252-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM252 |
| Power Supply | x2 1.5V AAA Battery |
| Product Family | TBM252 |
| Product Group | Digital Multimeter |
| Type | TBM252 |
| AC Current (+Accuracy) | 600µA/ 6000µA/ 60mA/ 600mA/ 6/ 8A (±1.0% + 3 Digit) |
| AC Voltage (+Accuracy) | 60mV/ 600mV/ 6/ 60/ 600/ 1000V (±1.0% + 5 Digit) |
| Capacitance (+Accuracy) | 60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 3000µF (±1.5% + 5 Digit) |
| DC Current (+Accuracy) | 600µA/ 6000µA/ 60mA/ 600mA/ 6/ 8A (±0.5% + 3Digit) |
| DC Voltage (+Accuracy) | 60mV/ 600mV/ 6/ 60/ 600/ 1000V (±0.2% + 3 Digit) |
| Frequency (+Accuracy) | 5Hz - 1MHz (±0.003% + 2 Digit) |
| Height (H) | 50mm |
| Length (L) | 161mm |
| Resistance (+Accuracy) | 600/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ (±0.5% + 4 Digit) |
| Temperature Measuring Range (+Accuracy) | -50 to + 1000°C |
| Width (W) | 80mm |
Feature
[AC Current (A)]
Parameter
[600µA/ 6000µA/ 60mA/ 6/ 8 A]
Accuracy
[±1.0% + 3 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 3000 µF]
Accuracy
[±1.5 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600µA/ 6000µA/ 60mA/ 600mA/ 6/8 A]
Accuracy
[±0.5% + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V]
Accuracy
[±0.2 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3]
Accuracy
[6000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5 Hz - 1MHz]
Accuracy
[±0.003% + 2 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ]
Accuracy
[±0.5 % + 4 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
600µA/ 6000µA/ 60mA/ 6/ 8 A |
±1.0% + 3 Digit(s) |
|
AC Voltage (V) |
60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V |
±1.0 % + 5 Digit(s) |
|
Capacitance (F) |
60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 3000 µF |
±1.5 % + 5 Digit(s) |
|
DC Current (A) |
600µA/ 6000µA/ 60mA/ 600mA/ 6/8 A |
±0.5% + 3 Digit(s) |
|
DC Voltage (V) |
60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V |
±0.2 % + 3 Digit(s) |
|
Display |
3 |
6000 Counts |
|
Frequency (Hz) |
5 Hz - 1MHz |
±0.003% + 2 Digit(s) |
|
Resistance (Ω) |
600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ |
±0.5 % + 4 Digit(s) |
