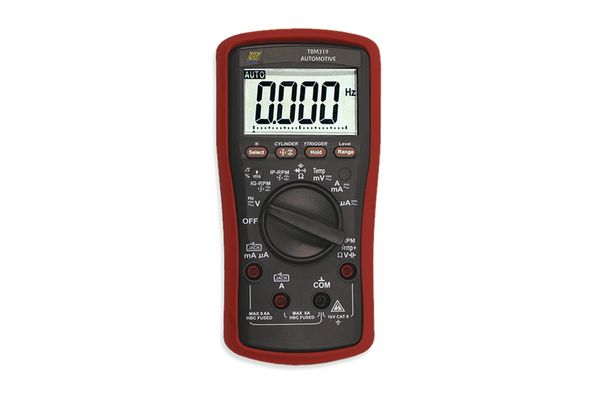

Automotive Digital Multimeter for automotive industry.
Art.-No. 911-00020
| TBM319-MET/PL-BK/RD
|
Copied
- Splash/Drop proof
- 1000V AC/DC
- Selectable 4-stroke / 2-stroke
- Sensitivity on RPM / Dwell
- Fuel injection detector
- Selectable 1 to 12 cylinders
- Backlit
- Bar-graph
- Temperature
- Beep guard
- Auto Range
Show more
Show less
More products in this product group:
| Application | Is a digital multimeter for the automotive industry. it combines standard electrical troubleshooting features with specialized functions for diagnosing hybrid and conventional vehicles |
| CAT-Rating | CATII 1000V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Temp probe, Banana plug, TBMTEMPPROBE, inductive pickup clip |
| Description | Multimeter Digital Automotive |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM319-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM319 |
| Power Supply | 2X 1.5V Batteries |
| Product Family | TBM319 |
| Product Group | Digital Multimeters |
| Type | TBM319 |
| Height (H) | 50mm |
| Length (L) | 160mm |
| Temperature Measuring Range (+Accuracy) | -50 to + 1000°C |
| Width (W) | 80mm |
Feature
[AC Current (A)]
Parameter
[600µA/ 6000µA/ 60mA/ 600mA/ 6/ 10 A]
Accuracy
[±2.2% + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V]
Accuracy
[±2.0 % + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[6µF/ 60µF/ 600µF/ 2000 µF]
Accuracy
[±2.0 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600µA/ 6000µA/ 60mA/ 600mA/ 6/ 10 A]
Accuracy
[±0.7% + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V]
Accuracy
[±0.4 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz - 1 kHz]
Accuracy
[±0.1 % + 3 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6MΩ/ 60 MΩ]
Accuracy
[±0.5% + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
600µA/ 6000µA/ 60mA/ 600mA/ 6/ 10 A |
±2.2% + 5 Digit(s) |
|
AC Voltage (V) |
60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V |
±2.0 % + 5 Digit(s) |
|
Capacitance (F) |
6µF/ 60µF/ 600µF/ 2000 µF |
±2.0 % + 5 Digit(s) |
|
DC Current (A) |
600µA/ 6000µA/ 60mA/ 600mA/ 6/ 10 A |
±0.7% + 3 Digit(s) |
|
DC Voltage (V) |
60 mV/ 600 mV/ 6/ 60/ 600/ 1000 V |
±0.4 % + 3 Digit(s) |
|
Display |
3 Digit(s) |
6000 Counts |
|
Frequency (Hz) |
10 Hz - 1 kHz |
±0.1 % + 3 Digit(s) |
|
Resistance (Ω) |
600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6MΩ/ 60 MΩ |
±0.5% + 5 Digit(s) |
