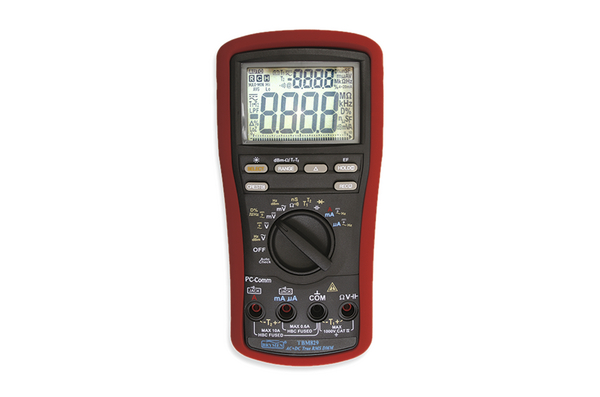

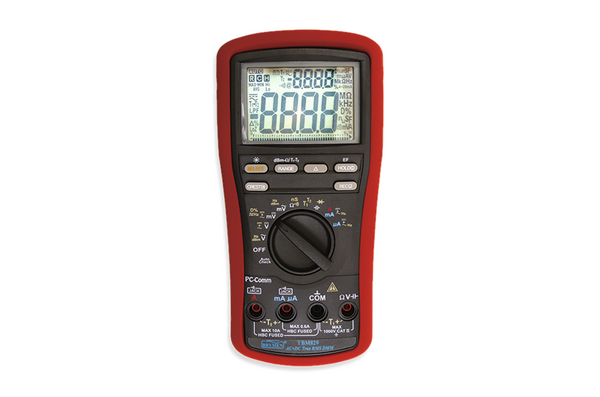

Digital multimeter
Art.-No. 911-00012
| TBM829-MET/PL-BK/RD
|
Copied
- Splash/Drop proof
- 1000V AC/DC
- USB interface
- Dual display
- Backlit
- Non-contact EF
- Auto check
- Dual temperature
- Crest (Peak-hold)
- Auto Range
Show more
Show less
More products in this product group:
| CAT-Rating | CATIII 1000V |
| Colour | Black (BK), Red (RD) |
| Content Accessories | TBMTEMPPROBE |
| Description | Multimeter Dual Display TRMS |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM829-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM829 |
| Power Supply | 1x 9V Battery |
| Product Family | Multimeter Dual Display TRMS |
| Product Group | TBM829 |
| Type | TBM829 |
| Typical Application | To measure AC/DC voltage (up to 1000V) current, resistance, capacitance, frequency, temperature and for testing continuity and diodes. |
| Height (H) | 64mm |
| Length (L) | 208mm |
| Temperature Measuring Range (+Accuracy) | -50°C to 1000°C (0.3% + 2°C) |
| Width (W) | 103mm |
Feature
[AC Current (A)]
Parameter
[600µ/ 6000µ/ 60mA/ 600mA/ 6/ 10 A]
Accuracy
[1.0 % + 4 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60mV/ 600mV/ 6/ 600/ 1000 V]
Accuracy
[2.0 % + 3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[60nF/ 600nF/6µ/ 60µ/ 600µ/ 20mF]
Accuracy
[5.0 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[600µ/ 6000µ/ 60mA/ 600mA/ 6A/ 10 A]
Accuracy
[0.2 % + 4 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60mV/ 600mV/ 6/ 600/ 1000 V]
Accuracy
[0.08 % + 2 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[10 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[5Hz/ 1MHz]
Accuracy
[0.004 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[0.1Ω/ 60 MΩ]
Accuracy
[1.5 % + 5 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
600µ/ 6000µ/ 60mA/ 600mA/ 6/ 10 A |
1.0 % + 4 Digit(s) |
|
AC Voltage (V) |
60mV/ 600mV/ 6/ 600/ 1000 V |
2.0 % + 3 Digit(s) |
|
Capacitance (F) |
60nF/ 600nF/6µ/ 60µ/ 600µ/ 20mF |
5.0 % + 5 Digit(s) |
|
DC Current (A) |
600µ/ 6000µ/ 60mA/ 600mA/ 6A/ 10 A |
0.2 % + 4 Digit(s) |
|
DC Voltage (V) |
60mV/ 600mV/ 6/ 600/ 1000 V |
0.08 % + 2 Digit(s) |
|
Display |
3 Digit(s) |
10 000 Counts |
|
Frequency (Hz) |
5Hz/ 1MHz |
0.004 % + 4 Digit(s) |
|
Resistance (Ω) |
0.1Ω/ 60 MΩ |
1.5 % + 5 Digit(s) |
