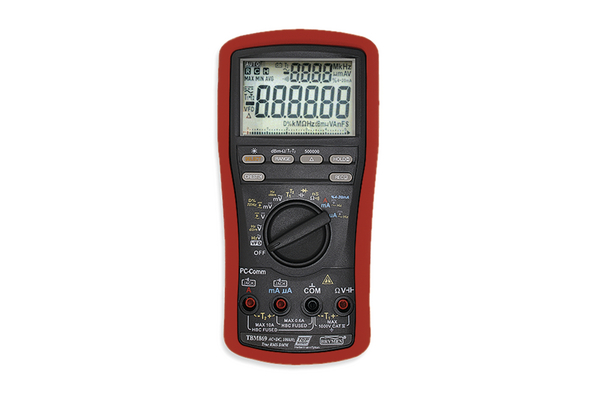

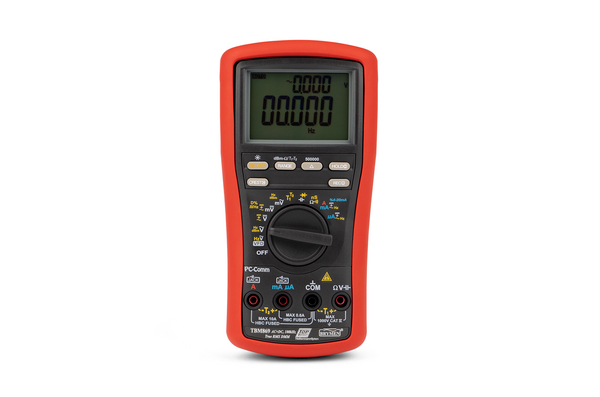

Digital Multimeter for electrical and electronic applications
Art.-No. 911-00014
| TBM869-MET/PL-BK/RD
|
Copied
- USB Interface
- 500 000 Count display
- 100 kHz Bandwidth
- Dual temperature
- Probe input warning
- Backlight
- Crest mode
- Duty cycle
- Dual display
- Auto Range
Show more
Show less
More products in this product group:
| Application | Used for troubleshooting complex systems in demanding environments, such as mining and construction |
| CAT-Rating | CATIV 1000V |
| Colour | Black (BK), Red (RD) |

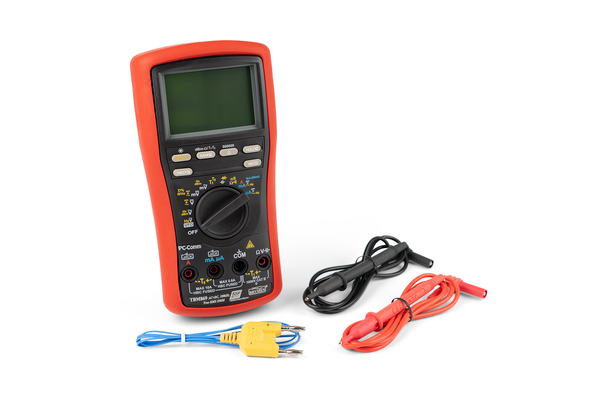

| Content Accessories | K-Type Temp Probe TBMTEMPPROBE, Test leads holster, USB Cable and Software TBU86X |
| Description | Multimeter Dual Display Temp |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM869-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM869 |
| Power Supply | 1x 9V Battery |
| Product Family | TBM869 |
| Product Group | Digital Multimeters |
| Type | TBM869 |
| Height (H) | 64mm |
| Length (L) | 208mm |
| Temperature Measuring Range (+Accuracy) | -50 to +1000°C (±0.3% + 1.5°C |
| Width (W) | 103mm |
Feature
[AC Current (A)]
Parameter
[500µA/ 5000µA/ 50mA/ 5000mA/ 5/ 10 A]
Accuracy
[±0.5 % + 50 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[500 mV/ 5/ 50/ 500/ 1000 V]
Accuracy
[±1.2 % + 40 Digit(s) (20hz-45hz)]
Feature
[Capacitance (F)]
Parameter
[50nF/ 500nF/ 5µ/ 500µ/ 25mF]
Accuracy
[±0.8 % + 3 Digit(s)]
Feature
[DC Current (A)]
Parameter
[500µA/ 5000µA/ 50mA/ 5/ 10 A]
Accuracy
[±0.15 % + 20 Digit(s) (05% + 50 Digit at 500µA)]
Feature
[DC Voltage (V)]
Parameter
[500mV/ 5/ 50/ 500/ 1000 V]
Accuracy
[±0.2 % + 2 Digit(s)]
Feature
[Display]
Parameter
[5 Digit(s)]
Accuracy
[500 000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10Hz/ 3 kHz]
Accuracy
[±0.02 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[500/ 5kΩ/ 50kΩ/ 500kΩ/ 5MΩ/ 50 MΩ]
Accuracy
[±0.07 % + 10 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
500µA/ 5000µA/ 50mA/ 5000mA/ 5/ 10 A |
±0.5 % + 50 Digit(s) |
|
AC Voltage (V) |
500 mV/ 5/ 50/ 500/ 1000 V |
±1.2 % + 40 Digit(s) (20hz-45hz) |
|
Capacitance (F) |
50nF/ 500nF/ 5µ/ 500µ/ 25mF |
±0.8 % + 3 Digit(s) |
|
DC Current (A) |
500µA/ 5000µA/ 50mA/ 5/ 10 A |
±0.15 % + 20 Digit(s) (05% + 50 Digit at 500µA) |
|
DC Voltage (V) |
500mV/ 5/ 50/ 500/ 1000 V |
±0.2 % + 2 Digit(s) |
|
Display |
5 Digit(s) |
500 000 Counts |
|
Frequency (Hz) |
10Hz/ 3 kHz |
±0.02 % + 4 Digit(s) |
|
Resistance (Ω) |
500/ 5kΩ/ 50kΩ/ 500kΩ/ 5MΩ/ 50 MΩ |
±0.07 % + 10 Digit(s) |
