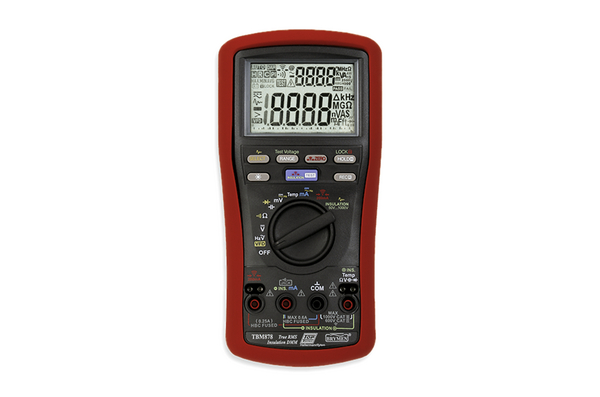

True RMS digital multimeter with the added functionality of an insulation tester and earth continuity tester combined into a single handheld unit.
Art.-No. 911-00021
| TBM878-MET/PL-BK/RD
Copied
- Insulation resistance 50, 100, 250, 500, 1000V
- 3 -5/6 Digits 6000 Counts
- Earth bond resistance
- VFD AC Voltage
- Relative zero
- Backlit
- Bar-graph
- Beep guard
- Diode
- Auto Range
More products in this product group:

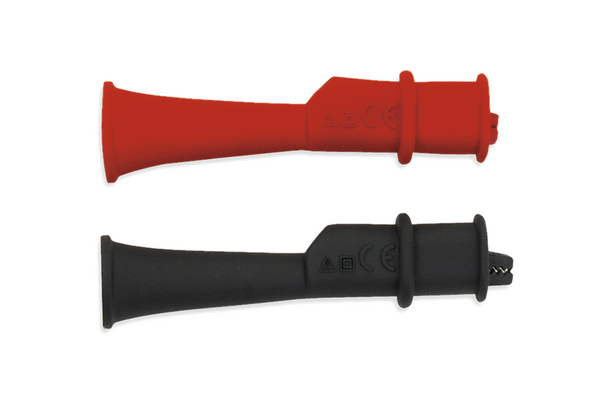

TBM878CLIP
911-01862
TBM878 Accessories
911-01863

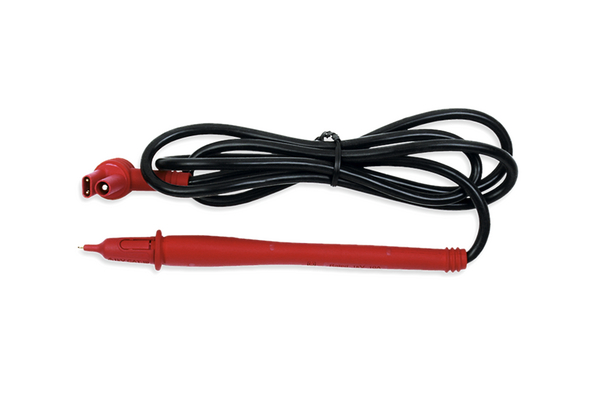

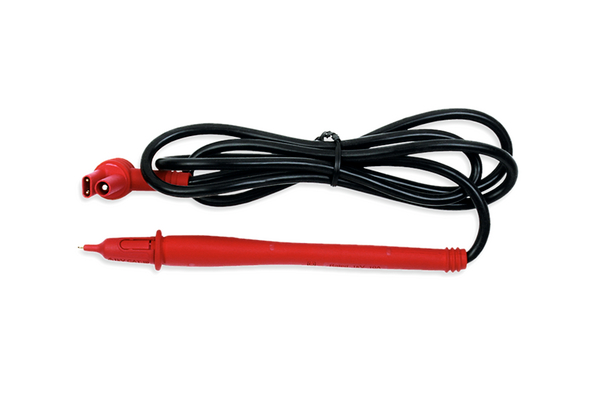

TBM878PROBE
911-01864

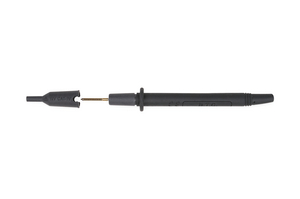

TBM878TIPS
911-01865| Application | CoC Testing, Installation Commissioning, Cable Testing, Appliance Testing, Industrial Automation, Quality Control, Specification Testing, Troubleshooting, Preventative Maintenance |
| Colour | Black (BK), Red (RD) |
| Content Accessories | Industrial test probe |
| Description | DMM Insulation Combination |
| Digits in display | 3 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM878-MET/PL-BK/RD |
| Package Content packed in | box |
| Part No. | TBM878 |
| Power Supply | 4 x 1.5V AA Batteries |
| Product Family | TBM878 |
| Product Group | Insulation/Combination Digital Multimeter |
| Type | TBM878 |
| AC Current (+Accuracy) | 60mA, 400mA (1.5% + 3 Digit) |
| AC Voltage (+Accuracy) | 60mV, 600mV, 6, 600, 1000V (2.0% + 3 Digit) |
| Capacitance (+Accuracy) | 3μ, 30μ, 300μ, 3000μF, 30mF (10% + 5 Digit) |
| DC Current (+Accuracy) | 60mA, 400mA (0.4% + 3 Digit) |
| DC Voltage (+Accuracy) | 60mV, 600mV, 6, 600, 1000V (0.09% + 3 Digit) |
| Frequency (+Accuracy) | 10Hz - 5KHz (0.02% + 4 Digit) |
| Height (H) | 64mm |
| Length (L) | 208mm |
| Resistance (+Accuracy) | 600, 6k, 60k, 600k, 6M, 60MΩ (1.5% + 3 Digit) |
| Temperature Measuring Range (+Accuracy) | -50ºC to 1000ºC (9% + 2.0ºC) |
| Width (W) | 103mm |
Feature
[AC Current (A)]
Parameter
[60 mA/ 600 mA]
Accuracy
[±1.5 % + 3 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 600/ 1000 V]
Accuracy
[±2.0 % + 3 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[3µF/ 30µF/ 300µF/ 3000µF/ 30mF]
Accuracy
[±1.5 % + 5 Digit(s)]
Feature
[DC Current (A)]
Parameter
[60 mA/ 600 mA]
Accuracy
[±0.4 % + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[60 mV/ 600 mV/ 6/ 600/ 1000 V]
Accuracy
[±0.09 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[6000 Counts]
Feature
[Frequency (Hz)]
Parameter
[10 Hz/ 5 kHz]
Accuracy
[±0.02 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ]
Accuracy
[±1.5 % + 3 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
60 mA/ 600 mA |
±1.5 % + 3 Digit(s) |
|
AC Voltage (V) |
60 mV/ 600 mV/ 6/ 600/ 1000 V |
±2.0 % + 3 Digit(s) |
|
Capacitance (F) |
3µF/ 30µF/ 300µF/ 3000µF/ 30mF |
±1.5 % + 5 Digit(s) |
|
DC Current (A) |
60 mA/ 600 mA |
±0.4 % + 3 Digit(s) |
|
DC Voltage (V) |
60 mV/ 600 mV/ 6/ 600/ 1000 V |
±0.09 % + 3 Digit(s) |
|
Display |
3 Digit(s) |
6000 Counts |
|
Frequency (Hz) |
10 Hz/ 5 kHz |
±0.02 % + 4 Digit(s) |
|
Resistance (Ω) |
600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ |
±1.5 % + 3 Digit(s) |
