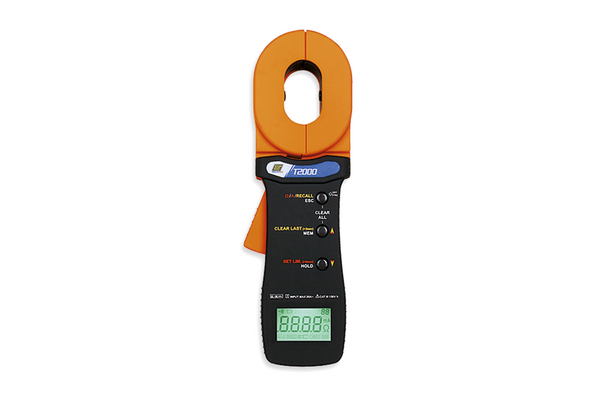

Earth Resistance Clamp
Art.-No. 911-00051 | T2000

More products in this product group:

Application	Measuring earth ground rod resistance and leakage current in grounded systems without disconnecting the system

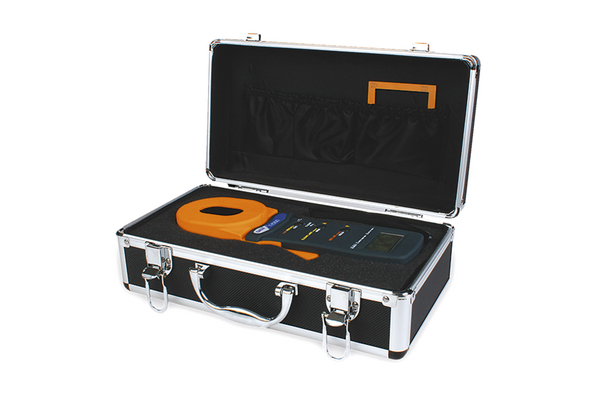

Content Accessories	Resistive test loop, Carry case
Description	Earth Resistance Clamp
PART DESCRIPTION	T2000
Package Content packed in	box
Part No.	T2000
Power Supply	4x 1.5V AAA Batteries
Product Family	T2000
Product Group	Earth Resistance Clamps
Type	T2000

DC Current (+Accuracy)	0.00 A - 80 mA (±2.5 % + 1 mA), 80 mA - 650 mA (±2.5 % + 2 mA), 650 mA - 999.5 mA (±2.5 % + 0.003 A), 1.000 mA - 3.995 mA (±2.5 % + 0.01A), 4.00 A - 20.00 mA (±2.5 % + 0.05 A)
Height (H)	66mm
Length (L)	293mm
Resistance (+Accuracy)	0.01 Ω - 0.999 Ω (± 1.0 % + 0.01 Ω), 0.10 Ω - 0.99 Ω (± 1.0 % + 0.01 Ω), 1 Ω - 49.9 Ω (± 1.5 % + 0.1 Ω), 50.0 Ω - 99.9 Ω ( ± 2.0 % + 0.3 Ω), 100 Ω - 199.9 Ω (± 3.0 % + 1 Ω), 200 Ω - 395 Ω ( ± 6.0 % + 5 Ω), 400 Ω - 590 Ω (± 10 % + 10 Ω), 600 Ω - 1000 Ω (± 20 % + 20 Ω)
Width (W)	90mm

Feature

[AC Current (A)]

Parameter

[OA-80 mA, 80 - 65 mA, 650 - 999.5 mA, 1-3.995 mA, 4 - 20 mA]

Accuracy

[±2.5% + 1mA, ±2.5% + 20mA, ±2.5% + 0.003A, ±2.5% + 0.01A, ±2.5% + 0.05A]

Feature

[Resistance (Ω)]

Parameter

[0.01Ω - 0.999 Ω, 0.1Ω - 0.99 Ω, 1Ω - 49.9 Ω, 5Ω - 99.9 Ω, 100Ω - 199.9 Ω, 200Ω - 395 Ω, 400Ω - 590 Ω, 600Ω - 1000 Ω]

Accuracy

[±1.0% + 0.01Ω, ±1.0% + 0.01, ±1.5% + 0.1Ω, ±2.0% + 0.3Ω, ±3.0% + 1Ω, ±6.0% + 5Ω, ±10% + 10Ω, ±20% + 20Ω]

Feature	Parameter	Accuracy
AC Current (A)	OA-80 mA 80 - 65 mA 650 - 999.5 mA 1-3.995 mA 4 - 20 mA	±2.5% + 1mA ±2.5% + 20mA ±2.5% + 0.003A ±2.5% + 0.01A ±2.5% + 0.05A
Resistance (Ω)	0.01Ω - 0.999 Ω 0.1Ω - 0.99 Ω 1Ω - 49.9 Ω 5Ω - 99.9 Ω 100Ω - 199.9 Ω 200Ω - 395 Ω 400Ω - 590 Ω 600Ω - 1000 Ω	±1.0% + 0.01Ω ±1.0% + 0.01 ±1.5% + 0.1Ω ±2.0% + 0.3Ω ±3.0% + 1Ω ±6.0% + 5Ω ±10% + 10Ω ±20% + 20Ω

Shelf Life

12 months

GTIN-13 / EAN

6005242061608
