SM1BK-PVC-BK


Art.-No. 911-01928

| SM1BK-PVC-BK

 |

Copied
EdgeGuard protection against sharp panel edges.

    • Very flexible
    • Easy to apply
    • Protects cables from chafing on bulkheads
    • Operating Temperature -65°C to +105°C
    Downloads
    Colour Black (BK)
    Description PVC Beading strip is used to protect cables routed through sharp-edged cutout sections. It can also be used to provide an attractive finish to panel edges.
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SM1BK-PVC-BK
    Part No. SM1BK
    Type SM1BK

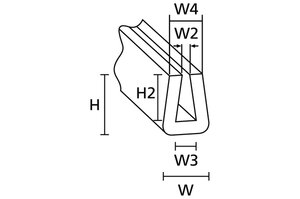

    Height (H) 6.3mm
    Height (H2) 4.9mm
    Width (W) 1.2mm
    Width (W2) 1.0mm
    Width (W3) 1.8mm
    Width (W4) 4.2mm
    Flammability UL 94 HB
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242013478
