Unloaded MDU S3
Art.-No. 857-01480 | MDU-S3 Details

  • 7 Input/Output Ports
  • Horizontal/Vertical Lay Through Capability
  • Suitable for use with 250µm IR Systems
  • Inset position for Customer Logo
  • IP54/IK08
  • UV Stable
  • V0 Rating
Show more
Application Desigined for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Pont (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Colour Grey RAL 7035 (RAL7035)

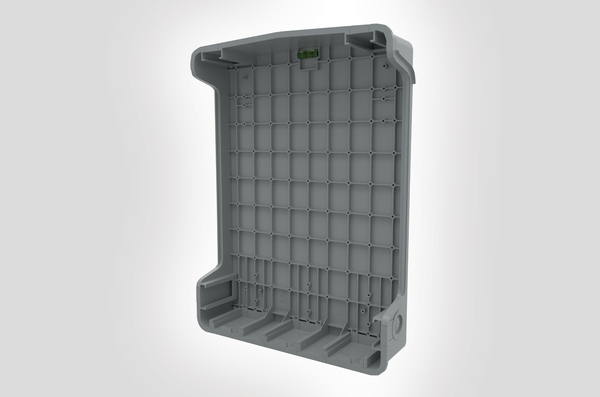

Content S3 Enclosure
3 x Entry/Exit Port Blanks
In-built spirit level
Fibre Picker
Wall Mounting Kit
Material Acrylonitrile Butadiene Styrene (ABS)
Pack Cont. 1pc.
Package Content packed in EA
PART DESCRIPTION MDU-S3
Port count 7
Product Family Fibre Optic External/Internal Enclosure
Product Group S3 Series MDU/MBU Enclosures

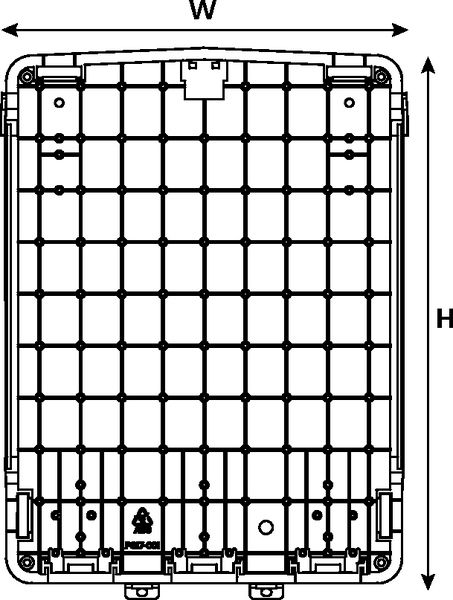

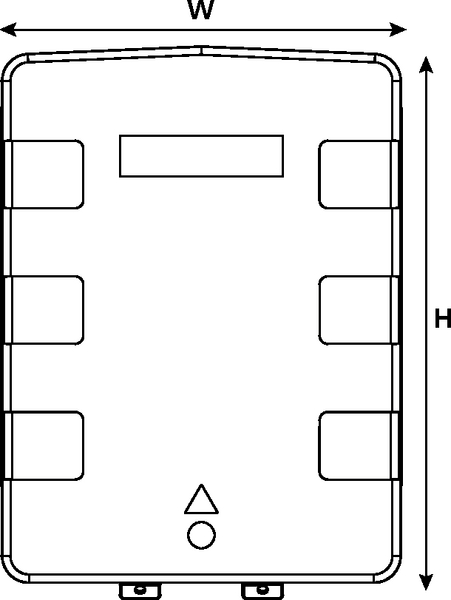

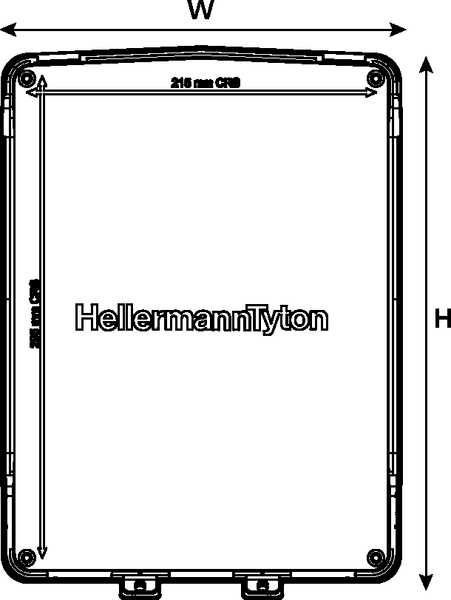

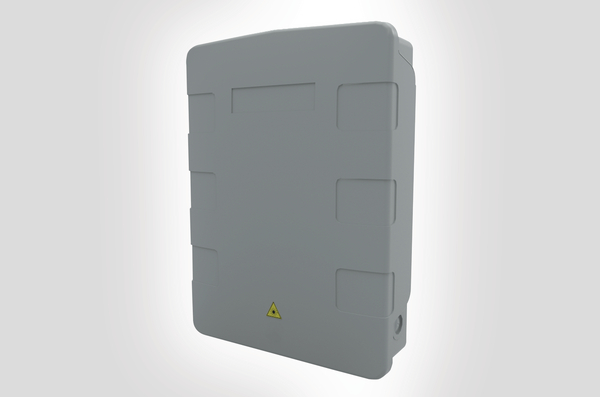

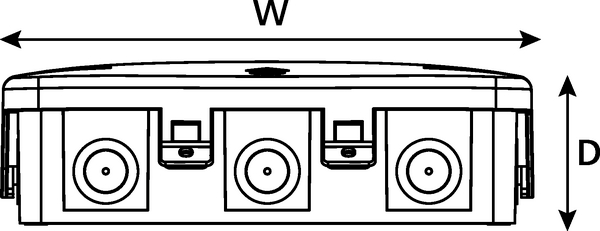

Technical Description A 340 x 247 x 76mm (H x W x D) enclosure manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene). The enclosure is UV stable with an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a single 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Variant Indoor/Outdoor FTTx Enclosures
Depth (D) 76mm
Height (H) 340mm
Width (W) 247mm
