Edge protection for cut-out sections : G51PD

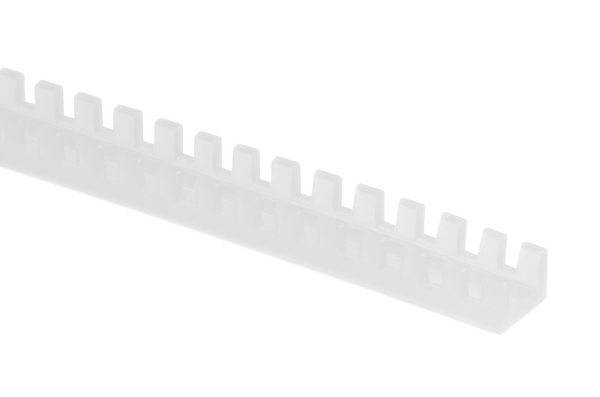

Edge protection polyethylene transparent 3.3-5.0 mmArticle number: 251-10409
Features
- Very flexible
- Easily and securely applied without adhesives
- Provides effective, orderly-looking protection
- Flexiform G51P made of polyethylene offers general purpose edge protection
- Flexiform G51N made of PA6 offers very good abrasion resistance
- Flexiform G51T made of PTFE offers excellent resistance to high temperatures and most chemicals
Certifications & Approvals
Application

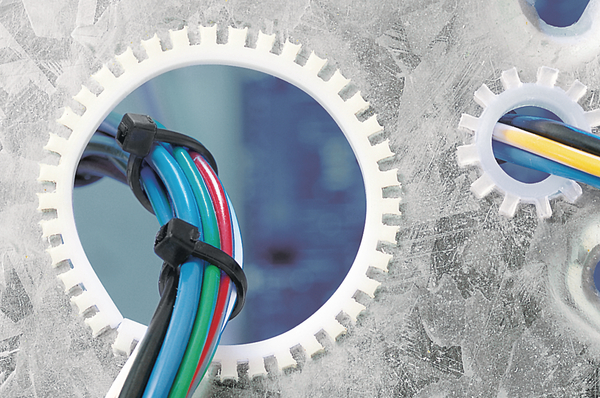

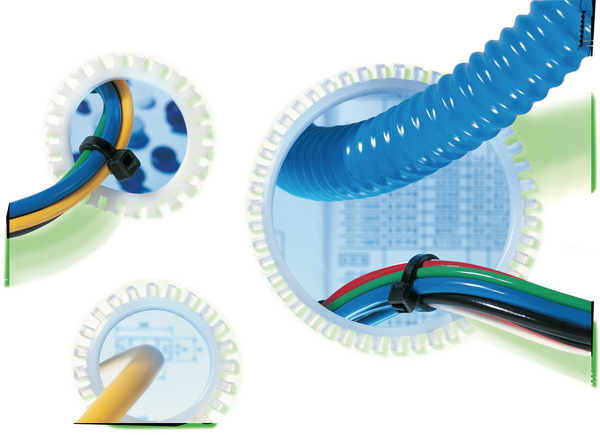

Flexiform edge protection is used to protect cables and wires routed through sharp-edged cut-out sections.
More products in this product group
Edge protection for cut-out sections >| Colour | Natural (NA) |
| Pack Cont. | 25m |
| Package Quantity per | reel |
| PART DESCRIPTION | G51PD-PE-NA |
| Part No. | G51PDNT |
| Product Family | Flexiform G51P PE grommet strip |
| Product Group | Edge protection for cut-out sections |
| Variant | Open |
|
|
|
| for Panel Thickness min - max | 3.3 - 4.8 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
| Height (H) | 6.2mm |
| Height (H2) | 4.3mm |
| Panel Thickness max. (imperial) | 0.189" |
| Panel Thickness min. (imperial) | 0.13" |
| Width (W) | 8.4mm |
| Width (W2) | 5.1mm |
| Width (W2) | 0.201" |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyethylene (PE) |
| Material | PE |
| Nato number | 5325-99-625-3105, 9390-12-381-1400 |
| Operating Temperature - °C | -30 °C to +80 °C |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN-13 | 5022660006272 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00583m³ |
| Packaging 1 - Weight (kg) | 0.573kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 2 - Height (m) | 0.095m |
| Packaging 2 - Length (m) | 0.28m |
| Packaging 2 - Qty | 25 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0073m³ |
| Packaging 2 - Weight (kg) | 1.073kg |
| Packaging 2 - Width (m) | 0.275m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 138.72kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 9.7ft |
| Weight | 0.573kg |
| UNSPSC Key | 39131603 |
